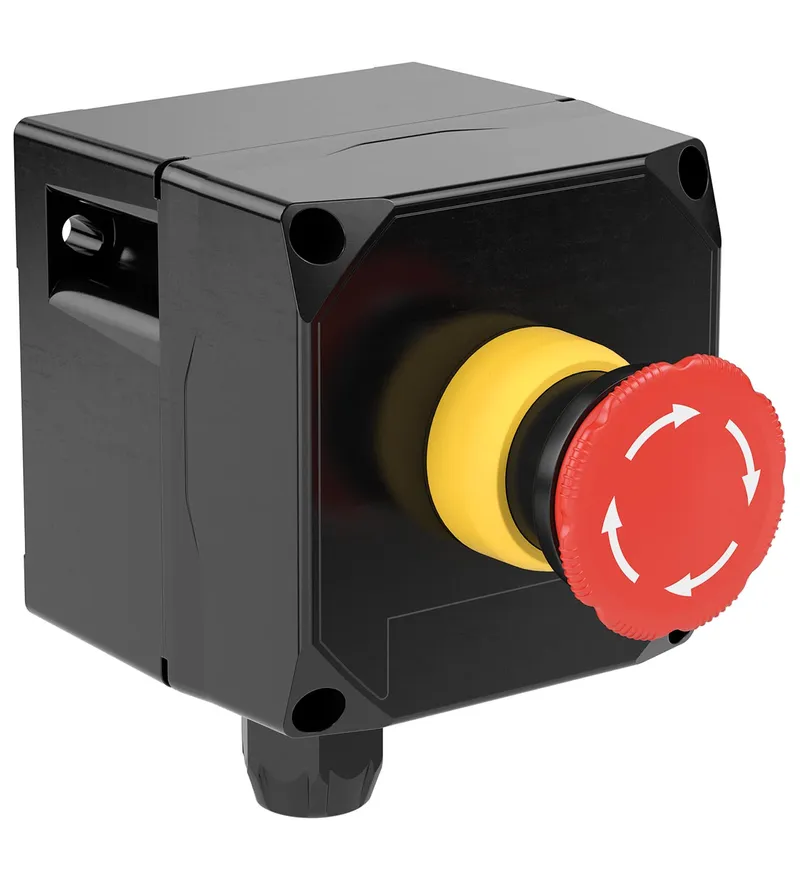

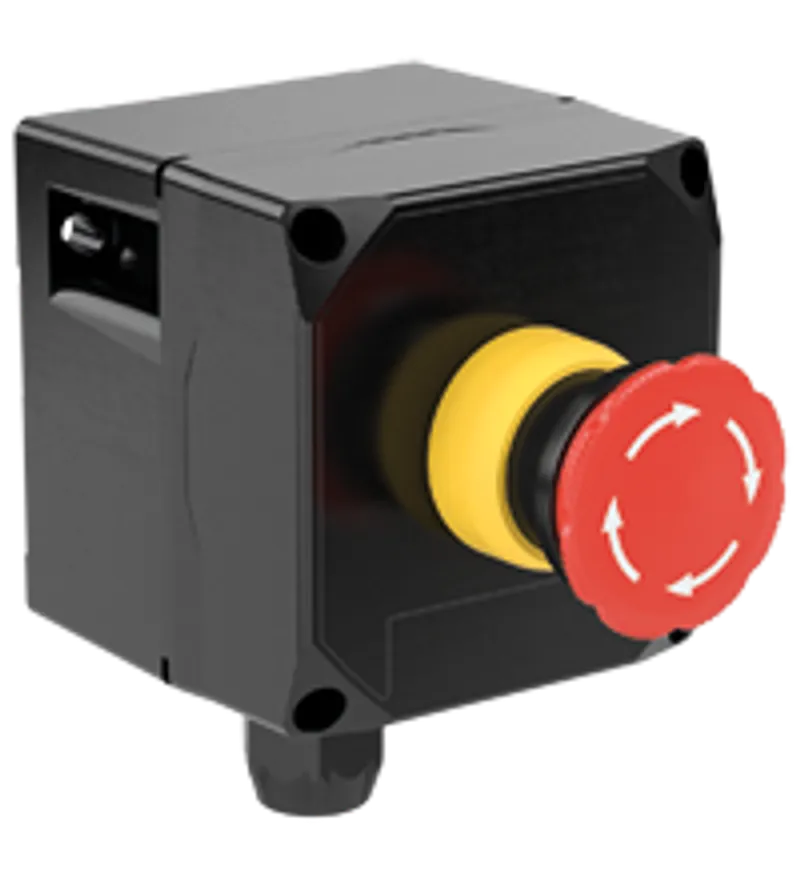

What is the Pepperl Fuchs LRP1.D.E4CX.E.1?
Emergency stop mushroom button 40 mm, red, twist-to-release - 2x NC
Polyamide (PA) enclosure
Ex db eb and Ex tb certified
Installation in Zone 1, Zone 2, Zone 21 and Zone 22
Degree of protection IP66
Top face stopping plug polyamide, 1x M20; bottom face cable gland polyamide, 1x M20
Emergency stop mushroom button 40 mm, red, twist-to-release - 2x NC, Polyamide (PA) enclosure, Ex db eb and Ex tb certified, Installation in Zone 1, Zone 2, Zone 21 and Zone 22, Degree of protection IP66, Top face stopping plug polyamide, 1x M20; bottom face cable gland polyamide, 1x M20, Function: mushroom button, Ambient temperature: -40 ... 55 °C (-40 ... 131 °F) @ T4 , -40 ... 40 °C (-40 ... 104 °F) @ T6, Enclosure: Polyamide (PA)
Specifications
Electrical specifications
| Order code (Pepperl+Fuchs part number) | 70160114 |
| Operating voltage | 250 V max. |
| Operating current | 13 A max. |
| Terminal capacity | 2.5 mm2 |
| Terminal torque | 0.8 Nm |
| Function | mushroom button |
| Color | red |
| Contact configuration | 2x NC all NC contacts have a direct opening action for emergency stop functions |
| Usage category | AC12 - 12 … 250 V AC - 13 A AC15 - 12 … 250 V AC - 10 A DC13 - 12 … 110 V DC - 1 A |
| Number of poles | 2 |
| Operator action | latching , twist to release |
| Labeling | none as standard |
| Lifecycle | Active (current Pepperl+Fuchs product) |
Mechanical specifications
| Enclosure range | LRP |
| Enclosure cover | fully detachable |
| Cover fixing: Screws | M4 stainless steel combination Phillips and slotted screw |
| Cover fixing: Number | 4 |
| Cover fixing: Tightening torque | 1.5 Nm |
| Degree of protection | IP66 |
| Cable entry | thru-holes |
| Cable entry face A: M20 quantity | 1 |
| Cable entry face A: M20 series | Stopping Plug |
| Cable entry face A: M20 type | SP.PE.M20.* |
| Cable entry face B: M20 quantity | 1 |
| Cable entry face B: M20 series | Cable Glands, Plastic |
| Cable entry face B: M20 type | CG.PEDS1.M20.* |
| Cable entry face B: M20 clamping range | 6 ... 12 mm |
| Defined entry area | face A and face B |
| Material: Enclosure | Polyamide (PA) |
| Material: Finish | inherent color black |
| Material: Seal | one piece closed cell silicone |
| Mass | approx. 0.47 kg |
| Dimensions: External dimension (A) | 90 mm |
| Dimensions: External dimension (B) | 88 mm |
| Dimensions: External dimension (C) | 85 mm |
| Dimensions: External dimension with operating element (C1) | 125.35 mm |
| Dimensions: Mounting holes distance (G) | 50 mm |
| Dimensions: Mounting holes distance (H) | 72.5 mm |
| Dimensions: Mounting holes diameter (J) | 5.6 mm |
| Tightening torque: Nut torque at enclosure (SW1) | see datasheets of cable glands |
| Mounting | 2 screws |
| Grounding | 2x 2.5mm² grounding terminal |
Ambient conditions
| Ambient temperature | -40 ... 55 °C (-40 ... 131 °F) @ T4 -40 ... 40 °C (-40 ... 104 °F) @ T6 |
Data for application in connection with hazardous areas
| EU-type examination certificate | CML 16 ATEX 3009X |
| Marking | II 2 GD Ex db eb IIC T* Gb Ex tb IIIC T** °C Db T4/T130 °C @ Ta +55 °C ( T6/T80 °C @ Ta +40 °C on request ) |
International approvals
| IECEx approval | IECEx CML 16.0008X |
| UKCA approval | CML 22 UKEX 2550X |
| Further approvals | further on request |
Conformity
| Degree of protection | EN60529 |
| Usage category | IEC / EN 60947 |
| CE marking | 0080 or 0102, see type label |
General information
| Order information | This device will be delivered completely configured and assembled ready for use. For configuration details please contact Customer Service. |
| Supplementary information | EC-Type Examination Certificate, Statement of Conformity, Declaration of Conformity, Attestation of Conformity and instructions have to be observed where applicable. For information see www.pepperl-fuchs.com. |
