Control Units (Ex e) Parts
Compare Control Units (Ex e)
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Order code (Pepperl+Fuchs part number) | Function | Dimensions: Actuator head diameter (D2) | Dimensions: Length outside enclosure (H) | Dimensions: Total length (L) |
|---|---|---|---|---|---|

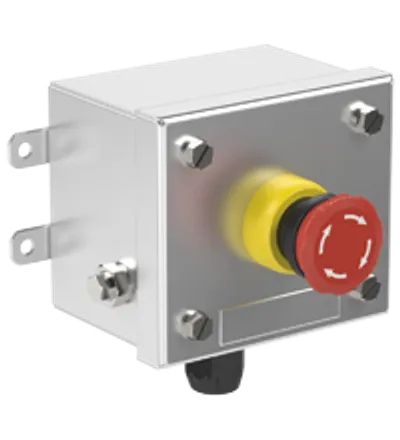

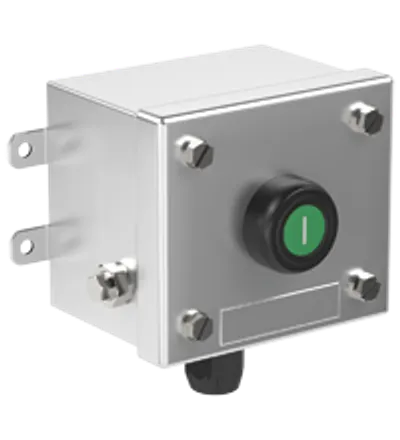

| LRS1.B.E4MX.B.1 | 70142237 | mushroom button | — | — | — |
| LRS1.B.PGMX.B.1 | 70142235 | push button | — | — | — |

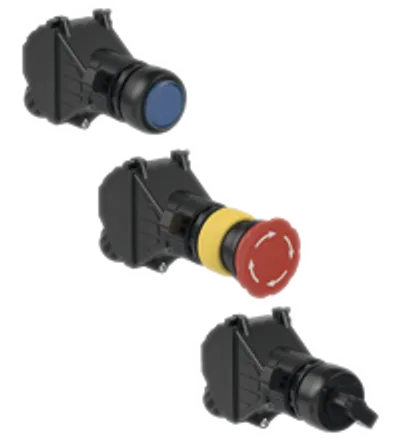

| PM*.*.* | T183422 | see data table | — | — | — |

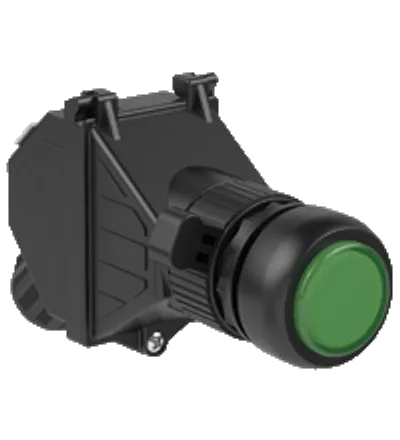

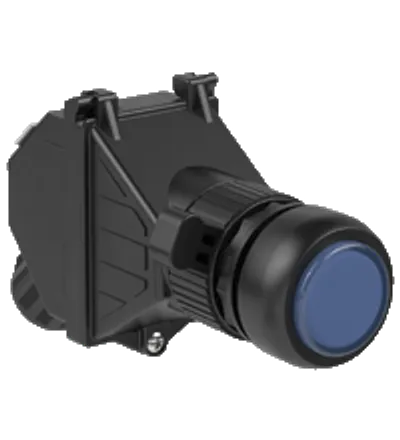

| PML.LB.L.W.2 | 297366 | LED indicator | 39 mm (D2) | 23.6 mm (H) | 136.1 mm (L) |

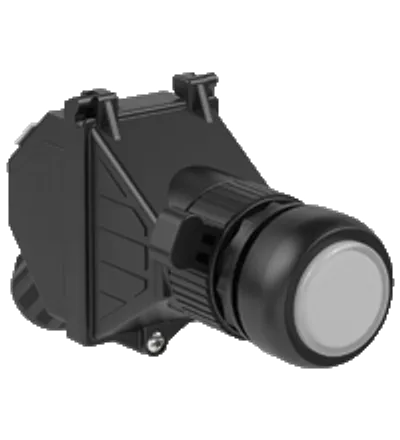

| PML.LW.L.W.2 | 297365 | LED indicator | 39 mm (D2) | 23.6 mm (H) | 136.1 mm (L) |

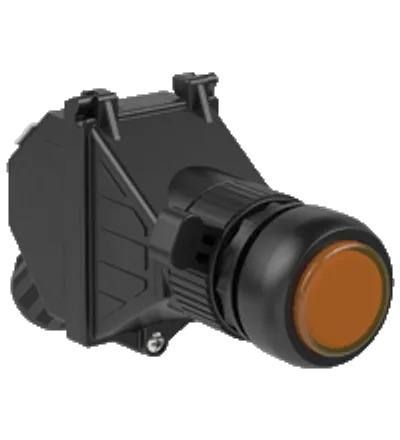

| PML.LO.L.W.2 | 297364 | LED indicator | 39 mm (D2) | 23.6 mm (H) | 136.1 mm (L) |
| PML.LG.L.W.2 | 297363 | LED indicator | 39 mm (D2) | 23.6 mm (H) | 136.1 mm (L) |

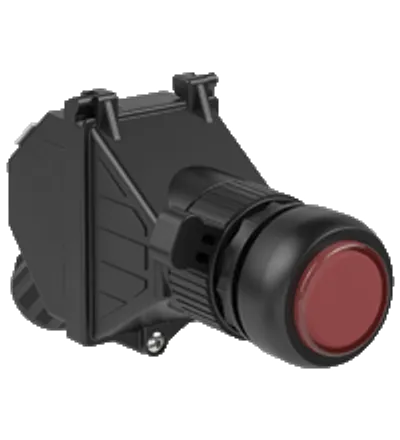

| PML.LR.L.W.2 | 297362 | LED indicator | 39 mm (D2) | 23.6 mm (H) | 136.1 mm (L) |

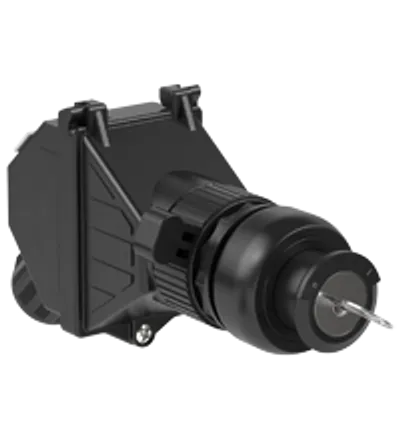

| PMS.K6.C.11 | 297360 | key switch | 39 mm (D2) | 33.3 mm (H) | 145.8 mm (L) |
| PMS.K6.C.20 | 297359 | key switch | 39 mm (D2) | 33.3 mm (H) | 145.8 mm (L) |

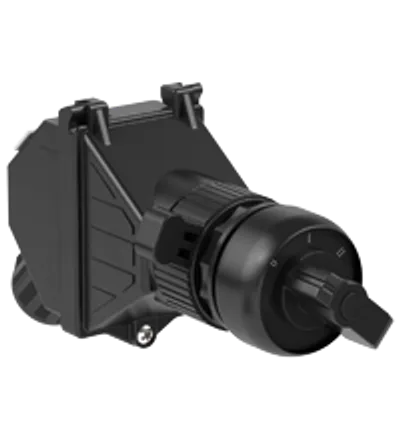

| PMS.N9.C.11 | 297358 | control switch, small | 39 mm (D2) | 30.6 mm (H) | 143.1 mm (L) |

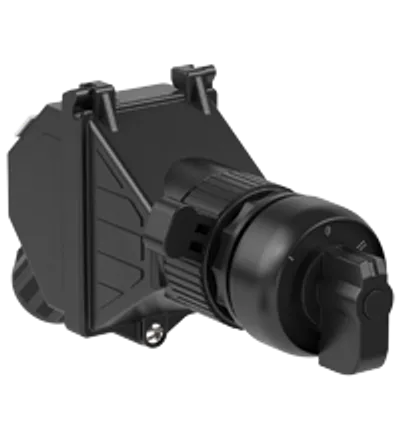

| PMS.N8.C.20 | 297357 | control switch, small | 39 mm | 30.6 mm | 143.1 mm |
| PMS.N7.C.11 | 297356 | control switch, small | 39 mm (D2) | 30.6 mm (H) | 143.1 mm (L) |
| PMS.N6.C.20 | 297355 | control switch, small | 39 mm (D2) | 30.6 mm (H) | 143.1 mm (L) |

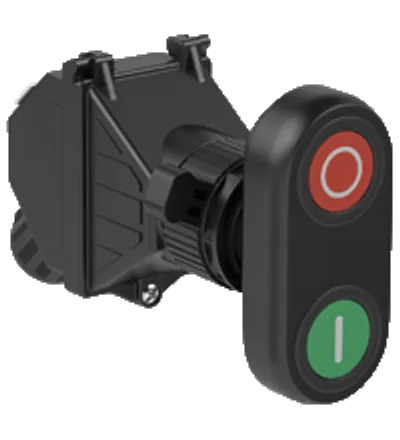

| PMP.DZ3.C.20 | 297350 | double pushbutton | 70 mm x 39 mm | 15.5 mm (H) | 128 mm (L) |
| PMP.DZ3.C.02 | 297349 | double pushbutton | 70 mm x 39 mm | 15.5 mm (H) | 128 mm (L) |
| PMP.DZ3.C.11 | 297348 | double pushbutton | 70 mm x 39 mm | 15.5 mm (H) | 128 mm (L) |
| PMP.PZ1.C.20 | 297341 | push button | 39 mm (D2) | 15.5 mm (H) | 128 mm (L) |
| PMP.PZ1.C.02 | 297340 | push button | 39 mm (D2) | 15.5 mm (H) | 128 mm (L) |

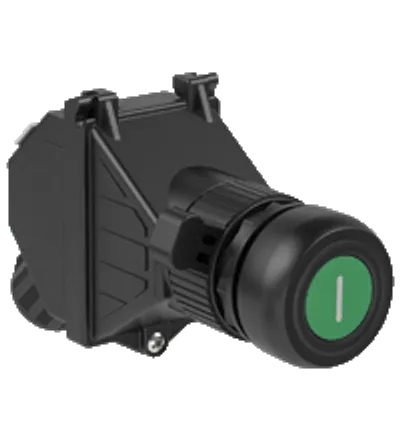

| PMP.PZ1.C.11 | 297339 | push button | 39 mm (D2) | 15.5 mm (H) | 128 mm (L) |

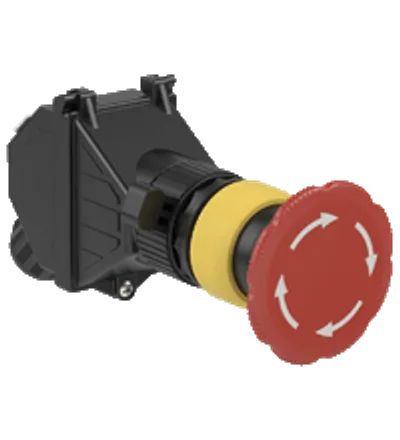

| PMP.E5.C.02 | 297345 | mushroom button 55 mm | 55 mm (D2) | 41.8 mm (H) | 153.7 mm (L) |
| PMP.E5.C.11 | 297344 | mushroom button 55 mm | 55 mm (D2) | 41.8 mm (H) | 153.7 mm (L) |

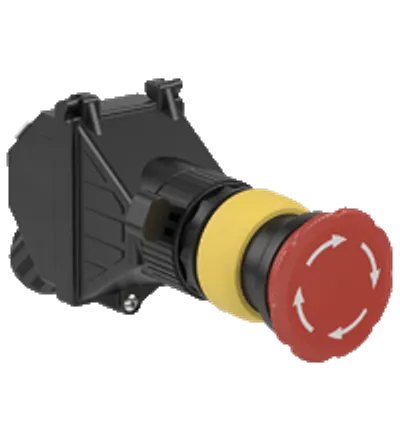

| PMP.E4.C.02 | 297343 | mushroom button 40 mm | 40 mm (D2) | 41.8 mm (H) | 153.7 mm (L) |
| PMI.IG.I.W.01 | 297354 | illuminated pushbutton | 39 mm (D2) | 17.5 mm (H) | 130 mm (L) |
Common to all listed parts
| Operating voltage | 250 V max. |
| Terminal torque | 0.8 Nm |
| Lifecycle | Active (current Pepperl+Fuchs product) |
| Degree of protection | IP66 |
| CE marking | 0080 or 0102, see type label |
