Control Units (Ex e) Parts
Compare Control Units (Ex e)
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Order code (Pepperl+Fuchs part number) | Function | Color | Mass | Dimensions: External dimension with operating element (C1) |
|---|---|---|---|---|---|

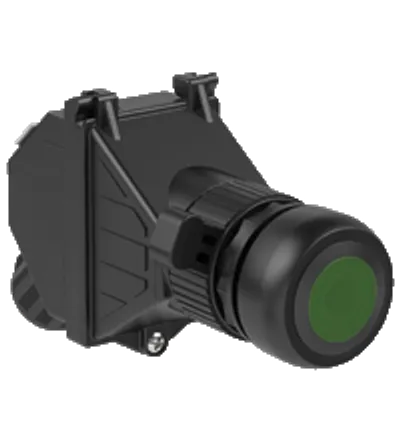

| PMI.IG.I.W.10 | 297353 | illuminated pushbutton | green | 150 g max. | — |

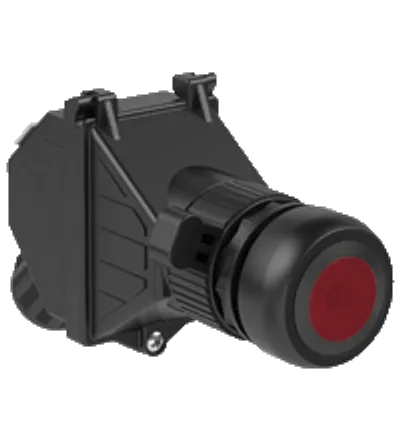

| PMI.IR.I.W.10 | 297351 | illuminated pushbutton | red | 150 g max. | — |

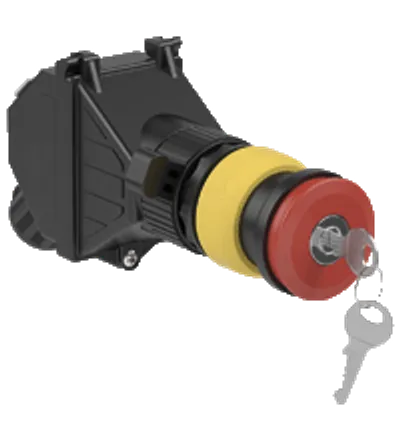

| PMP.JR.C.02 | 297347 | mushroom button | red | 150 g max. | — |
| PMI.IR.I.W.01 | 297352 | illuminated pushbutton | red | 150 g max. | — |
| PMP.JR.C.11 | 297346 | mushroom button | red | 150 g max. | — |

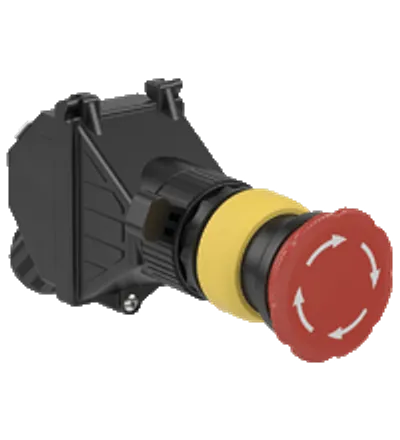

| PMP.E4.C.11 | 297342 | mushroom button 40 mm | red | 150 g max. | — |

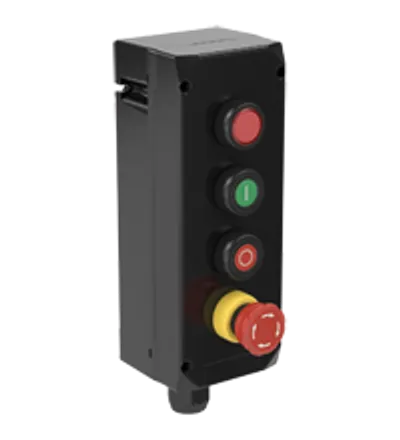

| LRP5L.D.LRLX.PGMX.PRMX.E4MX.C.1 | 70144007 | LED | red | approx. 1.19 kg | 125.4 mm |

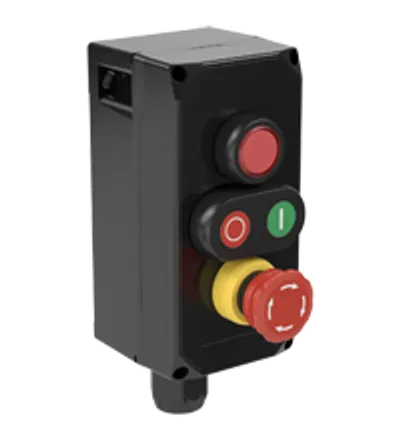

| LRP3.D.LRLX.DMMX.E4MX.C.1 | 70144006 | LED | red | approx. 0.89 kg | 125.4 mm |

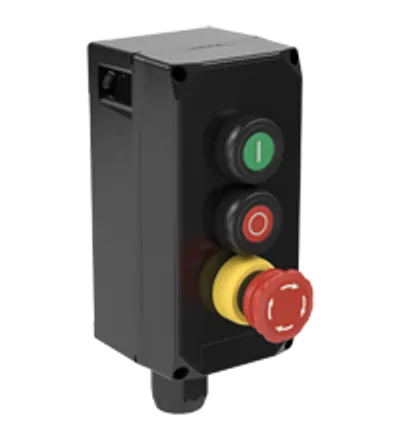

| LRP3.D.PGMX.PRMX.E4MX.C.1 | 70144005 | push button | green | approx. 0.88 kg | 125.4 mm |

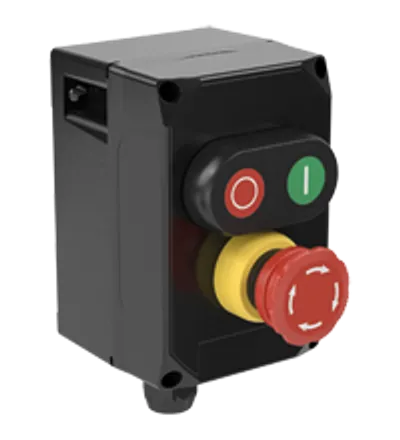

| LRP2.D.DMMX.E4MX.B.1 | 70144004 | double pushbutton | red / green | approx. 0.68 kg | 125.4 mm |

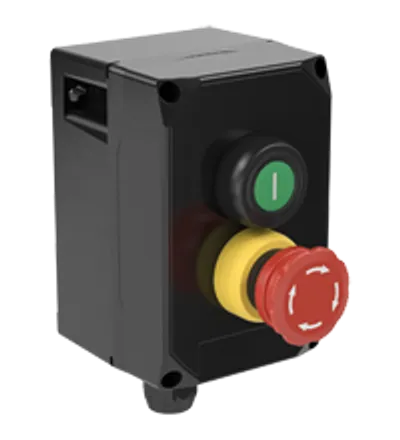

| LRP2.D.PGMX.E4MX.B.1 | 70144003 | push button | green | approx. 0.66 kg | 125.4 mm |

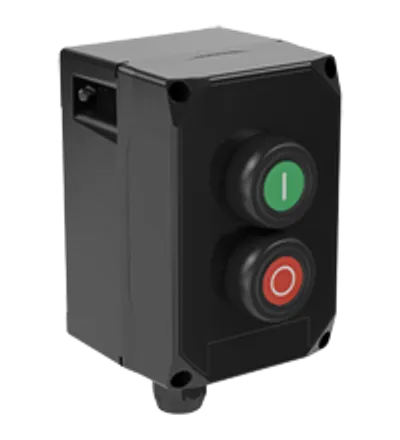

| LRP2.D.PGMX.PRMX.B.1 | 70144002 | push button | green | approx. 0.64 kg | 100.5 mm |

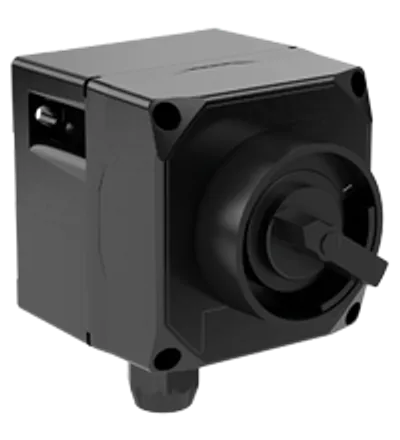

| LRP1.D.S1OX.B.1 | 70144001 | control switch, large | black | approx. 0.52 kg | 114.3 mm |
| LRP1.D.JRMX.B.1 | 70144000 | mushroom button | red | approx. 0.48 kg | 125.35 mm |
| LRP1.D.E4MZAR.B.1 | 70143999 | mushroom button | red | approx. 0.53 kg | 134.5 mm |
Common to all listed parts
| Operating voltage | 250 V max. |
| Terminal torque | 0.8 Nm |
| Lifecycle | Active (current Pepperl+Fuchs product) |
| Degree of protection | IP66 |
| Material: Finish | inherent color black |
| CE marking | 0080 or 0102, see type label |
