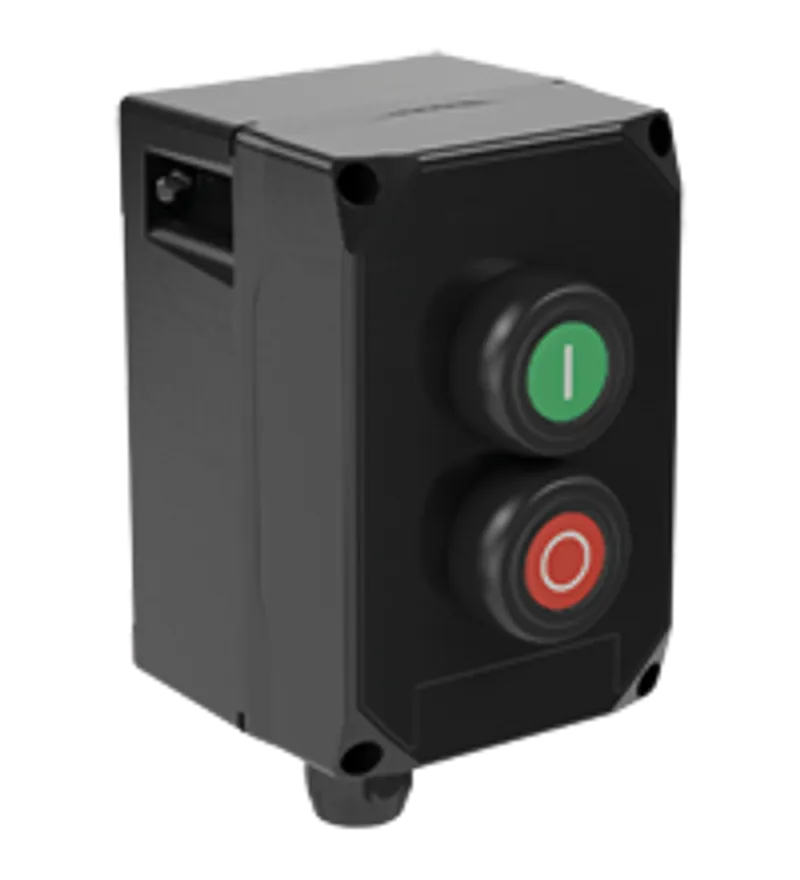

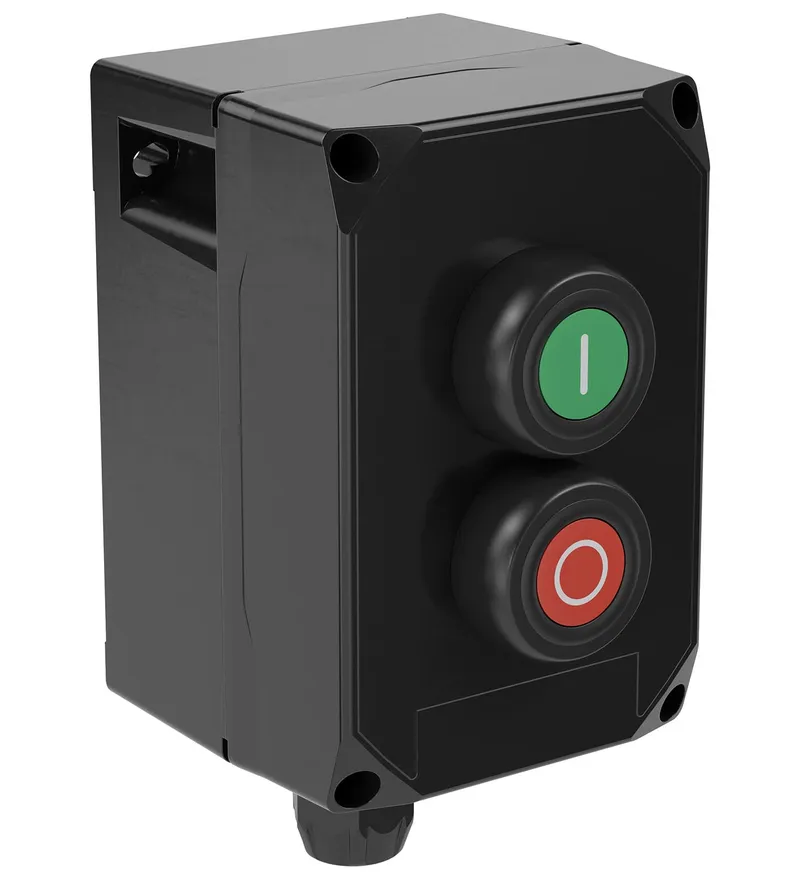

Pepperl Fuchs LRP2.D.PGMX.PRMX.C.1
Control Unit Ex e, Polyamide, 2 Functions
- MPN
- LRP2.D.PGMX.PRMX.C.1
- Category
- Control Units (Ex e)
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Pepperl Fuchs LRP2.D.PGMX.PRMX.C.1?
Pushbutton green - 1x NO / 1x NC - labeling 'l'
Pushbutton red - 1x NO / 1x NC - labeling '0'
Polyamide (PA) enclosure
Ex db eb and Ex tb certified
Installation in Zone 1, Zone 2, Zone 21 and Zone 22
Pushbutton with interchangeable inserts
Degree of protection IP66
Bottom face cable gland polyamide, 1x M25
Pushbutton green - 1x NO / 1x NC - labeling 'l', Pushbutton red - 1x NO / 1x NC - labeling '0', Polyamide (PA) enclosure, Ex db eb and Ex tb certified, Installation in Zone 1, Zone 2, Zone 21 and Zone 22, Pushbutton with interchangeable inserts, Degree of protection IP66, Bottom face cable gland polyamide, 1x M25, Function: push button, Function 2: push button, Ambient temperature: -40 ... 55 °C (-40 ... 131 °F) @ T4 , -40 ... 40 °C (-40 ... 104 °F) @ T6, Enclosure: Polyamide (PA)
Specifications
Electrical specifications
| Order code (Pepperl+Fuchs part number) | 70155294 |
| Operating voltage | 250 V max. |
| Operating current | 13 A max. |
| Terminal capacity | 2.5 mm2 |
| Terminal torque | 0.8 Nm |
| Function | push button |
| Color | green |
| Contact configuration | 1x NO / 1x NC |
| Usage category | AC12 - 12 … 250 V AC - 13 A AC15 - 12 … 250 V AC - 10 A DC13 - 12 … 110 V DC - 1 A |
| Number of poles | 2 |
| Operator action | spring return |
| Labeling | I |
| Note | spare pushbutton inserts included: red 'STOP', red 'OFF', green 'START', green 'ON', black 'I", black 'II', 2x black 'arrow up' |
| Function 2 | push button |
| Color | red |
| Contact configuration | 1x NO / 1x NC |
| Usage category | AC12 - 12 … 250 V AC - 13 A AC15 - 12 … 250 V AC - 10 A DC13 - 12 … 110 V DC - 1 A |
| Number of poles | 2 |
| Operator action | spring return |
| Labeling | 0 |
| Lifecycle | Active (current Pepperl+Fuchs product) |
Mechanical specifications
| Enclosure range | LRP |
| Enclosure cover | fully detachable |
| Cover fixing: Screws | M4 stainless steel combination Phillips and slotted screw |
| Cover fixing: Number | 4 |
| Cover fixing: Tightening torque | 1.5 Nm |
| Degree of protection | IP66 |
| Cable entry | thru-holes |
| Cable entry face B: M25 quantity | 1 |
| Cable entry face B: M25 series | Cable Glands, Plastic |
| Cable entry face B: M25 type | CG.PEDS1.M25.* |
| Cable entry face B: M25 clamping range | 9 ... 17 mm |
| Defined entry area | face B |
| Material: Enclosure | Polyamide (PA) |
| Material: Finish | inherent color black |
| Material: Seal | one piece closed cell silicone |
| Mass | approx. 0.64 kg |

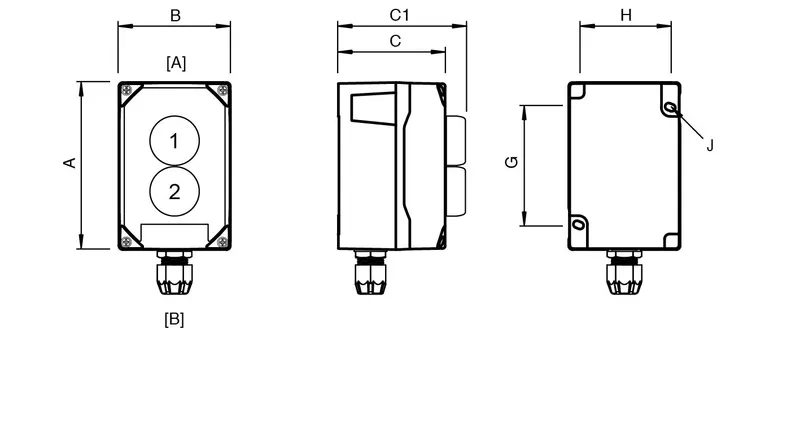

| Dimensions: External dimension (A) | 132 mm |
| Dimensions: External dimension (B) | 88 mm |
| Dimensions: External dimension (C) | 85 mm |
| Dimensions: External dimension with operating element (C1) | 100.5 mm |
| Dimensions: Mounting holes distance (G) | 93 mm |
| Dimensions: Mounting holes distance (H) | 72.5 mm |
| Dimensions: Mounting holes diameter (J) | 5.6 mm |
| Tightening torque: Nut torque at enclosure (SW1) | see datasheets of cable glands |
| Mounting | 2 screws |
| Grounding | 2x 2.5mm² grounding terminal |
Ambient conditions
| Ambient temperature | -40 ... 55 °C (-40 ... 131 °F) @ T4 -40 ... 40 °C (-40 ... 104 °F) @ T6 |
Data for application in connection with hazardous areas
| EU-type examination certificate | CML 16 ATEX 3009X |
| Marking | II 2 GD Ex db eb IIC T* Gb Ex tb IIIC T** °C Db T4/T130 °C @ Ta +55 °C ( T6/T80 °C @ Ta +40 °C on request ) |
International approvals
| IECEx approval | IECEx CML 16.0008X |
| UKCA approval | CML 22 UKEX 2550X |
| Further approvals | further on request |
Conformity
| Degree of protection | EN60529 |
| Usage category | IEC / EN 60947 |
| CE marking | 0080 or 0102, see type label |
General information
| Order information | This device will be delivered completely configured and assembled ready for use. For configuration details please contact Customer Service. |
| Supplementary information | EC-Type Examination Certificate, Statement of Conformity, Declaration of Conformity, Attestation of Conformity and instructions have to be observed where applicable. For information see www.pepperl-fuchs.com. |
Accessories
| Optional accessories | engraved traffolyte tag label engraved AISI 316L stainless steel tag label color in-fill stainless steel tag label |
