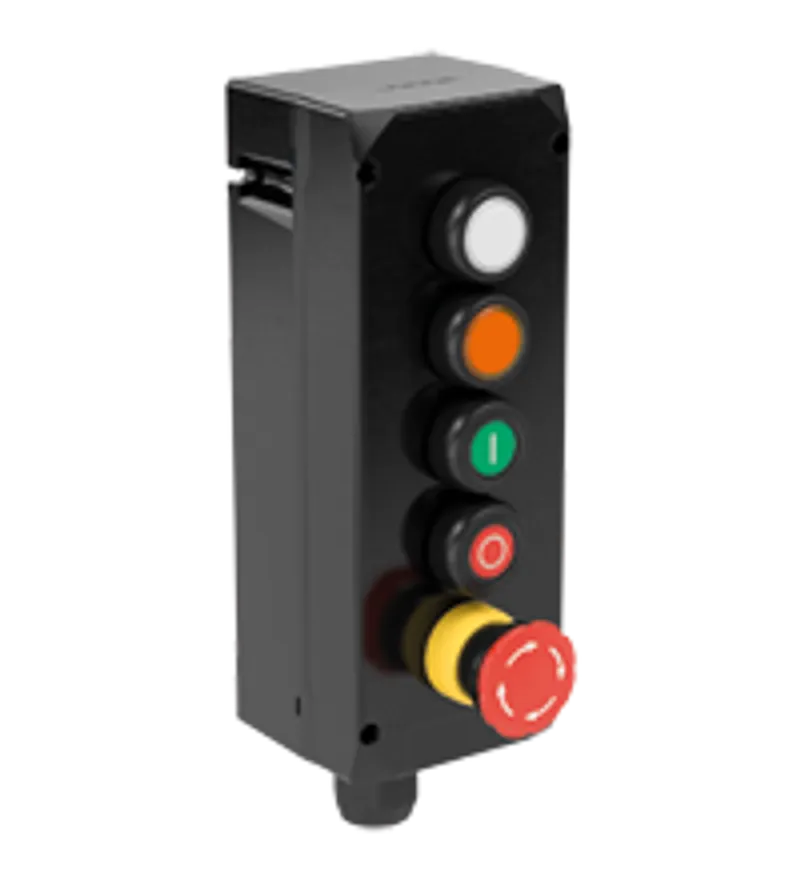

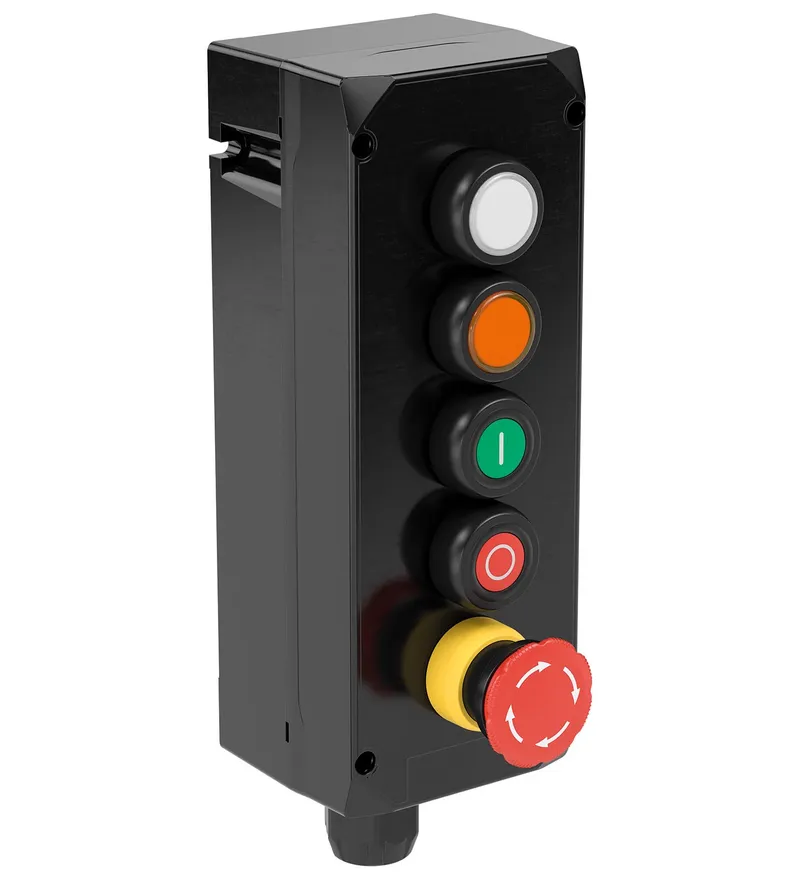

Pepperl Fuchs LRP*.*

Control Units Ex e, Polyamide. Polyamide (PA) enclosure, Installation in Zone 1, Zone 2, Zone 21 and Zone 22, Ex db eb, Ex ib and Ex tb certified, Up to 5 operators per enclosure, Customizable configuration of operators, contact modules and cable entries as per specification, Wide range of labels and accessories available, 5 enclosure size options, Degree of protection IP66, Installation in portrait, landscape on request, Function: see data table, Ambient temperature: -40 ... 55 °C (-40 ... 131 °F) <BR>-50 °C (-58 °F) on request. Operating voltage: 400 V max.. Operating current: 16 A max.. Terminal capacity: 2.5 mm2. Terminal torque0.8 Nm: . Terminal torque: 0.8 Nm. Function: see data table. Enclosure range: LRP. Enclosure cover: fully detachable. Cover fixing: Stainless steel A4 (V4A) combination pozi driv and slotted screw. ScrewsM4 stainless steel combination Phillips and slotted screwNumber4Tightening torque1.5 Nm: . Screws: M4 stainless steel combination Phillips and slotted screw. Number: 4. Tightening torque: 1.5 Nm. Degree of protection: IP66. Cable entry: cable glands as per specification. Number of cable entriessee data table: . Number of cable entries: see data table. Defined entry area: face A and face B. Material: . EnclosurePolyamide (PA)Finishinherent color blackSealone piece closed cell silicone: . Enclosure: Polyamide (PA). Finish: inherent color black. Seal: one piece closed cell silicone. Mass: see data table. Dimensions: see data table. Tightening torque: . Nut torque at enclosure (SW1)see datasheets of cable glands: . Nut torque at enclosure (SW1): see datasheets of cable glands. Mounting: see data table. Grounding: 2x 2.5mm² grounding terminal. Ambient temperature: -40 ... 55 °C (-40 ... 131 °F) -50 °C (-58 °F) on request. EU-type examination certificate: CML 16 ATEX 3009X. Marking II 2 GD Ex db eb ib mb IIC T* Gb Ex tb IIIC T** °C Db T4/T130 °C @ Ta +55 °C T6/T80 °C @ Ta +40 °C on request: . Marking: II 2 GD Ex db eb ib mb IIC T* Gb Ex tb IIIC T** °C Db T4/T130 °C @ Ta +55 °C T6/T80 °C @ Ta +40 °C on request. IECEx approval: IECEx CML 16.0008X. UKCA approval: CML 22 UKEX 2550X. ECAS approval: 24-11-132356/E24-11-137186/NB0002. IA approval: MASC S/22-8362X. CCC approval: 2020322304002545. Degree of protection: EN 60529. Usage category: IEC / EN 60947. CE marking: 2829. Ordering information: For standard configured units please see pdf datasheet. For configuration details please contact Customer Service.. Supplementary information: EC-Type Examination Certificate, Statement of Conformity, Declaration of Conformity, Attestation of Conformity and instructions have to be observed where applicable. For information see www.pepperl-fuchs.com.. Optional accessories: engraved traffolyte tag labelengraved AISI 316L stainless steel tag labelcolor in-fill stainless steel tag label. Control elements: small footprint max. 5 see data table all NC contacts have a direct opening action for emergency stop functions

Specifications
