Control Units (Ex e) Parts
Compare Control Units (Ex e)
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Order code (Pepperl+Fuchs part number) | Function | Mass | Dimensions: External dimension (A) | Dimensions: External dimension with operating element (C1) |
|---|---|---|---|---|---|

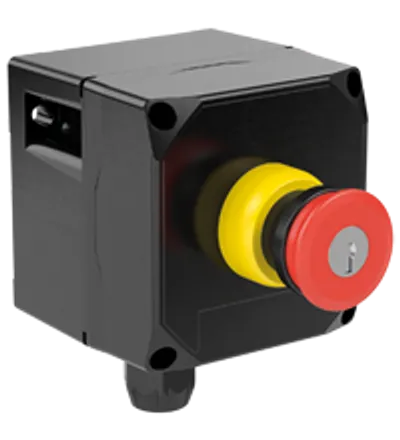

| LRP1.D.JRMX.C.1 | 70155292 | mushroom button | approx. 0.48 kg | 90 mm | 125.35 mm |

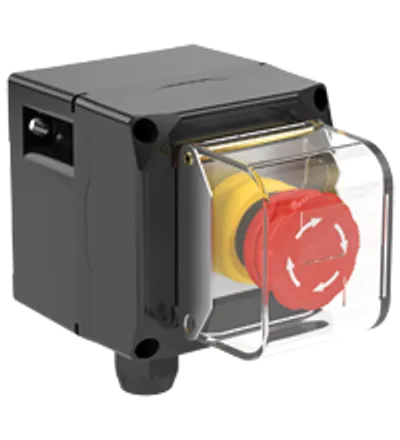

| LRP1.D.E4MZAR.C.1 | 70155291 | mushroom button | approx. 0.53 kg | 90 mm | 134.5 mm |

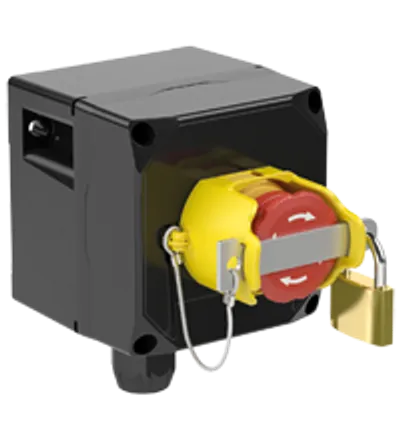

| LRP1.D.E4MZPR.C.1 | 70155290 | mushroom button | approx. 0.67 kg | 90 mm | 129.5 mm |

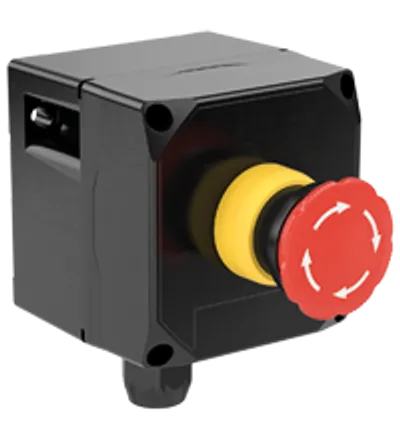

| LRP1.D.E4CX.C.1 | 70155289 | mushroom button | approx. 0.46 kg | 90 mm | 125.35 mm |
| LRP1.D.E4MX.C.1 | 70155288 | mushroom button | approx. 0.46 kg | 90 mm | 125.35 mm |

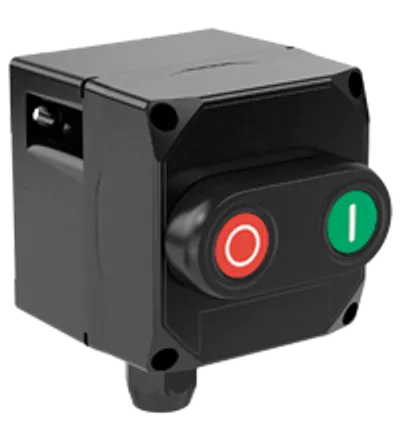

| LRP1.D.DMMX.C.1 | 70155287 | double pushbutton | approx. 0.45 kg | 90 mm | 100.5 mm |

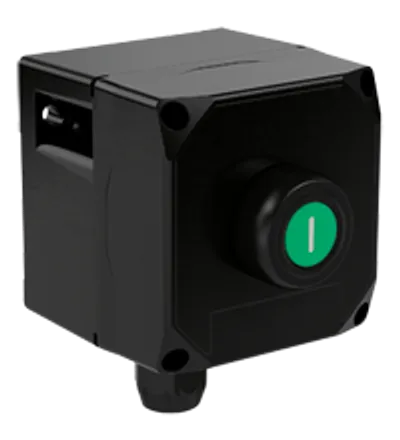

| LRP1.D.PGMX.C.1 | 70155286 | push button | approx. 0.43 kg | 90 mm | 100.5 mm |
| LRP1.D.E4MZPR.B.1 | 70143998 | mushroom button | approx. 0.67 kg | 90 mm | 129.5 mm |
| LRP1.D.E4MX.B.1 | 70143996 | mushroom button | approx. 0.46 kg | 90 mm | 125.35 mm |
| LRP1.D.DMMX.B.1 | 70143995 | double pushbutton | approx. 0.44 kg | 90 mm | 100.5 mm |
| LRP1.D.PGMX.B.1 | 70143994 | push button | approx. 0.43 kg | 90 mm | 100.5 mm |
| LRS1.B.DMMX.B.1 | 70142236 | double pushbutton | approx. 0.7 kg | 102 mm | 103 mm |

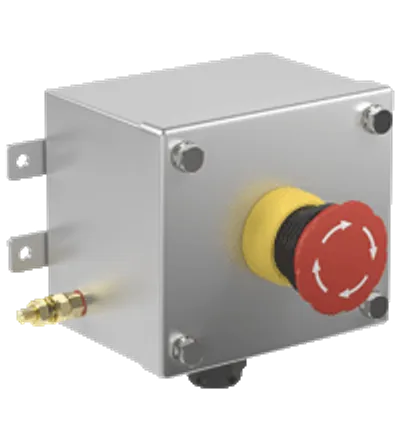

| LRS1.B.E4CX.B.1 | 70142238 | mushroom button | approx. 0.7 kg | 102 mm | 129 mm |

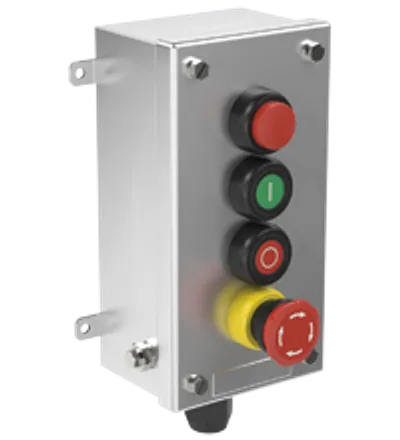

| LRS*.* | T202049 | see data table | see data table | — | — |
| LRS4.D.LRLX.PGMX.PRMX.E4MX.C.1 | 70142249 | LED | approx. 1.5 kg | 222 mm | 129 mm |

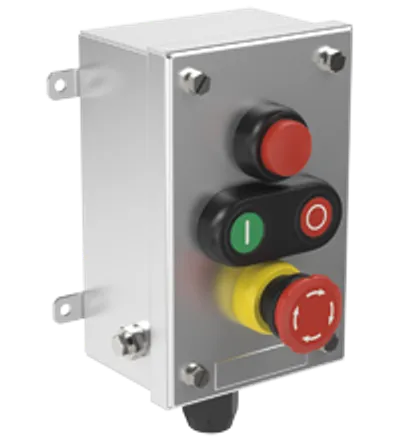

| LRS3.D.LRLX.DMMX.E4MX.C.1 | 70142248 | LED | approx. 1.3 kg | 182 mm | 129 mm |

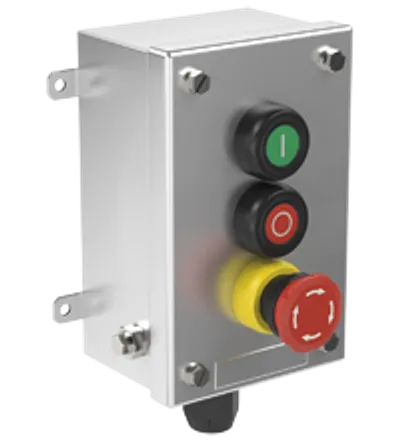

| LRS3.D.PGMX.PRMX.E4MX.C.1 | 70142247 | push button | approx. 1.3 kg | 182 mm | 129 mm |

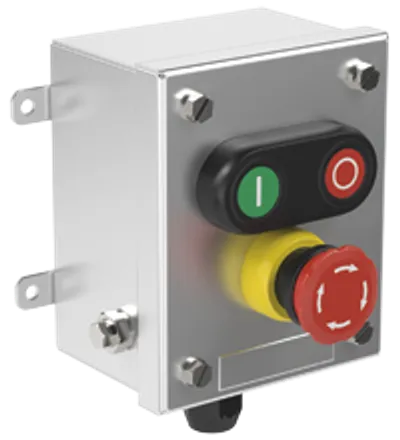

| LRS2.D.DMMX.E4MX.B.1 | 70142246 | double pushbutton | approx. 1 kg | 142 mm | 129 mm |

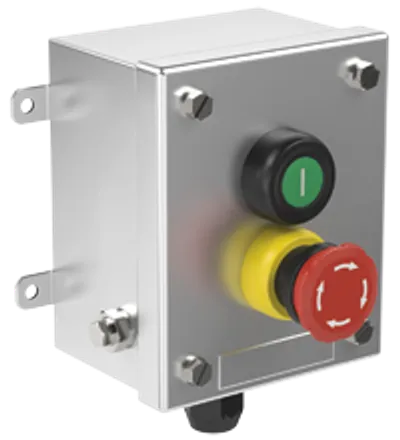

| LRS2.D.PGMX.E4MX.B.1 | 70142245 | push button | approx. 1 kg | 142 mm | 129 mm |

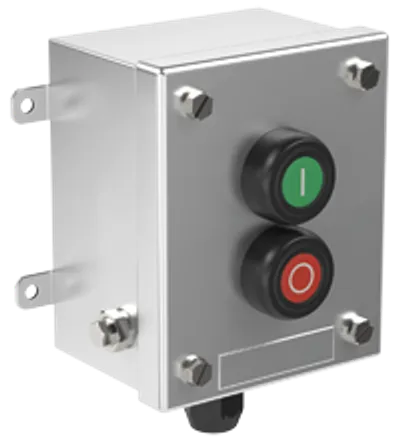

| LRS2.D.PGMX.PRMX.B.1 | 70142244 | push button | approx. 1 kg | 142 mm | 103 mm |

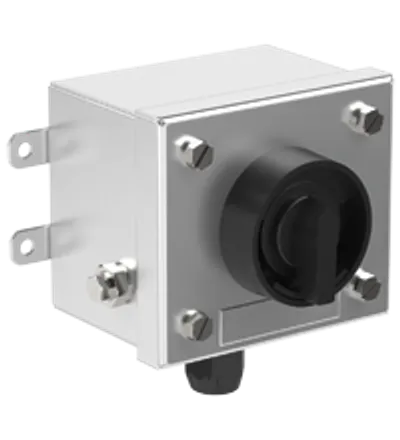

| LRS1.B.S1OX.B.1 | 70142242 | control switch, large | approx. 0.7 kg | 102 mm | 118 mm |

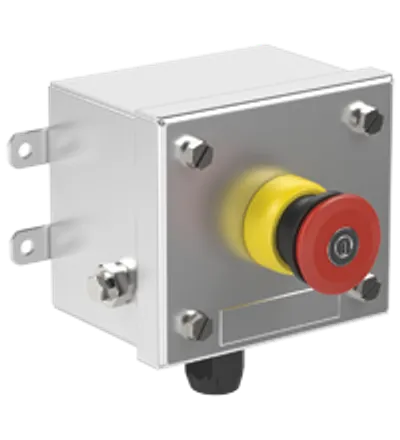

| LRS1.B.JRMX.B.1 | 70142241 | mushroom button | approx. 0.7 kg | 102 mm | 129 mm |

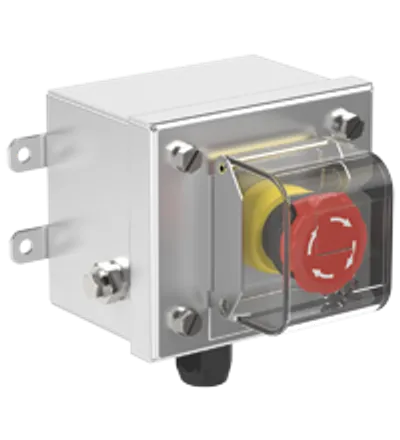

| LRS1.B.E4MZAR.B.1 | 70142240 | mushroom button | approx. 0.7 kg | 102 mm | 137 mm |

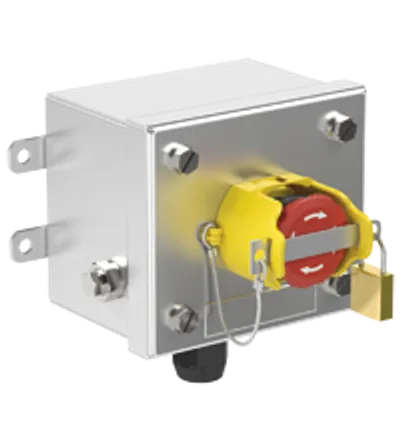

| LRS1.B.E4MZPR.B.1 | 70142239 | mushroom button | approx. 0.7 kg | 102 mm | 132 mm |
Common to all listed parts
| Operating voltage | 250 V max. |
| Terminal capacity | 2.5 mm2 |
| Terminal torque | 0.8 Nm |
| Lifecycle | Active (current Pepperl+Fuchs product) |
| Enclosure cover | fully detachable |
| Degree of protection | IP66 |
| Material: Seal | one piece closed cell silicone |
| Tightening torque: Nut torque at enclosure (SW1) | see datasheets of cable glands |
