Incremental Rotary Encoders Parts
Compare Incremental Rotary Encoders
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Order code (Pepperl+Fuchs part number) | Pulse count | Output frequency | Degree of protection | Storage temperature |
|---|---|---|---|---|---|
| ENI90PL-H | T195387 | max. 5000 | max. 400 kHz | DIN EN 60529, IP65, IP66, IP67 | -40 ... 85 °C (-40 ... 185 °F) |
| ENI90IL-H | T195386 | max. 2048 | max. 400 kHz | DIN EN 60529, IP54 | -20 ... 70 °C (-4 ... 158 °F) |
| MNI20N-0H02DY41N-00100:02 | — | 100 | max. 800 kHz | DIN EN 60529, IP67 | -25 ... 85 °C (-13 ... 185 °F) |

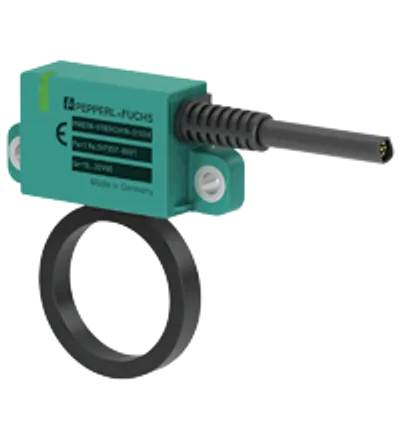

| MNI20N | T158322 | max. 5000 | max. 800 kHz | DIN EN 60529, IP67 | -25 ... 85 °C (-13 ... 185 °F) |

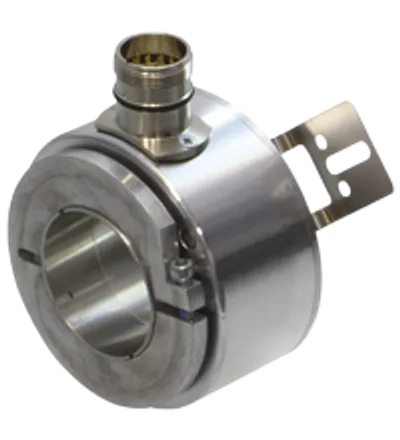

| RHI90N | T179164 | max. 2500 | max. 200 kHz | DIN EN 60529, IP65 | -40 ... 80 °C (-40 ... 176 °F) |
| RVI70E | — | max. 5000 | max. 200 kHz | DIN EN 60529, IP66 DIN EN 60529, IP67 | -40 ... 70 °C (-40 ... 158 °F) |
| ENI58PL-R*** | T187373 | configurable from 1 ... 16384 | max. 1000 kHz | DIN EN 60529, IP65, IP67 | -40 ... 85 °C (-40 ... 185 °F) |
| ENI58PL-S*** | T186655 | configurable from 1 ... 16384 | max. 1000 kHz | DIN EN 60529, IP65, IP67 | -40 ... 85 °C (-40 ... 185 °F) |
| THI40P-1CAK2R6TN-01024 | — | 1024 | max. 100 kHz | DIN EN 60529, IP65 | -25 ... 85 °C (-13 ... 185 °F) |
| TVI50N-09BK0**T | T21623 | max. 1024 | max. 100 kHz (max. 100 kHz) | DIN EN 60529, IP40, IP54 | -40 ... 80 °C (-40 ... 176 °F) |
| TVI40N | T39661 | max. 1024 | max. 100 kHz (max. 100 kHz) | DIN EN 60529, IP54 | -25 ... 85 °C (-13 ... 185 °F) |

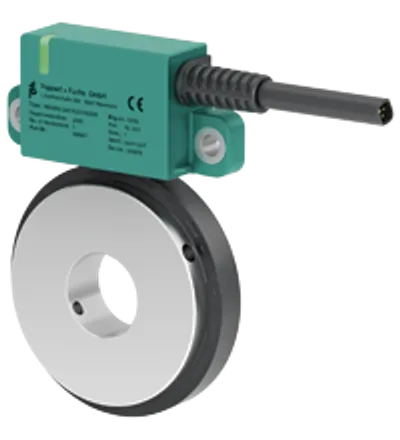

| MNI40N | T42651 | max. 7200 | max. 1 MHz | DIN EN 60529, IP67 , IP68 , IP69K | -40 ... 100 °C (-40 ... 212 °F) |
| RVI70E Mining | — | max. 5000 | max. 200 kHz | DIN EN 60529, IP66 DIN EN 60529, IP67 | -40 ... 70 °C (-40 ... 158 °F) |

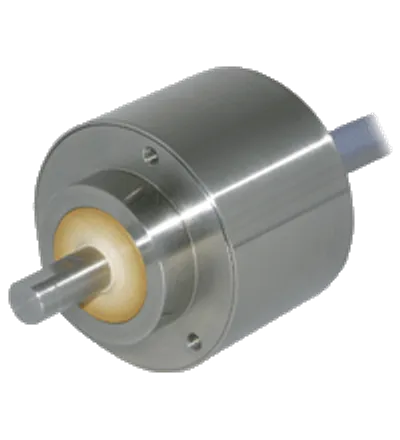

| RVI58L | T42185 | max. 25000 , see table | max. 600 kHz | IP67 / IP69K | -20 ... 80 °C (-4 ... 176 °F) |
| THI40N | T36797 | max. 1024 | max. 100 kHz (max. 100 kHz) | DIN EN 60529, IP54 | -25 ... 85 °C (-13 ... 185 °F) |
