Pepperl Fuchs

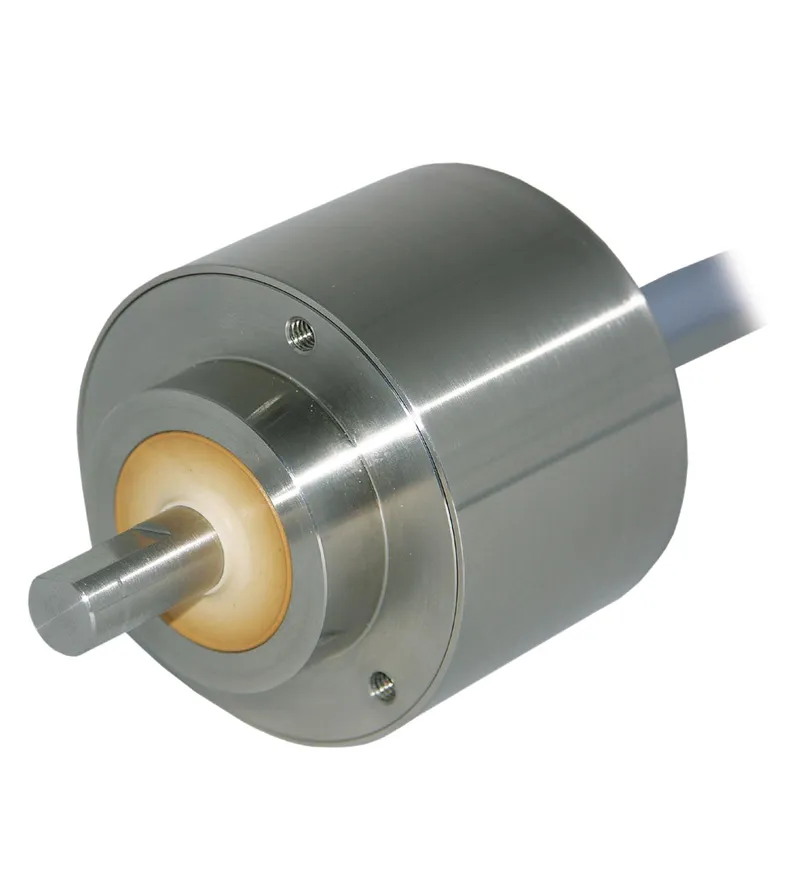

Pepperl Fuchs RVI58L

Incremental rotary encoder

MPN: RVI58L
Category: Incremental Rotary Encoders

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the Pepperl Fuchs RVI58L?

Stainless steel version, especially suitable for applications in the food industry

Cleaning compatible according to EHEDG (European Hygienic Engineering & Design Group)

Approval for ECOLAB detergents

IP69K Protected

Industrial standard housing ∅58 mm

Clamping flange

Stainless steel version, especially suitable for applications in the food industry, Cleaning compatible according to EHEDG (European Hygienic Engineering & Design Group), Approval for ECOLAB detergents, IP69K Protected, Industrial standard housing ∅58 mm, Enclosure type: 58 mm, Type of shaft: Solid shaft, Interface: push-pull, incremental or RS-422, incremental, Application: hygienic design, Detection type: photoelectric sampling

Specifications

General specifications

Order code (Pepperl+Fuchs part number)	T42185
Detection type	photoelectric sampling
Pulse count	max. 25000 , see table
Lifecycle	Active (current Pepperl+Fuchs product)

Electrical specifications

Operating voltage	10 ... 30 V DC or 5 V DC UB
No-load supply current	max. 100 mA I0

Output

Output type	push-pull, incremental or RS 422, incremental
Load current	max. per channel 40 mA , short-circuit prtected (not with Ub), reverse polarity protected
Output frequency	max. 600 kHz
Rise time	170 ns

Connection

Cable

2 m fixed cable

Approvals and certificates

ECOLAB

material compatibility attested for: P3-topactive DES P3-topax 19 P3-topax 56 P3-topax 66 P3-topax 91 de-mineralized water as zero value

Ambient conditions

Operating temperature	-20 ... 80 °C (-4 ... 176 °F)
Storage temperature	-20 ... 80 °C (-4 ... 176 °F)

Mechanical specifications

Degree of protection	IP67 / IP69K
Material: Housing	stainless steel V4A
Material: Flange	stainless steel V4A
Material: Shaft	stainless steel V4A
Mass	approx. 600 g
Rotational speed	max. 3600 min -1
Starting torque	approx. 1 Ncm at room temperature
Shaft load: Axial	max. 100 N
Shaft load: Radial	max. 100 N
Dimensions: Diameter	58 mm
Life span	≥ 1 x 109 revolutions (max. shaft loading)

Downloads & documentation

Official documents from Pepperl Fuchs, downloaded directly from the manufacturer.

Data sheets & manuals

Commissioning InstructionsPDF · 992 kB

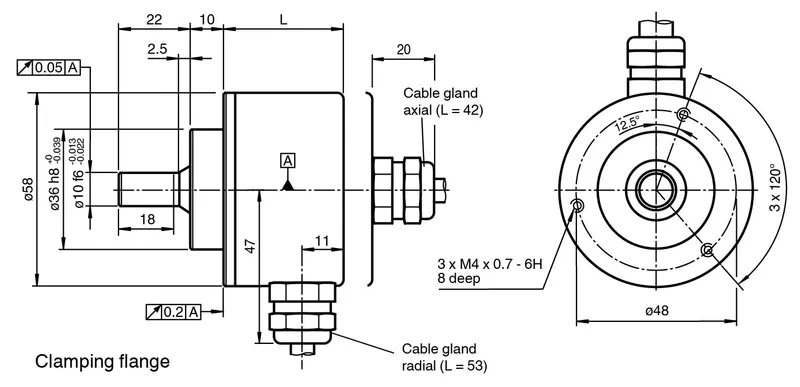

CAD & dimension drawings
