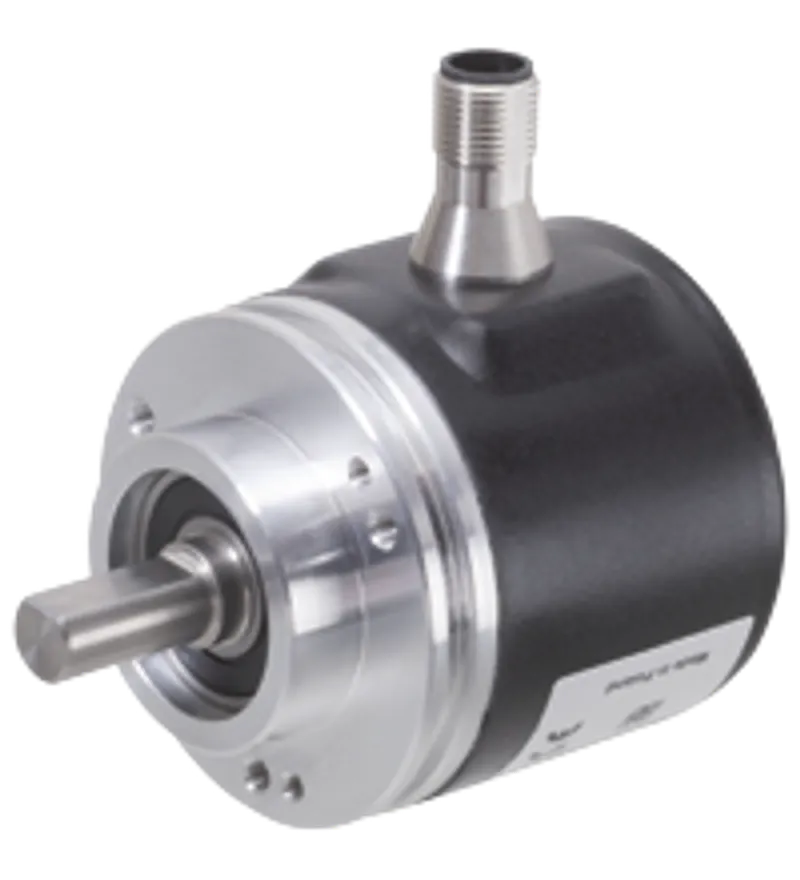

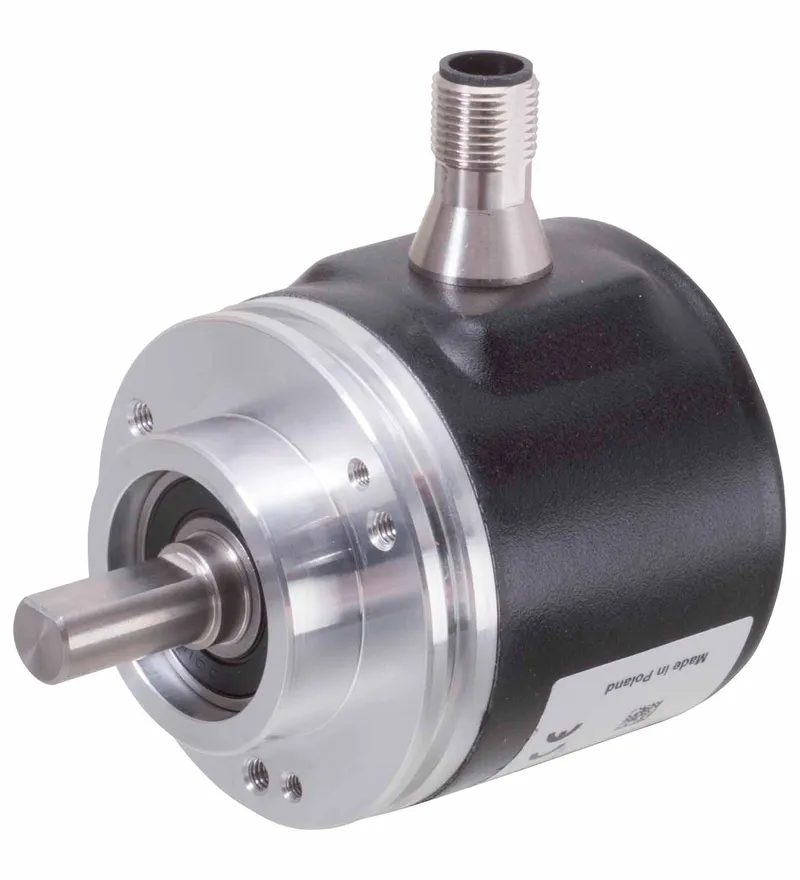

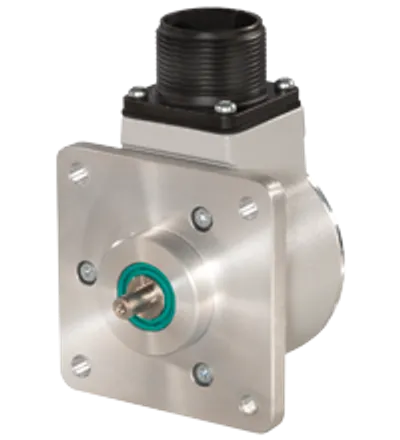

Pepperl Fuchs ENI58PL-S***
Incremental rotary encoder
- MPN
- ENI58PL-S***
- Category
- Incremental Rotary Encoders
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Pepperl Fuchs ENI58PL-S***?
Housing ∅ 58 mm
Solid shaft

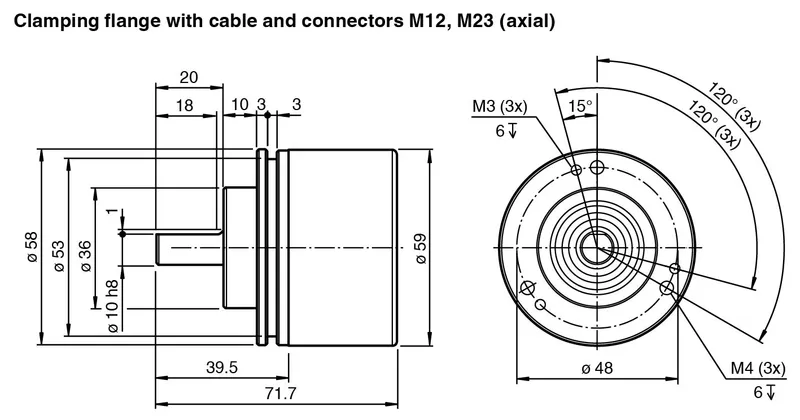

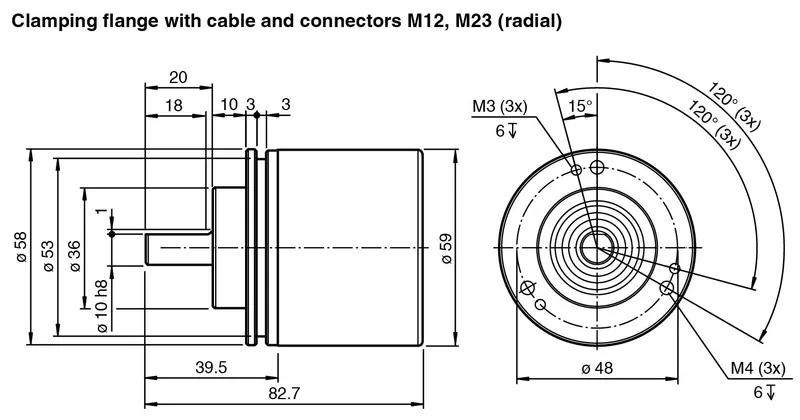

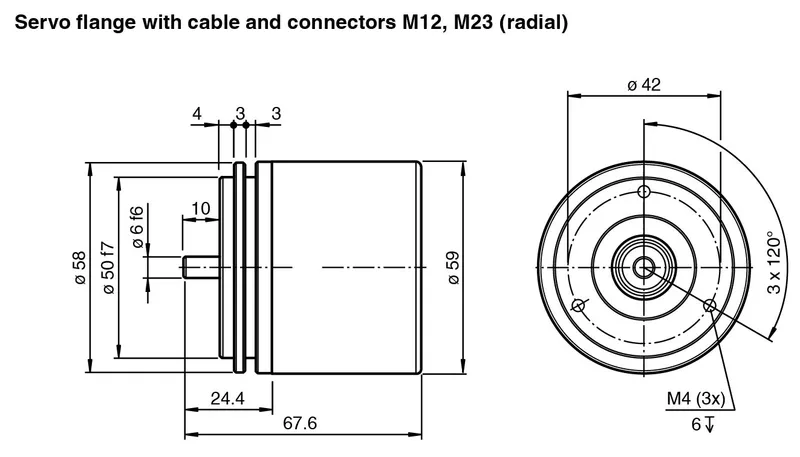

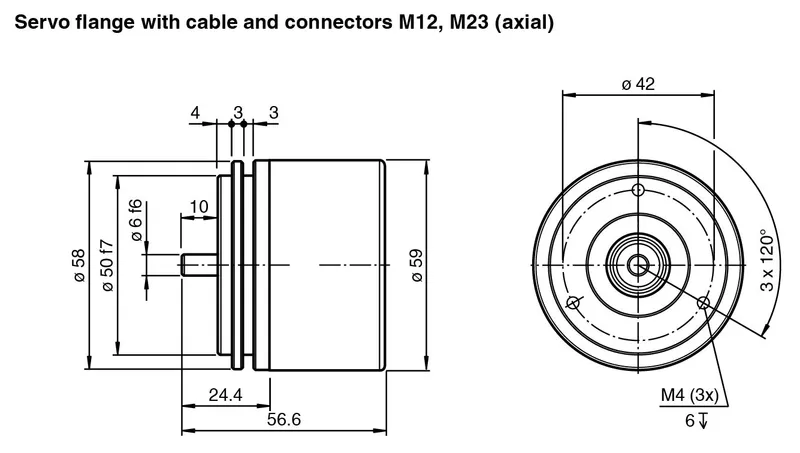

Servo flange, square flange or clamping flange
Puls count configurable from 1 ... 16384
Direction of rotation configurable
Output type configurable
Housing ∅ 58 mm, Solid shaft, Servo flange, square flange or clamping flange, Puls count configurable from 1 ... 16384 , Direction of rotation configurable, Enclosure type: 58 mm, Type of shaft: Solid shaft, Interface: push-pull, incremental, Detection type: magnetic sampling, Output type: HTL/TTL configurable
Specifications
General specifications
| Order code (Pepperl+Fuchs part number) | T186655 |
| Detection type | magnetic sampling |
| Linearity error | ± 0.1 ° |
| Pulse count | configurable from 1 ... 16384 |
| Lifecycle | Active (current Pepperl+Fuchs product) |
Functional safety related parameters
| MTTFd | 140 a |
| Mission Time (TM) | 20 a |
| L10 | 70 E+9 at 6000 rpm |
| Diagnostic Coverage (DC) | 0 % |
Electrical specifications
| Operating voltage | 4.75 ... 30 V DC UB |
| No-load supply current | max. 50 mA I0 |
Output
| Output type | HTL/TTL configurable |
| Load current | max. per channel 50 mA , short-circuit protected, reverse polarity protected |
| Output frequency | max. 1000 kHz |
| Rise time | 300 ns |
| Phase position A to B | 90 ° ± 14 ° for speed > 100 min-1 |
| Duty cycle | 1/2 ± 15 % for speed > 100 min-1 |
Connection
| Connector | M12 connector, 8-pin M12 connector, 5 pin M23 connector, 12-pin |
| Cable | ∅6 mm, 4 x 2 x 0.14 mm2 |
Standard conformity
| Degree of protection | DIN EN 60529, IP65, IP67 |
| Climatic testing | DIN EN 60068-2-78 , no moisture condensation |
| Emitted interference | EN 61000-6-4:2007/A1:2011 |
| Noise immunity | EN 61000-6-2:2005 |
| Shock resistance | DIN EN 60068-2-27, 100 g, 6 ms |
| Vibration resistance | DIN EN 60068-2-6, 10 g, 10 ... 1000 Hz |
Ambient conditions
| Operating temperature | cable, movable installation: -5 ... 70 °C (23 ... 158 °F)cable, fixed installation: -30 ... 70 °C (-22 ... 158 °F) connector models: -40 ... 85 °C (-40 ... 185 °F) |
| Storage temperature | -40 ... 85 °C (-40 ... 185 °F) |
Mechanical specifications
| Material: Housing | nickel-plated steel , painted |
| Material: Flange | Aluminum |
| Material: Shaft | Stainless steel |
| Mass | ca 300 g |
| Rotational speed | max. 12000 min -1 |
| Moment of inertia | ≤ 30 gcm2 |
| Starting torque | ≤ 3 Ncm for IP65 , ≤ 5 Ncm for IP67 |
| Shaft load: Axial | max. 40 N |
| Shaft load: Radial | max. 110 N |
| Dimensions: Diameter | 58.5 mm |
Factory settings
| Default setting | output type HTL , pulse count 1024 , direction of rotation A before B (clockwise) |
