Incremental Rotary Encoders Parts
Compare Incremental Rotary Encoders
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Pulse count | Degree of protection | Storage temperature | Mass | Moment of inertia |
|---|---|---|---|---|---|
| ENI90PL-H*HCS* | max. 5000 | DIN EN 60529, IP65 | -40 ... 80 °C (-40 ... 176 °F) | < 700 g without cable | — |
| ENI90HD-R*HCS* | max. 5000 | DIN EN 60529, IP65, IP66, IP67 | -40 ... 80 °C (-40 ... 176 °F) | < 1100 g without cable | — |
| TSI40N | max. 1024 | DIN EN 60529, IP54 | -25 ... 85 °C (-13 ... 185 °F) | approx. 180 g | ≤ 4.3 gcm2 |
| ENI58IL-H10BA5-0360UD1-RCY:02 | 360 | DIN EN 60529, IP65 | -40 ... 85 °C (-40 ... 185 °F) | < 300 g without cable | ≤ 70 gcm2 |
| ENI58IL-H15YY5-4096UD1-RBY:02 | 4096 | DIN EN 60529, IP65 | -40 ... 85 °C (-40 ... 185 °F) | < 300 g without cable | ≤ 70 gcm2 |
| ENI58IL-H15YY5-2048UD1-RBY:03 | 2048 | DIN EN 60529, IP65 | -40 ... 85 °C (-40 ... 185 °F) | < 300 g without cable | ≤ 70 gcm2 |
| ENI58IL-S12CA5-0100UD1-RFY:02 | 100 | DIN EN 60529, IP65 | -40 ... 85 °C (-40 ... 185 °F) | < 300 g without cable | ≤ 35 gcm2 |
| ENI58IL-S12CA5-0400UD1-RFY:02 | 400 | DIN EN 60529, IP65 | -40 ... 85 °C (-40 ... 185 °F) | < 300 g without cable | ≤ 35 gcm2 |
| ENI58IL-R12JA5-1024UD1-RCY:02 | 1024 | DIN EN 60529, IP65 | -40 ... 85 °C (-40 ... 185 °F) | < 300 g without cable | ≤ 60 gcm2 |
| ENI58IL-R12JA5-1024UD1-RBY:03 | 1024 | DIN EN 60529, IP65 | -40 ... 85 °C (-40 ... 185 °F) | < 300 g without cable | ≤ 60 gcm2 |

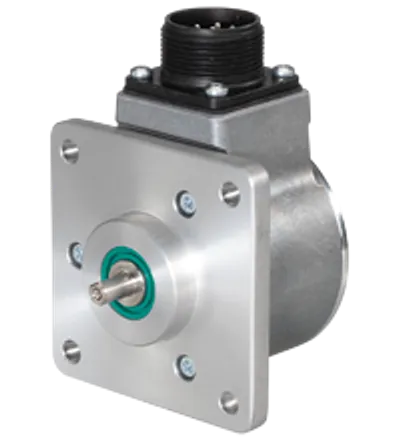

| ENI58PU-S**Q* | max. 1500 | DIN EN 60529, IP54 | -20 ... 70 °C (-4 ... 158 °F) | < 400 g without cable | ≤ 35 gcm2 |

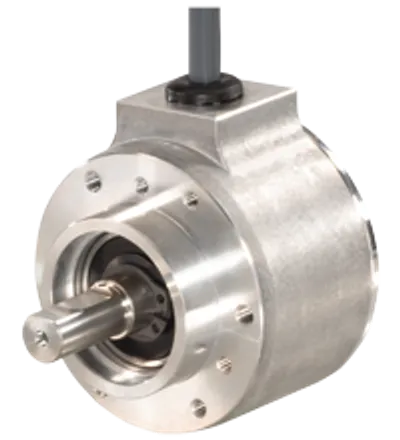

| ENI58PU-S* | max. 2048 | DIN EN 60529, IP54 | -20 ... 70 °C (-4 ... 158 °F) | < 300 g without cable | ≤ 35 gcm2 |

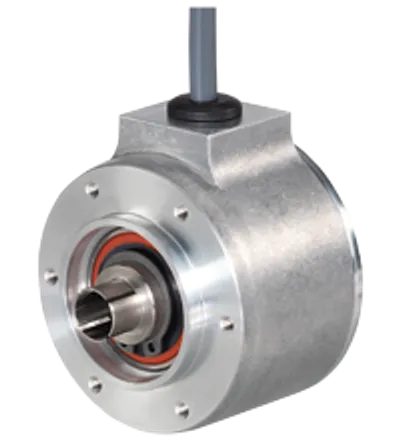

| ENI58PU-R* | max. 2048 | DIN EN 60529, IP54 | -20 ... 70 °C (-4 ... 158 °F) | < 300 g without cable | ≤ 60 gcm2 |

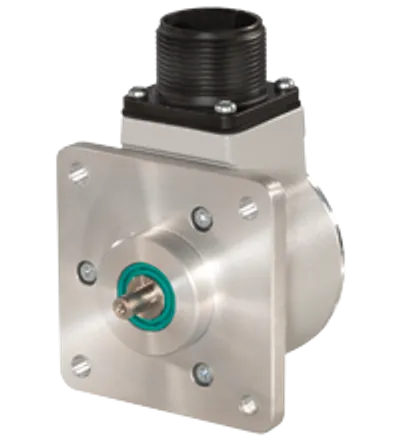

| ENI58IL-S**Q* | max. 1500 | DIN EN 60529, IP65, IP67 | -40 ... 85 °C (-40 ... 185 °F) | < 400 g without cable | ≤ 35 gcm2 |

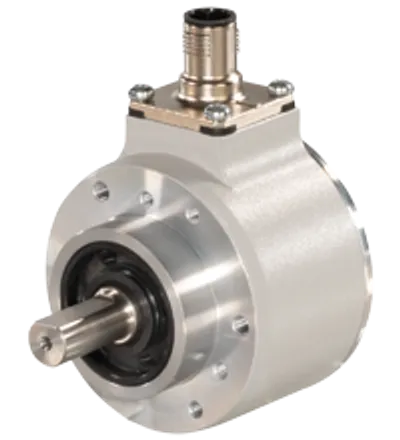

| ENI58IL-S* | max. 5000 | DIN EN 60529, IP65, IP67 | -40 ... 85 °C (-40 ... 185 °F) | < 300 g without cable | ≤ 35 gcm2 |

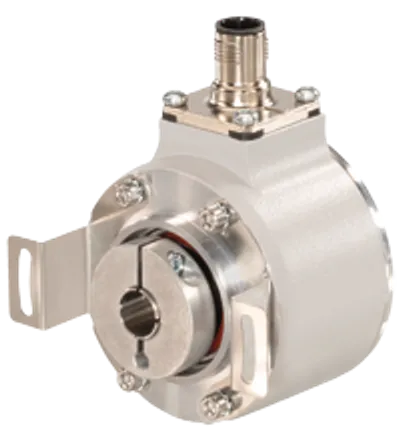

| ENI58IL-R* | max. 5000 | DIN EN 60529, IP65, IP67 | -40 ... 85 °C (-40 ... 185 °F) | < 300 g without cable | ≤ 60 gcm2 |
| ENI58IL-H* | max. 5000 | DIN EN 60529, IP65, IP67 | -40 ... 85 °C (-40 ... 185 °F) | < 300 g without cable | ≤ 70 gcm2 |
| ENI58PU-H* | max. 2048 | DIN EN 60529, IP54 | -20 ... 70 °C (-4 ... 158 °F) | < 300 g without cable | ≤ 70 gcm2 |
| THI40N-0CAKYRYTN-01024:01 | 1024 | DIN EN 60529, IP54 | -25 ... 85 °C (-13 ... 185 °F) | approx. 160 g | ≤ 5 gcm2 |
| THI40N-YYAY2R3YN-00011 | 11 | DIN EN 60529, IP54 | -25 ... 85 °C (-13 ... 185 °F) | approx. 160 g | ≤ 5 gcm2 |
| THI40N-YYAK2R6YN-00100 | 100 | DIN EN 60529, IP54 | -25 ... 85 °C (-13 ... 185 °F) | approx. 160 g | ≤ 5 gcm2 |
| MNI40N-0T01DY41N-01000:01 | 1000 | DIN EN 60529, IP67 , IP68 , IP69K | -40 ... 100 °C (-40 ... 212 °F) | approx. 190 g | — |
| ENI90HO-R | max. 5000 | DIN EN 60529, IP66, IP67 | -40 ... 85 °C (-40 ... 185 °F) | < 1100 g without cable | — |

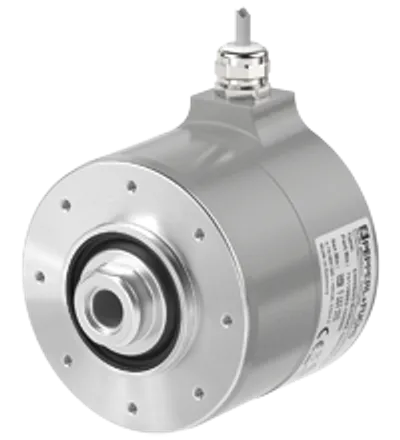

| ENI90HD-R | max. 5000 | DIN EN 60529, IP65, IP66, IP67 | -40 ... 85 °C (-40 ... 185 °F) | < 1100 g without cable | — |
