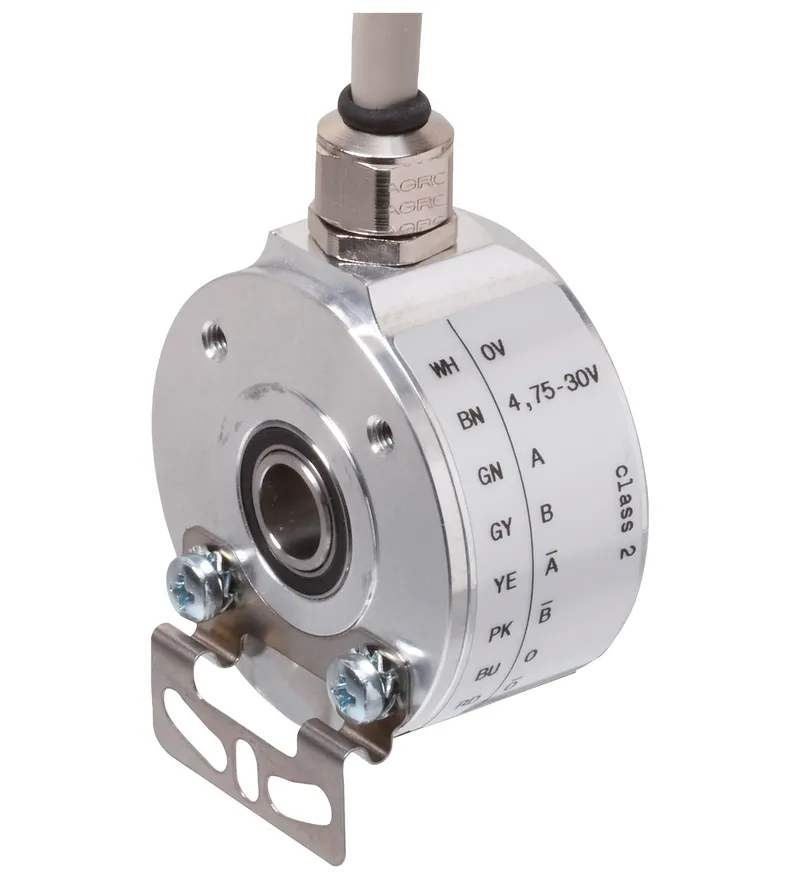

Pepperl Fuchs THI40N
Incremental rotary encoder
- MPN
- THI40N
- Category
- Incremental Rotary Encoders
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Pepperl Fuchs THI40N?
Compact design
Up to 1024 ppr
4.75 V ... 30 V with short-circuit proof push-pull output
RS 422 functionality at 5 V operation
Compact design, Up to 1024 ppr, 4.75 V ... 30 V with short-circuit proof push-pull output, RS 422 functionality at 5 V operation, Enclosure type: 40 mm, Type of shaft: Hollow shaft, Interface: push-pull, incremental or RS-422, incremental, Detection type: photoelectric sampling, Output type: push-pull, incremental or RS-422, incremental
Specifications
General specifications
| Order code (Pepperl+Fuchs part number) | T36797 |
| Detection type | photoelectric sampling |
| Pulse count | max. 1024 |
| Lifecycle | Active (current Pepperl+Fuchs product) |
Electrical specifications
| Operating voltage | 4.75 ... 30 V DC , Reverse polarity protection 5 V DC for RS-422 , Reverse polarity protection UB |
| No-load supply current | max. 55 mA I0 |
Output
| Output type | push-pull, incremental or RS-422, incremental |
| Voltage drop | ≤ 2.5 V (< 2.5 V) Ud |
| Load current | max. per channel 30 mA , short-circuit protected (max. per channel 20 mA, conditionally short-circuit proof) |
| Output frequency | max. 100 kHz (max. 100 kHz) |
| Rise time | 980 ns (225 ns) |
| De-energized delay | 980 ns (225 ns) toff |
Connection
| Cable | ∅5 mm, 8 x 0.08 mm2, 2 m |
Standard conformity
| Degree of protection | DIN EN 60529, IP54 |
| Climatic testing | DIN EN 60068-2-3, no moisture condensation |
| Emitted interference | EN IEC 61000-6-4:2019 |
| Noise immunity | EN IEC 61000-6-2:2019 |
| Shock resistance | DIN EN 60068-2-27, 100 g, 6 ms |
| Vibration resistance | DIN EN 60068-2-6, 10 g, 10 ... 2000 Hz |
Approvals and certificates
| UL approval | cULus Listed, General Purpose, Class 2 Power Source |
| Maximum permissible ambient temperature | max. 60 °C (max. 140 °F) |
Ambient conditions
| Operating temperature | -10 ... 70 °C (14 ... 158 °F) |
| Storage temperature | -25 ... 85 °C (-13 ... 185 °F) |

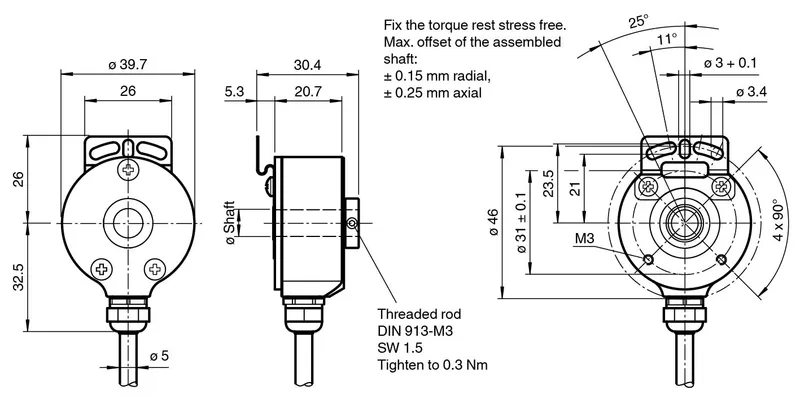

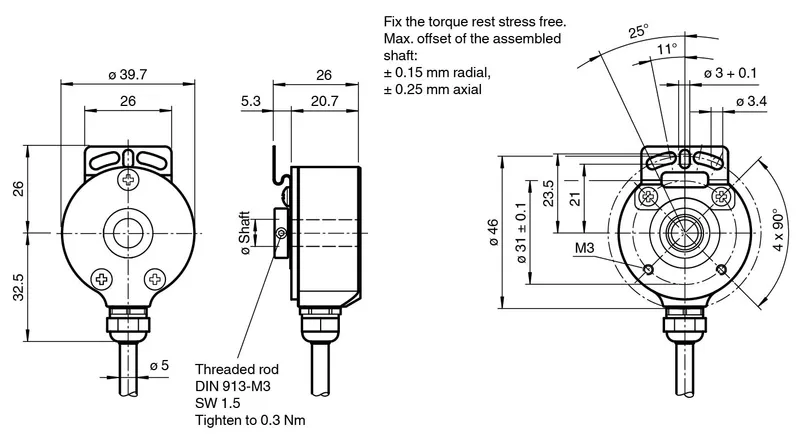

Mechanical specifications
| Material: Housing | Aluminum |
| Material: Flange | Aluminum |
| Material: Shaft | Stainless steel |
| Mass | approx. 160 g |
| Rotational speed | max. 6000 min -1 |
| Moment of inertia | ≤ 5 gcm2 |
| Starting torque | ≤ 1 Ncm |
| Dimensions: Length | 20.7 mm |
| Dimensions: Diameter | 40 mm |
