Schneider Electric

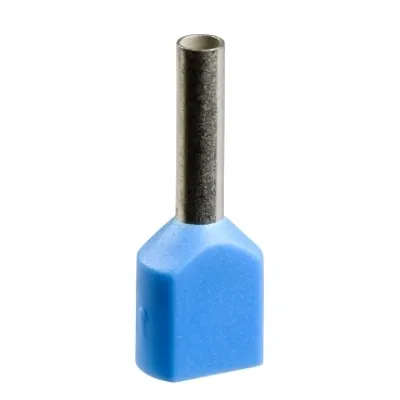

AZ5DE0071Cable end, Linergy TR cable ends, twin conductor, blue, 2x0.75mm², medium size, set of 1000
Linergy TR Cable ends Parts
Schneider Electric
AZ5DE007Cable end, Linergy TR cable ends, twin conductor, blue, 0.75mm², for insulated cable, medium size, 5 sets of 50
Schneider Electric

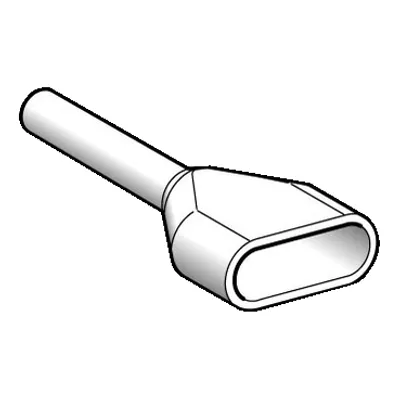

AZ5DE005Cable end, Linergy TR cable ends, twin conductor, white, 0.50mm², for insulated cable, medium size, 5 sets of 50
Schneider Electric
AZ5CE025DCable ends, Linergy TR cable ends, single conductor, blue, 2.5mm², for insulated, medium size, 5 sets of 200
Schneider Electric
AZ5CE025Cable ends, Linergy TR cable ends, single conductor, blue, 2.5mm², medium size, 5 sets of 200
Schneider Electric

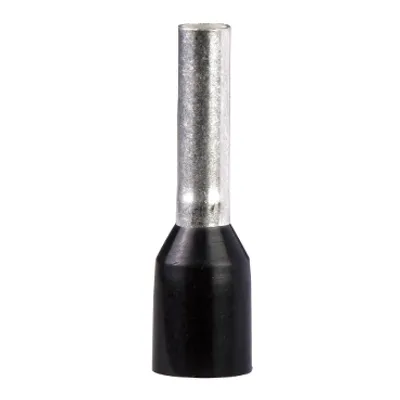

AZ5CE015DCable ends, Linergy TR cable ends, single conductor, black, 1.5mm², for insulated, medium size, 5 sets of 200
Schneider Electric
AZ5CE015Cable ends, Linergy TR cable ends, single conductor, black, 1.5mm², medium size, 5 sets of 200
Schneider Electric

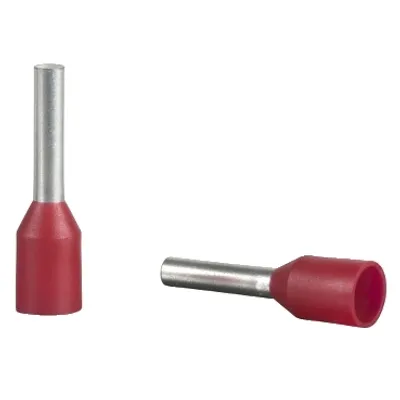

AZ5CE010DCable ends, Linergy TR cable ends, single conductor, red, 1mm², for insulated, medium size, 5 sets of 200
Schneider Electric
AZ5CE010Cable ends, Linergy TR cable ends, single conductor, red, 1mm², medium size, 5 sets of 200
Schneider Electric
AZ5CE007DCable ends, Linergy TR cable ends, single conductor, white, 0.75 mm², for insulated, medium size, 5 sets of 200
Schneider Electric
AZ5CE007Cable ends, Linergy TR cable ends, single conductor, white, 0.75 mm², medium size, 5 sets of 200
Schneider Electric
AZ5CE005DCable ends, Linergy TR cable ends, single conductor, white, 0.5mm², for insulated, medium size, 5 sets of 200
Schneider Electric

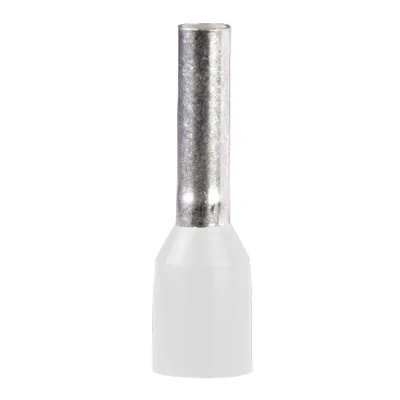

AZ5CE005Cable ends, Linergy TR cable ends, single conductor, white, 0.5mm², medium size, 5 sets of 200
Compare Linergy TR Cable ends
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Cable cross section | Colour | Bezel size | Tube diameter | Net weight |
|---|---|---|---|---|---|
| AZ5DE0071 | 0.75 mm² | Blue | Ø 2.8 x 5 mm | 1.8 mm | 0.12 kg |
| AZ5DE007 | 0.75 mm² | Blue | Ø 2.8 x 5 mm | 2 mm | 0.13 kg |
| AZ5DE005 | 0.5 mm² | White | Ø 2.5 x 4.7 mm | 1.7 mm | 0.11 kg |
| AZ5CE025D | 2.5 mm² | Blue | Ø 4.7 mm | 2.5 mm | 0.16 kg |
| AZ5CE025 | 2.5 mm² | Grey | Ø 4.7 mm | 2.5 mm | 0.16 kg |
| AZ5CE015D | 1.5 mm² | Black | Ø 4 mm | 2 mm | 0.18 kg |
| AZ5CE015 | 1.5 mm² | Black | Ø 4 mm | 2 mm | 0.18 kg |
| AZ5CE010D | 1 mm² | Red | Ø 3.5 mm | 1.7 mm | 0.165 kg |
| AZ5CE010 | 1 mm² | Red | Ø 3.5 mm | 1.7 mm | 0.165 kg |
| AZ5CE007D | 0.75 mm² | Grey | Ø 3.3 mm | 1.5 mm | 0.15 kg |
| AZ5CE007 | 0.75 mm² | Blue | Ø 3.3 mm | 1.5 mm | 0.15 kg |
| AZ5CE005D | 0.5 mm² | White | Ø 3.1 mm | 1.3 mm | 0.14 kg |
| AZ5CE005 | 0.5 mm² | White | Ø 3.1 mm | 1.3 mm | 0.14 kg |
Common to all listed parts
| Range of product | Linergy |
| Product or component type | Cable end |
| Cable end size | Medium |
| Additional information | Without marker tag holder |
| Bezel material | Halogen-free plastic |
| Tube material | Copper conforming to ISO 1337 |
| Tube length | 8 mm |
| Ambient air temperature for operation | -20…105 °C |
