Schneider Electric

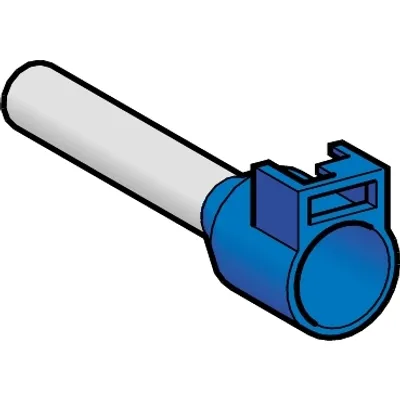

DZ5CA162DCable end, Linergy TR cable ends, single conductor, blue, 16mm², for insulated cable, medium size, 10 sets of 100
Linergy TR Cable ends Parts
Schneider Electric
DZ5CA162Cable end, Linergy TR cable ends, single conductor, white, 16mm², medium size, for clip-in, 10 sets of 100
Schneider Electric

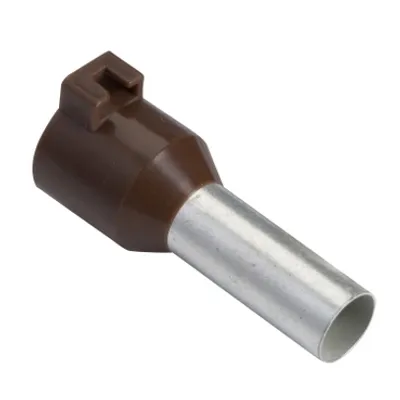

DZ5CA103Cable end, Linergy TR cable ends, single conductor, brown, 10mm², long size, for clip-in, 10 sets of 100
Schneider Electric

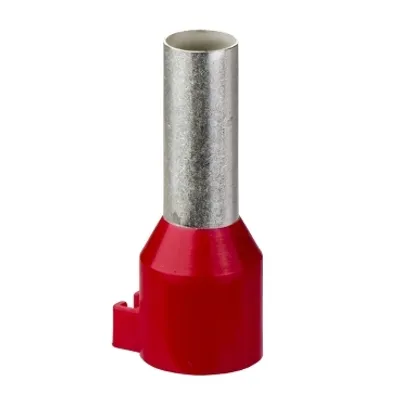

DZ5CA102DCable end, Linergy TR cable ends, single conductor, red, 10mm², for insulated cable, medium size, 10 sets of 100
Schneider Electric
DZ5CA102Cable end, Linergy TR cable ends, single conductor, brown, 10mm², medium size, 10 sets of 100
Schneider Electric

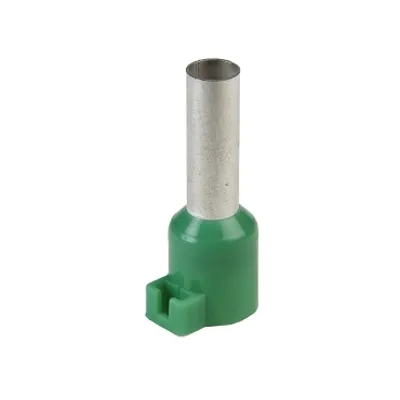

DZ5CA063Cable end, Linergy TR cable ends, Single conductor, Green, 6mm², medium size, 10 sets of 100
Schneider Electric
DZ5CA062Cable end, Linergy TR cable ends, Single conductor, Green, 6mm², medium size, 10 sets of 100
Schneider Electric

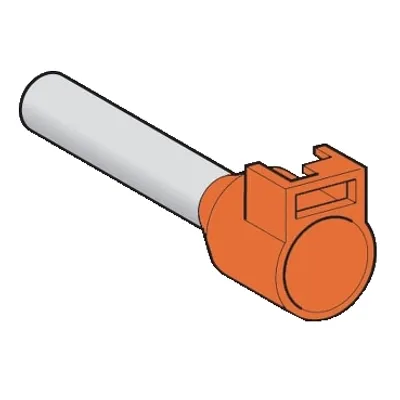

DZ5CA043Cable end, Linergy TR cable ends, Single conductor, Orange, 4mm², long size, for clip-in type, 10 sets of 100
Schneider Electric
DZ5CA042Cable end, Linergy TR cable ends, Single conductor, orange, 4mm², medium size, markable, 10 sets of 100
Schneider Electric

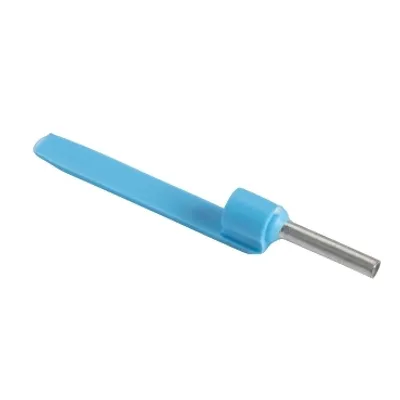

DZ5CA025DCable end, Linergy TR cable ends, Single conductor, blue, 2.5mm², medium size, markable, insulated, 10 sets of 100
Schneider Electric

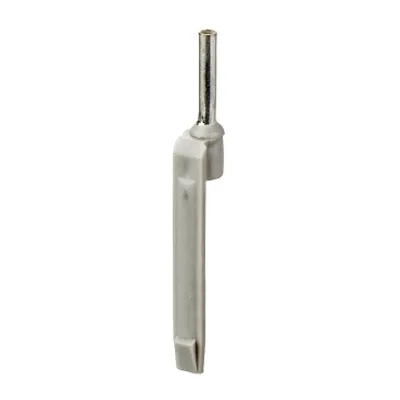

DZ5CA025Cable end, Linergy TR cable ends, Single conductor, grey, 2.5mm², medium size, markable, 10 sets of 100
Schneider Electric

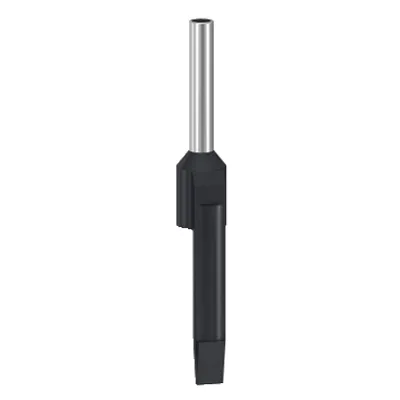

DZ5CA015Cable end, Linergy TR cable ends, Single conductor, black, 1.5mm², medium size, markable, 10 sets of 100
Schneider Electric

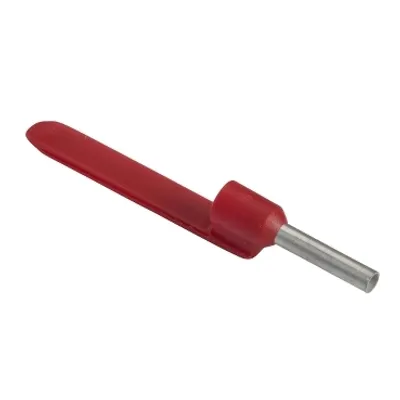

DZ5CA010Cable end, Linergy TR cable ends, Single conductor, red, 1mm², medium size, markable, 10 sets of 100
Schneider Electric
DZ5CA007Cable end, Linergy TR cable ends, Single conductor, blue, 0.75mm², medium size, markable, 10 sets of 100
Schneider Electric

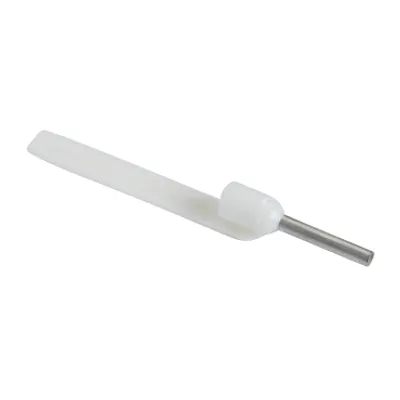

DZ5CA005Cable end, Linergy TR cable ends, Single conductor, white, 0.5mm², medium size, markable, 10 sets of 100
Schneider Electric

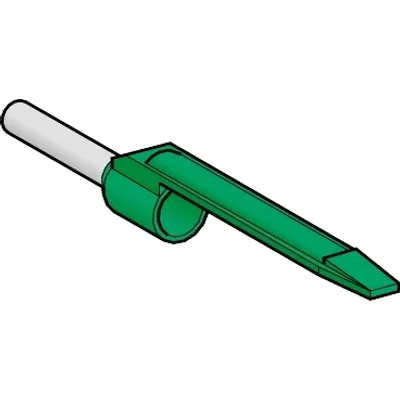

DZ5CA003Cable end, Linergy TR cable ends, Single conductor, green, 0.34mm², medium size, markable, 10 sets of 100
Schneider Electric

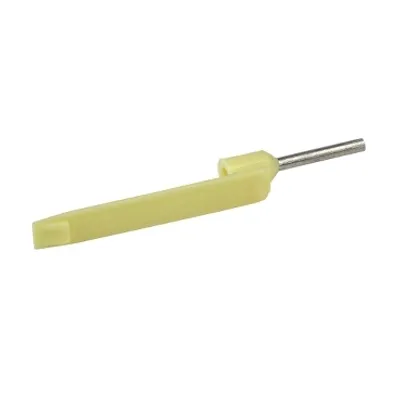

DZ5CA002Cable end, Linergy TR cable ends, Single conductor, yellow,.25mm², medium size, markable, 10 sets of 100
Schneider Electric
AZ5DE0255Cable end, Linergy TR cable ends, twin conductor, grey, 2x2.5mm², medium size, set of 1000
Schneider Electric
AZ5DE025Cable end, Linergy TR cable ends, twin conductor, grey, 2.5mm², for insulated cable, medium size, 5 sets of 50
Schneider Electric

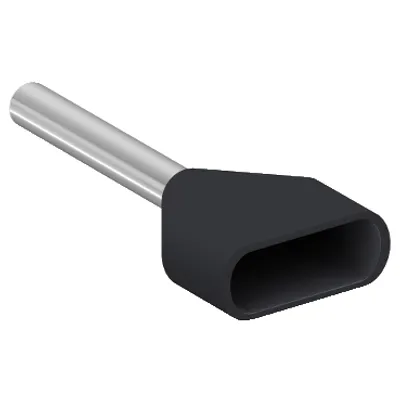

AZ5DE0151Cable end, Linergy TR cable ends, twin conductor, black, 2x1.5mm², medium size, set of 1000
Schneider Electric
AZ5DE015Cable end, Linergy TR cable ends, twin conductor, black, 1.5mm², for insulated cable, medium size, 5 sets of 50
Schneider Electric
AZ5DE0101Cable end, Linergy TR cable ends, twin conductor, red, 2x1mm², medium size, set of 1000
Schneider Electric

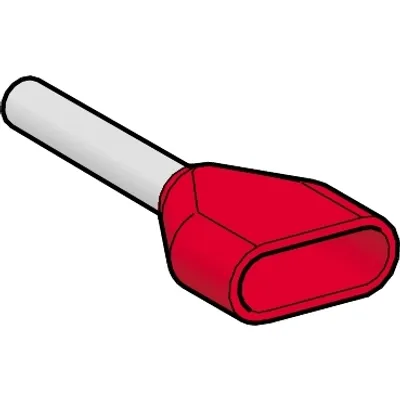

AZ5DE010Cable end, Linergy TR cable ends, twin conductor, red, 1mm², medium size, 5 sets of 50
Schneider Electric

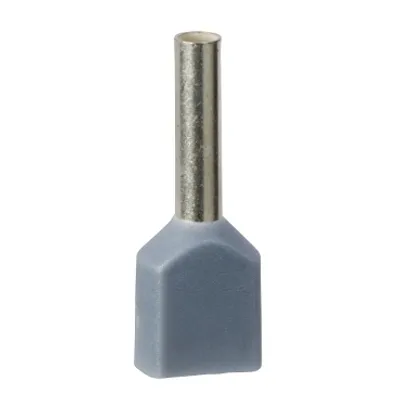

AZ5DE007DCable end, Linergy TR cable ends, twin conductor, grey, 0.75mm², for insulated cable, medium size, 5 sets of 50
Compare Linergy TR Cable ends
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Cable cross section | AWG gauge | Bezel size | Tube diameter | Net weight |
|---|---|---|---|---|---|
| DZ5CA162D | 16 mm² | AWG 6 | Ø 9.6 mm | 6.2 mm | 0.08 kg |
| DZ5CA162 | 16 mm² | AWG 6 | Ø 9.6 mm | 6.2 mm | 0.078 kg |
| DZ5CA103 | 10 mm² | AWG 8 | Ø 8.4 mm | 4.9 mm | 0.085 kg |
| DZ5CA102D | 10 mm² | AWG 8 | Ø 8.4 mm | 4.9 mm | 0.06 kg |
| DZ5CA102 | 10 mm² | AWG 8 | Ø 8.4 mm | 4.9 mm | 0.057 kg |
| DZ5CA063 | 6 mm² | AWG 10 | Ø 6.9 mm | 3.9 mm | 0.065 kg |
| DZ5CA062 | 6 mm² | AWG 10 | Ø 6.9 mm | 3.9 mm | 0.045 kg |
| DZ5CA043 | 4 mm² | AWG 12 | Ø 5.4 mm | 3.2 mm | 0.46 kg |
| DZ5CA042 | 4 mm² | AWG 12 | Ø 5.4 mm | 3.2 mm | 0.3 kg |
| DZ5CA025D | 2.5 mm² | AWG 14 | Ø 4.7 mm | 2.5 mm | 0.25 kg |
| DZ5CA025 | 2.5 mm² | AWG 14 | Ø 4.7 mm | 2.5 mm | 0.25 kg |
| DZ5CA015 | 1.5 mm² | AWG 16 | Ø 4 mm | 2 mm | 0.18 kg |
| DZ5CA010 | 1 mm² | AWG 18 | Ø 3.5 mm | 1.7 mm | 0.16 kg |
| DZ5CA007 | 0.75 mm² | AWG 20 | Ø 3.3 mm | 1.5 mm | 0.16 kg |
| DZ5CA005 | 0.5 mm² | AWG 22 | Ø 3.1 mm | 1.3 mm | 0.16 kg |
| DZ5CA003 | 0.34 mm² | AWG 24 | Ø 2.5 mm | 1.1 mm | 0.14 kg |
| DZ5CA002 | 0.25 mm² | AWG 26 | Ø 2.3 mm | 1.1 mm | 0.14 kg |
| AZ5DE0255 | 2.5 mm² | AWG 14 | Ø 4.2 x 7.8 mm | 2.9 mm | 0.09 kg |
| AZ5DE025 | 2.5 mm² | AWG 14 | Ø 4.2 x 7.8 mm | 3.2 mm | 0.145 kg |
| AZ5DE0151 | 1.5 mm² | AWG 16 | Ø 3.6 x 6.6 mm | 2.3 mm | 0.145 kg |
| AZ5DE015 | 1.5 mm² | AWG 16 | Ø 3.6 x 6.6 mm | 2.5 mm | 0.155 kg |
| AZ5DE0101 | 1 mm² | AWG 18 | Ø 3.4 x 5.4 mm | 2.05 mm | 0.13 kg |
| AZ5DE010 | 1 mm² | AWG 18 | Ø 3.4 x 5.4 mm | 2.25 mm | 0.14 kg |
| AZ5DE007D | 0.75 mm² | AWG 20 | Ø 2.8 x 5 mm | 2 mm | 0.13 kg |
Common to all listed parts
| Range of product | Linergy |
| Product or component type | Cable end |
| Bezel material | Halogen-free plastic |
| Tube material | Copper conforming to ISO 1337 |
| Ambient air temperature for operation | -20…105 °C |
