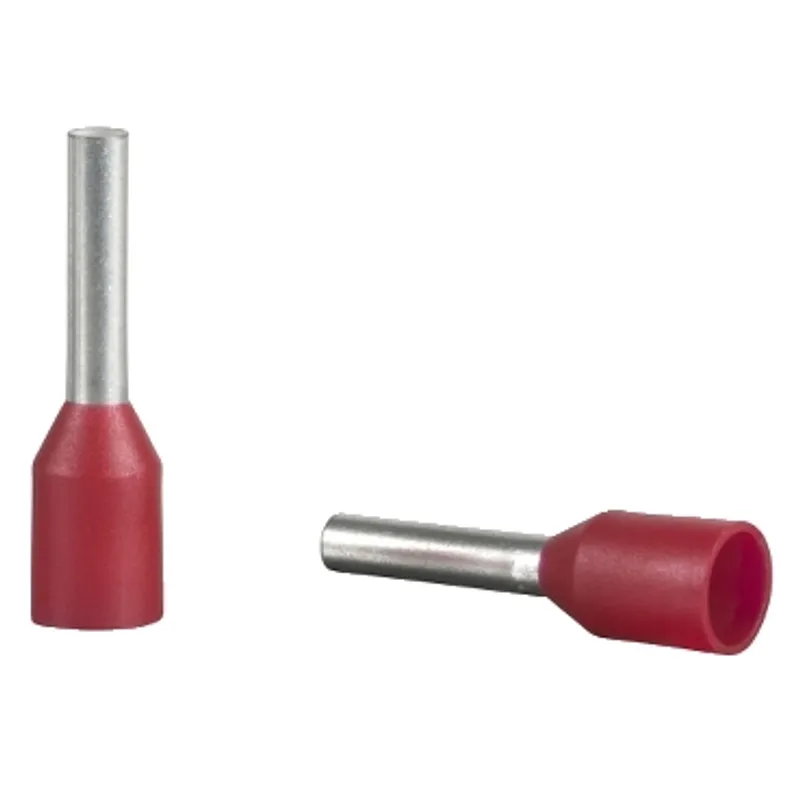

Schneider Electric AZ5CE010
Cable ends, Linergy TR cable ends, single conductor, red, 1mm², medium size, 5 sets of 200
- MPN
- AZ5CE010
- EAN
- 3389110544022
- Category
- Linergy TR Cable ends
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Schneider Electric AZ5CE010?
Linergy cable end Single insulated without marker tag holder. It applied to single conductor with 1 mm² cable cross section. It has red surface treatment. It is medium size without marker tag holder. Packing by dispenser pack and quantity per 5 sets of 200. Ambient air temperature for operation is from -20 to 105 °C. It conforms to NF C 63-023 standard. It is UL certified. It is compliant with Green Premium (RoHS/REACH).
Specifications
Specifications
| Range of product | Linergy |
| Product or component type | Cable end |
| Cable end size | Medium |
| Standards | NF C 63-023 |
| Type of packing | Dispenser pack |
| Quantity per set | 5 sets of 200 |
| Cable cross section | 1 mm² |
| Cable end type | Single conductor |
| Additional information | Without marker tag holder |
| Colour | Red |
| Bezel material | Halogen-free plastic |
| Tube material | Copper conforming to ISO 1337 |
| Number of cables | 1 |
| AWG gauge | AWG 18 |
| Bezel size | Ø 3.5 mm |
| Tube diameter | 1.7 mm |
| Length | 14 mm |
| Tube length | 8 mm |
| Net weight | 0.165 kg |
| Product certifications | UL |
| Ambient air temperature for operation | -20…105 °C |
Packaging
| Package 1 | 1 PCE, 1.400 cm × 0.400 cm × 0.400 cm (L × W × H), 0.100 g |
| Package 2 | 1000 BB1, 12.500 cm × 7.000 cm × 13.000 cm (L × W × H), 152.000 g |
| Package 3 | 40000 S04, 60.000 cm × 40.000 cm × 30.000 cm (L × W × H), 6.914 kg |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
AZ5CE010: frequently asked questions
When can AZ5CE010 be shipped?
AZ5CE010 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up AZ5CE010 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for AZ5CE010 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for AZ5CE010, subject to availability and destination.
