Schneider Electric
DZ5CE010L12Cable ends, Linergy TR cable ends, single conductor, red, long size, 10 sets of 100
Linergy TR Cable ends Parts
Schneider Electric

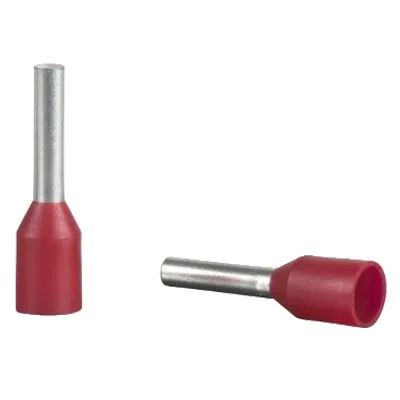

DZ5CE010DCable ends, Linergy TR cable ends, single conductor, red, 1mm², for insulated cable, medium size, 10 sets of 100
Schneider Electric
DZ5CE010Cable ends, Linergy TR cable ends, single conductor, red, 1mm², medium size, 10 sets of 100
Schneider Electric
DZ5CE007L6Cable ends, Linergy TR cable ends, single conductor, blue, 0.75mm², for insulated cable, short size, 10 sets of 100
Schneider Electric

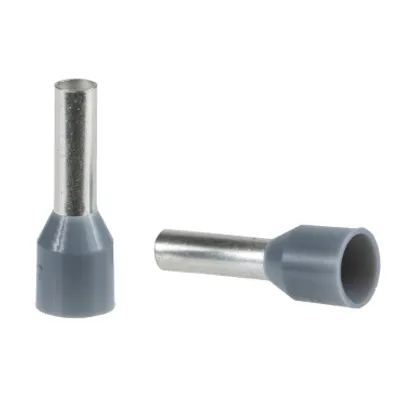

DZ5CE007DCable ends, Linergy TR cable ends, single conductor, grey, 0.75mm², for insulated cable, 10 sets of 100
Schneider Electric
DZ5CE007Cable ends, Linergy TR cable ends, single conductor, grey, 0.75mm², 10 sets of 100
Schneider Electric

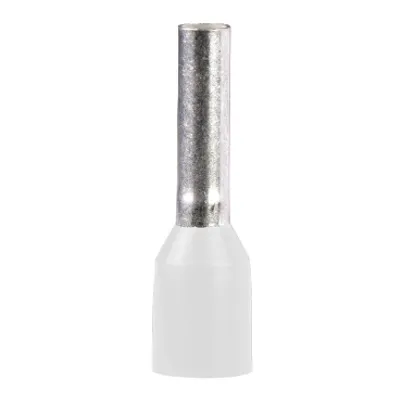

DZ5CE005L6Cable ends, Linergy TR cable ends, single conductor, white, 0.5mm², for insulated cable, short size, 10 sets of 100
Schneider Electric
DZ5CE005DCable ends, Linergy TR cable ends, single conductor, white, 0.5mm², for insulated cable, medium size, 10 sets of 100
Schneider Electric
DZ5CE005Cable ends, Linergy TR cable ends, single conductor, white, 0.5mm², medium size, 10 sets of 100
Schneider Electric
DZ5CE003L6Cable ends, Linergy TR cable ends, single conductor, green, 0.34mm², short size, 10 sets of 100
Schneider Electric

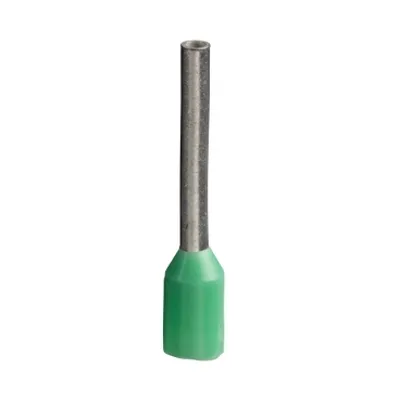

DZ5CE003Cable ends, Linergy TR cable ends, single conductor, green, 0.34mm², medium size, 10 sets of 100
Schneider Electric
DZ5CE002L6Cable ends, Linergy TR cable ends, single conductor, yellow, 0.25mm², short size, 10 sets of 100
Schneider Electric

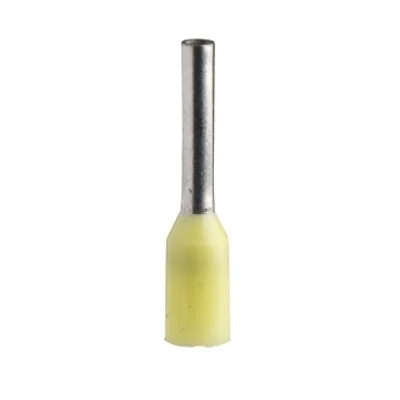

DZ5CE002Cable ends, Linergy TR cable ends, single conductor, yellow, 0.25mm², medium size, 10 sets of 100
Schneider Electric
DZ5CA503DCable end, Linergy TR cable ends, single conductor, blue, 50 mm², long size, clip-in type, for insulated clable
Schneider Electric
DZ5CA503Cable end, Linergy TR cable ends, single conductor, blue, 50 mm², long size, for clip-in type, 10 sets of 100
Schneider Electric

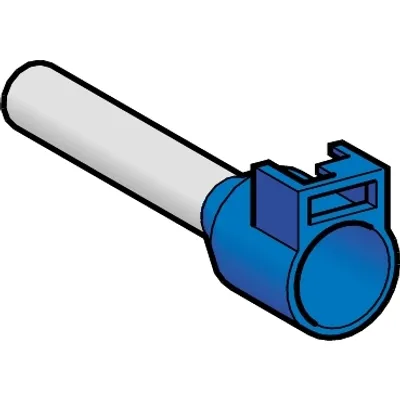

DZ5CA502DCable end, Linergy TR cable ends, single conductor, blue, 50 mm², medium size, for insulated, clip-in type, 1 bags
Schneider Electric
DZ5CA502Cable end, Linergy TR cable ends, single conductor, blue, medium size, 50 mm², clip-in type, 10 sets of 100
Schneider Electric
DZ5CA353DCable end, Linergy TR cable ends, single conductor, red, 35 mm², long size, for insulated, clip-in type, 10 sets of 100
Schneider Electric

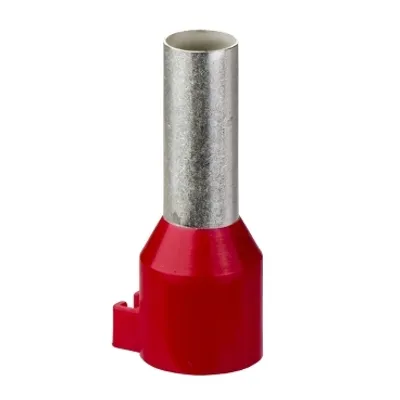

DZ5CA353Cable end, Linergy TR cable ends, single conductor, red, 35mm², long size, for clip-in type, 10 sets of 100
Schneider Electric
DZ5CA352Cable end, Linergy TR cable ends, single conductor, red, 35 mm², medium size, clipin tag holder, 10 sets of 100
Schneider Electric
DZ5CA253DCable end, Linergy TR cable ends, single conductor, yellow, 25mm², for insulated cable, medium size, 10 sets of 100
Schneider Electric

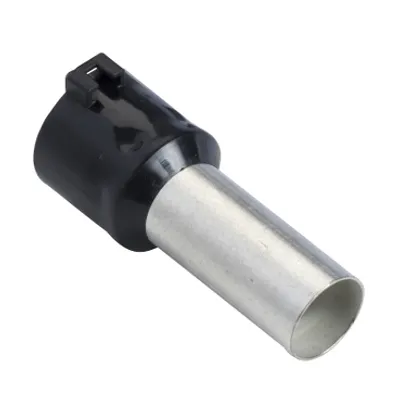

DZ5CA253Cable end, Linergy TR cable ends, single conductor, black, 25mm², medium size, 10 sets of 100
Schneider Electric
DZ5CA163DCable end, Linergy TR cable ends, single conductor, blue, 16mm², for insulated cable, long size, 10 sets of 100
Schneider Electric
DZ5CA163Cable end, Linergy TR cable ends, single conductor, white, 16mm², long size, for clip-in, 10 sets of 100
Compare Linergy TR Cable ends
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Cable cross section | AWG gauge | Bezel size | Length | Net weight |
|---|---|---|---|---|---|
| DZ5CE010L12 | 1 mm² | AWG 18 | Ø 3.5 mm | 18 mm | 0.15 kg |
| DZ5CE010D | 1 mm² | AWG 18 | Ø 3.5 mm | 14 mm | 0.1 kg |
| DZ5CE010 | 1 mm² | AWG 18 | Ø 3.5 mm | 14 mm | 0.1 kg |
| DZ5CE007L6 | 0.75 mm² | AWG 20 | Ø 3.3 mm | 12 mm | 0.095 kg |
| DZ5CE007D | 0.75 mm² | AWG 20 | Ø 3.3 mm | 14 mm | 0.1 kg |
| DZ5CE007 | 0.75 mm² | AWG 20 | Ø 3.3 mm | 14 mm | 0.1 kg |
| DZ5CE005L6 | 0.5 mm² | AWG 22 | Ø 3.1 mm | 12 mm | 0.085 kg |
| DZ5CE005D | 0.5 mm² | AWG 22 | Ø 3.1 mm | 14 mm | 0.09 kg |
| DZ5CE005 | 0.5 mm² | AWG 22 | Ø 3.1 mm | 14 mm | 0.09 kg |
| DZ5CE003L6 | 0.34 mm² | AWG 24 | Ø 2.5 mm | 10 mm | 0.055 kg |
| DZ5CE003 | 0.34 mm² | AWG 24 | Ø 2.5 mm | 12 mm | 0.06 kg |
| DZ5CE002L6 | 0.25 mm² | AWG 26 | Ø 2.3 mm | 10 mm | 0.055 kg |
| DZ5CE002 | 0.25 mm² | AWG 26 | Ø 2.3 mm | 12 mm | 0.06 kg |
| DZ5CA503D | 50 mm² | AWG 1/0 | Ø 16 mm | 40 mm | 0.072 kg |
| DZ5CA503 | 50 mm² | AWG 1/0 | Ø 16 mm | 40 mm | 0.074 kg |
| DZ5CA502D | 50 mm² | AWG 1/0 | Ø 16 mm | 36 mm | 0.06 kg |
| DZ5CA502 | 50 mm² | AWG 1/0 | Ø 16 mm | 36 mm | 0.06 kg |
| DZ5CA353D | 35 mm² | AWG 2 | Ø 13.5 mm | 39 mm | 0.06 kg |
| DZ5CA353 | 35 mm² | AWG 2 | Ø 13.5 mm | 39 mm | 0.06 kg |
| DZ5CA352 | 35 mm² | AWG 2 | Ø 13.5 mm | 30 mm | 0.054 kg |
| DZ5CA253D | 25 mm² | AWG 4 | Ø 12 mm | 36 mm | 0.156 kg |
| DZ5CA253 | 25 mm² | AWG 4 | Ø 12 mm | 36 mm | 0.156 kg |
| DZ5CA163D | 16 mm² | AWG 6 | Ø 9.6 mm | 28 mm | 0.1 kg |
| DZ5CA163 | 16 mm² | AWG 6 | Ø 9.6 mm | 28 mm | 0.1 kg |
Common to all listed parts
| Range of product | Linergy |
| Product or component type | Cable end |
| Cable end type | Single conductor |
| Bezel material | Halogen-free plastic |
| Tube material | Copper conforming to ISO 1337 |
| Number of cables | 1 |
| Ambient air temperature for operation | -20…105 °C |
