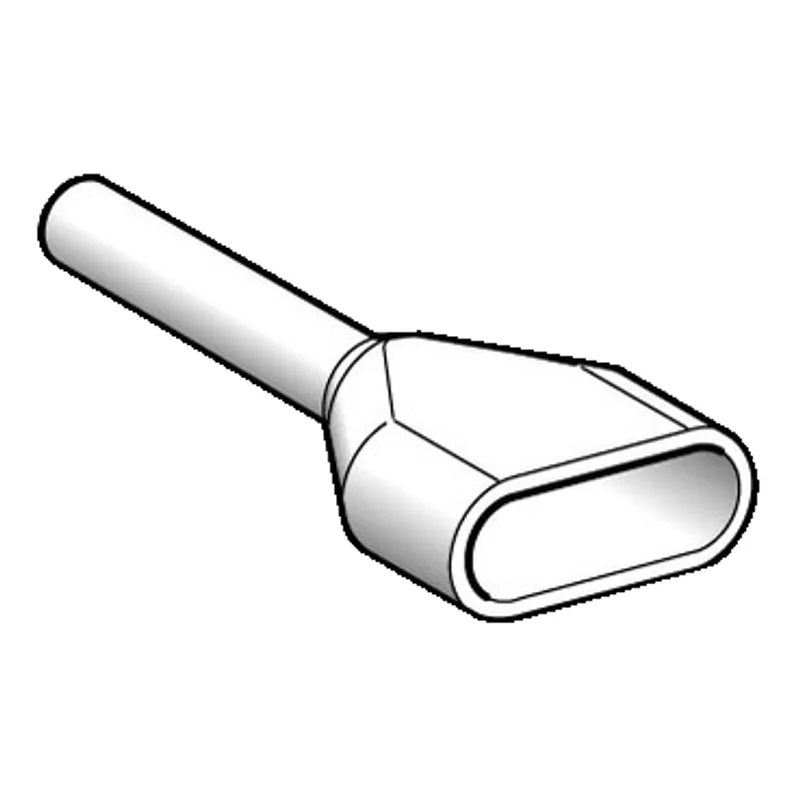

Schneider Electric AZ5DE005
Cable end, Linergy TR cable ends, twin conductor, white, 0.50mm², for insulated cable, medium size, 5 sets of 50
- MPN
- AZ5DE005
- EAN
- 3389110768060
- Category
- Linergy TR Cable ends
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Schneider Electric AZ5DE005?
Linergy cable end twin insulated without marker tag holder. It is applied to twin conductor with 0.50 mm² cable cross section. It has white surface treatment. It is medium size without marker tag holder. Packing by dispenser pack and quantity per 1 sets of 1000. Ambient air temperature for operation is from -20 to 105 °C. It conforms to NF C 63-023 standard. It is CCSAus certified. It is compliant with Green Premium (RoHS/REACH).
Specifications
Specifications
| Range of product | Linergy |
| Product or component type | Cable end |
| Cable end size | Medium |
| Standards | NF C 63-023 |
| Type of packing | Individual bag |
| Quantity per set | Set of 1000 |
| Cable cross section | 0.5 mm² |
| Cable end type | Twin conductor |
| Additional information | Without marker tag holder |
| Colour | White |
| Bezel material | Halogen-free plastic |
| Tube material | Copper conforming to ISO 1337 |
| Number of cables | 2 |
| AWG gauge | AWG 22 |
| Bezel size | Ø 2.5 x 4.7 mm |
| Tube diameter | 1.7 mm |
| Length | 18.5 mm |
| Tube length | 8 mm |
| Net weight | 0.11 kg |
| Product certifications | cCSAus |
| Ambient air temperature for operation | -20…105 °C |
Packaging
| Package 1 | 1 PCE, 1.400 cm × 0.400 cm × 0.400 cm (L × W × H), 0.100 g |
| Package 2 | 1000 BB1, 15.000 cm × 15.000 cm × 2.000 cm (L × W × H), 116.000 g |
| Package 3 | 30000 S02, 40.000 cm × 30.000 cm × 15.000 cm (L × W × H), 3.786 kg |
