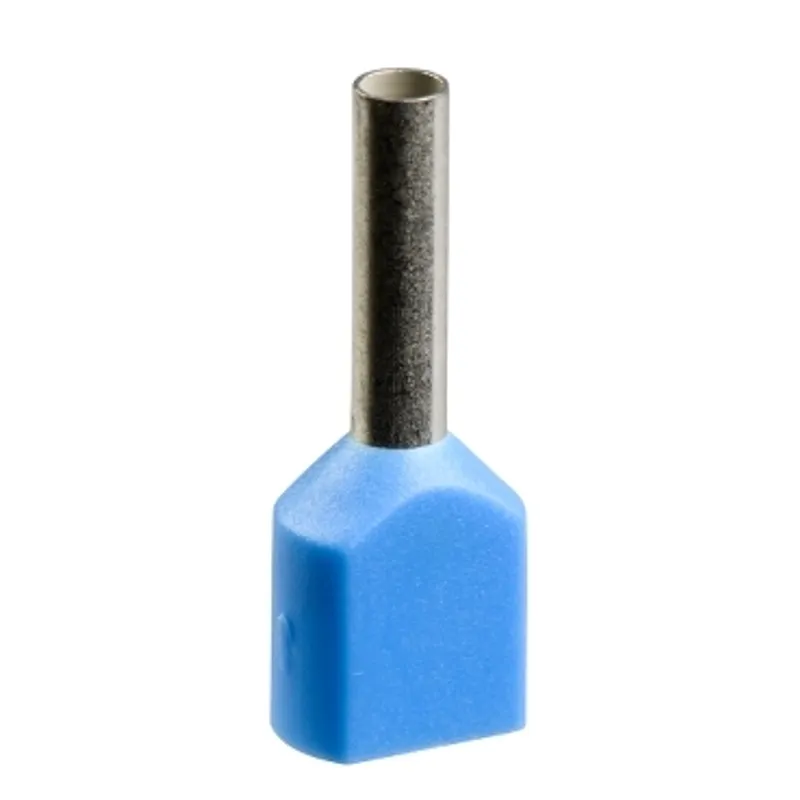

Schneider Electric AZ5DE007
Cable end, Linergy TR cable ends, twin conductor, blue, 0.75mm², for insulated cable, medium size, 5 sets of 50
- MPN
- AZ5DE007
- EAN
- 3389110515794
- Category
- Linergy TR Cable ends
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Schneider Electric AZ5DE007?
Linergy cable end twin insulated without marker tag holder. It is applied to twin conductor with 0.75 mm² cable cross section. It has blue surface treatment. It is medium size without marker tag holder. Packing by dispenser pack and quantity per 5 sets of 100. Ambient air temperature for operation is from -20 to 105 °C. It conforms to NF C 63-023 standard. It is CCSAus certified. It is compliant with Green Premium (RoHS/REACH).
Specifications
Specifications
| Range of product | Linergy |
| Product or component type | Cable end |
| Cable end size | Medium |
| Standards | NF C 63-023 |
| Type of packing | Dispenser pack |
| Quantity per set | 5 sets of 100 |
| Cable cross section | 0.75 mm² |
| Cable end type | Twin conductor |
| Additional information | Without marker tag holder |
| Colour | Blue |
| Bezel material | Halogen-free plastic |
| Tube material | Copper conforming to ISO 1337 |
| Number of cables | 2 |
| AWG gauge | AWG 20 |
| Bezel size | Ø 2.8 x 5 mm |
| Tube diameter | 2 mm |
| Length | 15 mm |
| Tube length | 8 mm |
| Net weight | 0.13 kg |
| Product certifications | cCSAus |
| Ambient air temperature for operation | -20…105 °C |
Packaging
| Package 1 | 1 PCE, 1.400 cm × 0.400 cm × 0.400 cm (L × W × H), 0.100 g |
| Package 2 | 500 BB1, 12.500 cm × 7.000 cm × 13.000 cm (L × W × H), 125.000 g |
| Package 3 | 20000 S04, 60.000 cm × 40.000 cm × 30.000 cm (L × W × H), 6.214 kg |
