Home / Schneider Electric / Linergy TR Cable ends / Schneider Electric AZ5CE025D
Schneider Electric

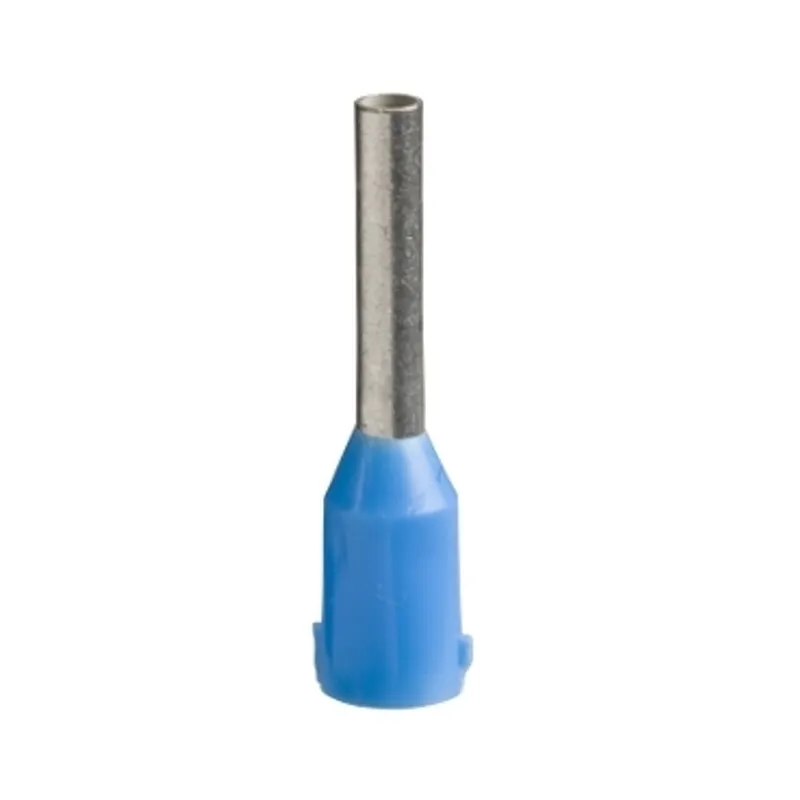

Schneider Electric AZ5CE025D

Cable ends, Linergy TR cable ends, single conductor, blue, 2.5mm², for insulated, medium size, 5 sets of 200

MPN
AZ5CE025D
EAN
3389110518917
Price and lead time confirmed within 1 business day

Discontinued by Schneider Electric — we can still source the original AZ5CE025D (new, used or refurbished, subject to availability). Request a quote below.

Request a Quote

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • Ships via

What is the Schneider Electric AZ5CE025D?

Linergy cable end Single insulated without marker tag holder. It applied to single conductor with 2.5 mm² cable cross section. It has blue surface treatment. It is medium size without marker tag holder. Packing by dispenser pack and quantity per 5 sets of 200. Ambient air temperature for operation is from -20 to 105 °C. It conforms to DIN 46228-4 standard. It is UL certified. It is compliant with Green Premium (RoHS/REACH).

Specifications

Specifications

Range of productLinergy
Product or component typeCable end
Cable end sizeMedium
StandardsDIN 46228-4
Type of packingDispenser pack
Quantity per set5 sets of 100
Cable cross section2.5 mm²
Cable end typeSingle conductor
Additional informationWithout marker tag holder
ColourBlue
Bezel materialHalogen-free plastic
Tube materialCopper conforming to ISO 1337
Number of cables1
AWG gaugeAWG 14
Bezel sizeØ 4.7 mm
Tube diameter2.5 mm
Length14 mm
Tube length8 mm
Net weight0.16 kg
Product certificationsUL
Ambient air temperature for operation-20…105 °C

Packaging

Package 11 PCE, 1.400 cm × 0.400 cm × 0.400 cm (L × W × H), 0.100 g
Package 2500 BB1, 12.500 cm × 7.000 cm × 13.000 cm (L × W × H), 126.000 g
Package 32500 S01, 40.000 cm × 15.000 cm × 15.000 cm (L × W × H), 819.000 g

Downloads & documentation

Official documents from Schneider Electric, downloaded directly from the manufacturer.

Data sheets & manuals

AZ5CE025D: frequently asked questions

Can I still buy the AZ5CE025D now that it is discontinued?

Yes. Schneider Electric has discontinued the AZ5CE025D, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.

When can AZ5CE025D be shipped?

AZ5CE025D is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up AZ5CE025D in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for AZ5CE025D and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for AZ5CE025D, subject to availability and destination.
