Process Displays Parts
Compare Process Displays
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Order code (Pepperl+Fuchs part number) | Display value | Operating voltage | Ambient temperature | Mass |
|---|---|---|---|---|---|
| TC-LCDC-8A-230VAC | 70103128 | digit height 13 mm | 115 ... 230 V AC, 50 ... 60 Hz UB | -20 ... 60 °C (-4 ... 140 °F) | approx. 200 g |
| TC-LCDC-8A-24VDC | 70103127 | digit height 13 mm | 18 ... 30 V DC UB | -20 ... 60 °C (-4 ... 140 °F) | approx. 200 g |

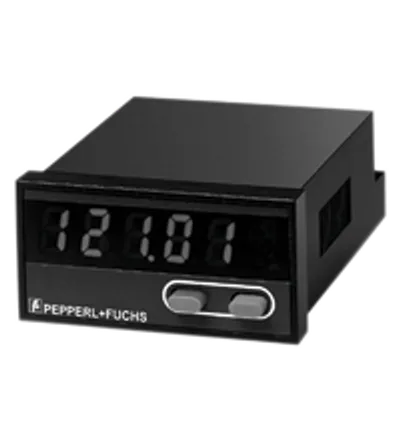

| DA5-IU-C | 70103276 | digit height 8 mm | 10 ... 30 V DC UB | -20 ... 65 °C (-4 ... 149 °F) | approx. 50 g |

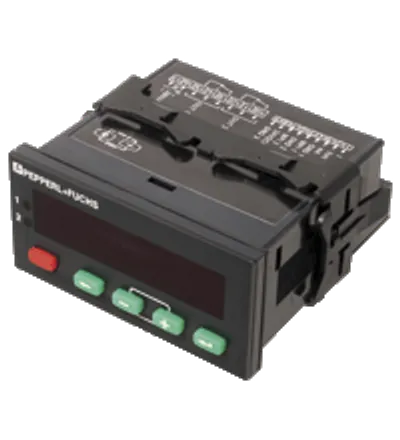

| DA6-IU-2K-C | 248579 | digit height 14 mm | 10 ... 30 V DC UB | -10 ... 50 °C (14 ... 122 °F) | 180 g |
| DA6-IU-2K-V | 247820 | digit height 14 mm | 90 ... 260 V AC UB | -10 ... 50 °C (14 ... 122 °F) | 180 g |

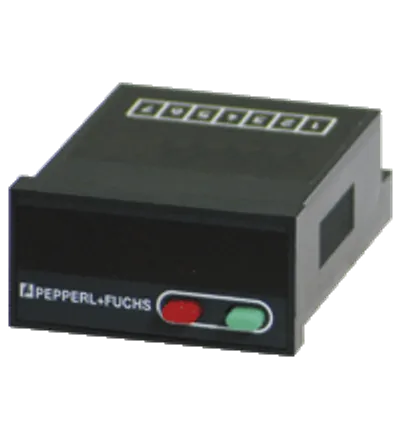

| KT-LED-24-TC-24VDC | 215126 | digit height 8 mm | 10 ... 30 V DC galvanically isolated UB | -20 ... 65 °C (-4 ... 149 °F) | approx. 45 g |
| KT-LED-24-PT100-24VDC | 215125 | digit height 8 mm | 10 ... 30 V DC galvanically isolated UB | -20 ... 65 °C (-4 ... 149 °F) | approx. 45 g |
Common to all listed parts
| Lifecycle | Active (current Pepperl+Fuchs product) |
