Pepperl Fuchs TC-LCDC-8A-24VDC
Counter/Timer/Tachometer
- MPN
- TC-LCDC-8A-24VDC
- Category
- Process Displays
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback

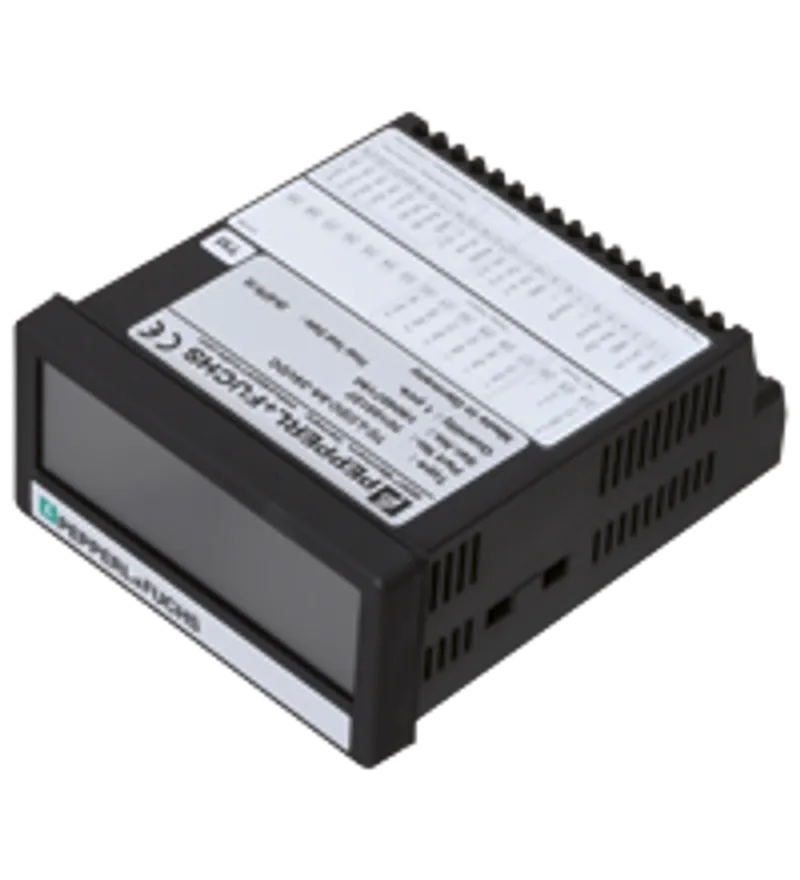

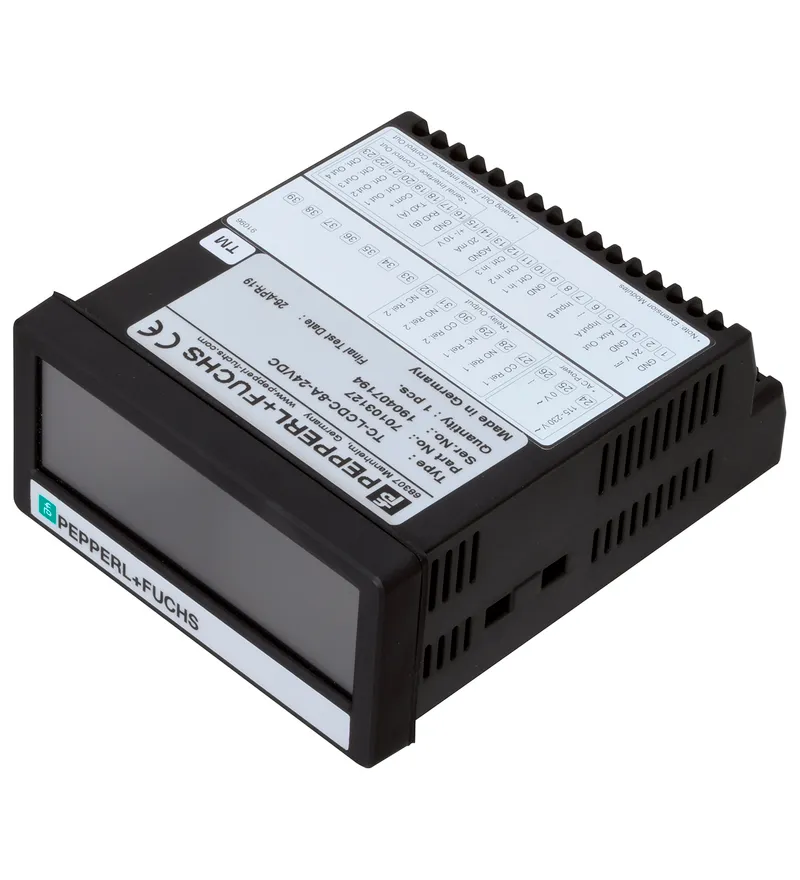

What is the Pepperl Fuchs TC-LCDC-8A-24VDC?
Multifunction device with operating modes such as rev counter, other counters, throughput time display, position display, timer for runtimes, stopwatch, and process display
HTL inputs for encoders and sensors with NPN, PNP and NAMUR characteristics
Bright, high-contrast display with event-dependent color versions
Emulation of a seven-segment display with symbols and units
Auxiliary voltage output 5/24 V DC for encoder supply
Linearization with 24 interpolation points
Numerous functions such as scaling, filters, and start-up override
Multifunction device with operating modes such as rev counter, other counters, throughput time display, position display, timer for runtimes, stopwatch, and process display, HTL inputs for encoders and sensors with NPN, PNP and NAMUR characteristics, Bright, high-contrast display with event-dependent color versions, Emulation of a seven-segment display with symbols and units, Auxiliary voltage output 5/24 V DC for encoder supply, Operating voltage: 18 ... 30 V DC
Specifications
Indicators/operating means
| Order code (Pepperl+Fuchs part number) | 70103127 |
| Type | Graphic LCD display with background lighting |
| Number of digits | 8 |
| Display value | digit height 13 mm |
| Display: Touch screen technology | resistive |
| Display: Colors | Capability to switch between red, green, and yellow |
| Display interval | -99999999 ... 99999999 |
| Accuracy | Measurement: ± 50 ppm, ± 1 digit |
| Lifecycle | Active (current Pepperl+Fuchs product) |
Electrical specifications
| Fusing | External: T 0.1 A |
| Operating voltage | 18 ... 30 V DC UB |
| Operating current | approx. 100 mA (Unladen) IB |
| Supply | Rotary encoder: 24 V DC (approx. 1 V less than UB) Max. 250 mA |
Interface
| Interface type | Serial RS-232 |
| Transfer rate | 9600, 19200, or 38400 baud |
Input 1

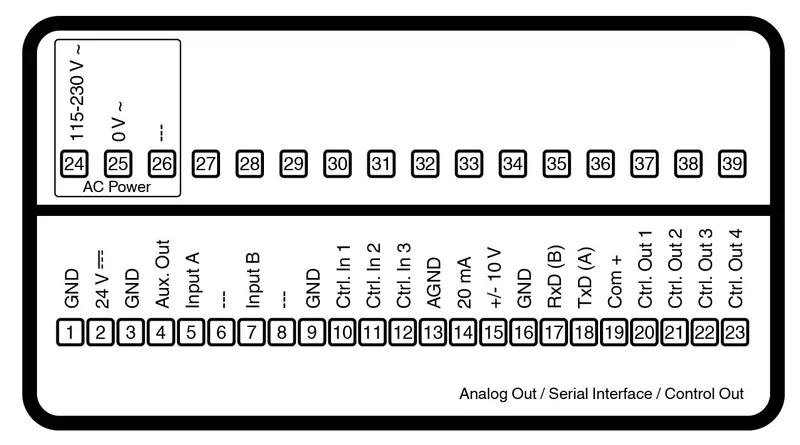

| Input type | Incremental PNP, NPN, NAMUR, or Tri-State |
| Input format | HTL (low: 0…3 V, high: 9…30 V) |
| Connection | Two spurs: A, B |
| Input frequency | max. 250 kHz |
| Load current | Max. 6 mA/Ri > 5 kΩ / 470 pF |
Input 2
| Input type | 3 x Control input |
| Input format | HTL, PNP (low: 0 V … 3 V, high: 9 V … 30 V) |
| Input frequency | max. 10 kHz |
| Load current | Max. 2 mA/Ri > 15 kΩ/470 pF |
Output 1
| Number/Type | Analog output Configurable as Current or voltage output |
| Current | 0/4 mA … 20 mA (Max. load: 270 Ω) |
| Voltage | -10 ... 10 V (Max. 2 mA) |
| Resolution | 16 bit ± 0.1 % at 0 °C … 45 °C ± 0.15 % at -20 °C … 0 °C und 45 °C … 60 °C |
| Response time | < 150 ms |
Output 2
| Output type | 4 x Control output |
| Output format | PNP |
| Output voltage | 5 V … 30 V (Depending on voltage at COM+) |
| Output current | max. 200 mA |
| Response time | < 1 ms |
Directive conformity
| Electromagnetic compatibility: Directive 2014/30/EU | EN 61326-1:2013 EN 55011:2016+A1:2017+A11:2020 |
| Low voltage: Directive 2014/35/EU | EN 61010-1:2010+A1:2019 EN 61010-2-201:2018 |
Ambient conditions
| Ambient temperature | -20 ... 60 °C (-4 ... 140 °F) |
| Storage temperature | -25 ... 70 °C (-13 ... 158 °F) |
Mechanical specifications
| Degree of protection | IP65 (front) IP20 (Connection side) |
| Connection | screw terminals 1.5 mm², AWG 16 |
| Material: Housing | ABS, UL 94 V-0 |

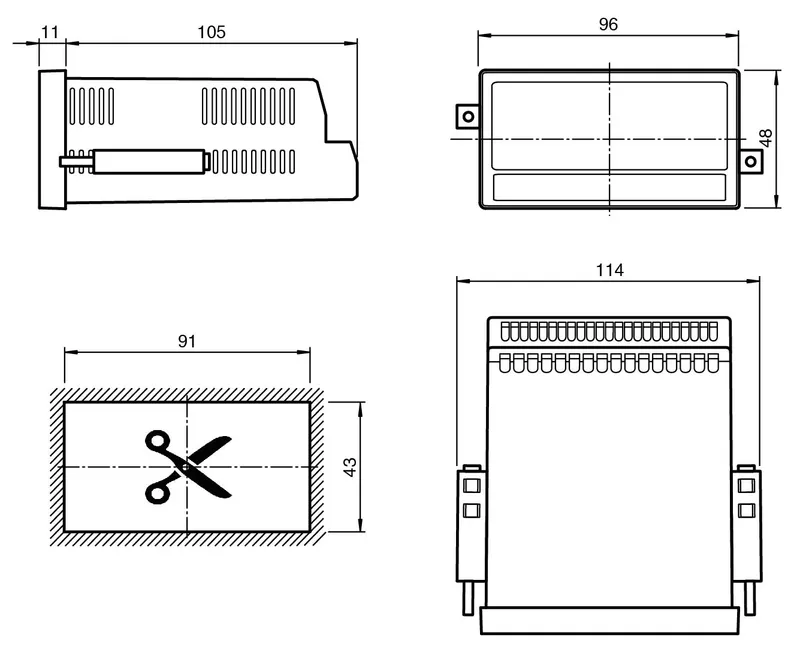

| Installation | Panel mount Cutout W x H: 91 x 43 mm |
| Mass | approx. 200 g |
| Dimensions: Height | 48 mm |
| Dimensions: Width | 96 mm |
| Dimensions: Depth | 116 mm |
