Pepperl Fuchs DA5-IU-C
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Process Displays |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can DA5-IU-C be shipped?
DA5-IU-C is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up DA5-IU-C in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for DA5-IU-C and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for DA5-IU-C, subject to availability and destination.

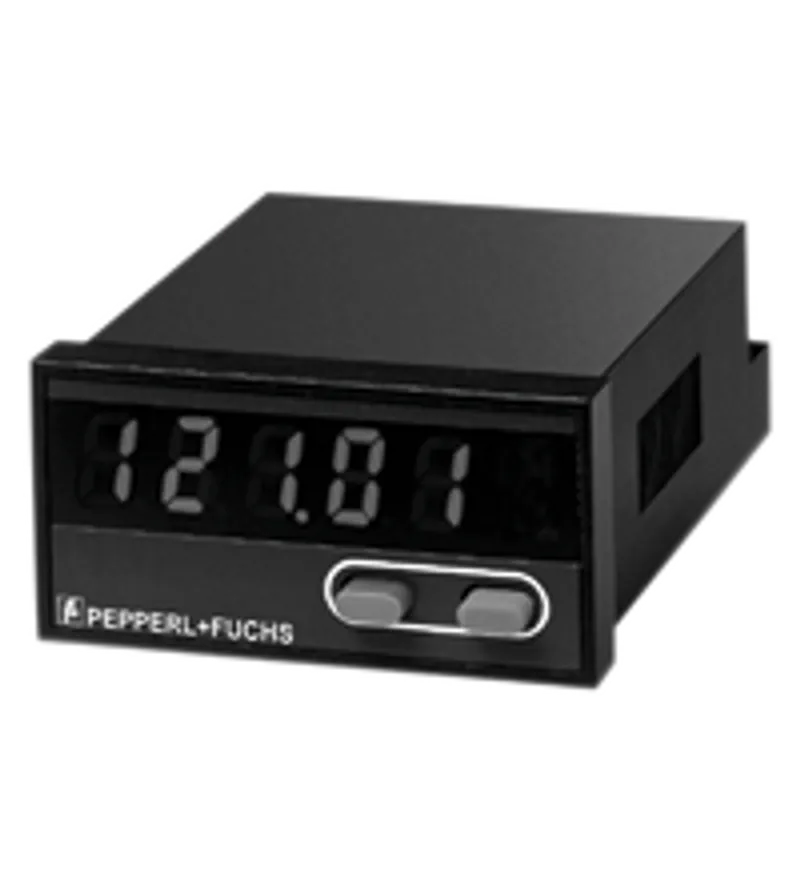

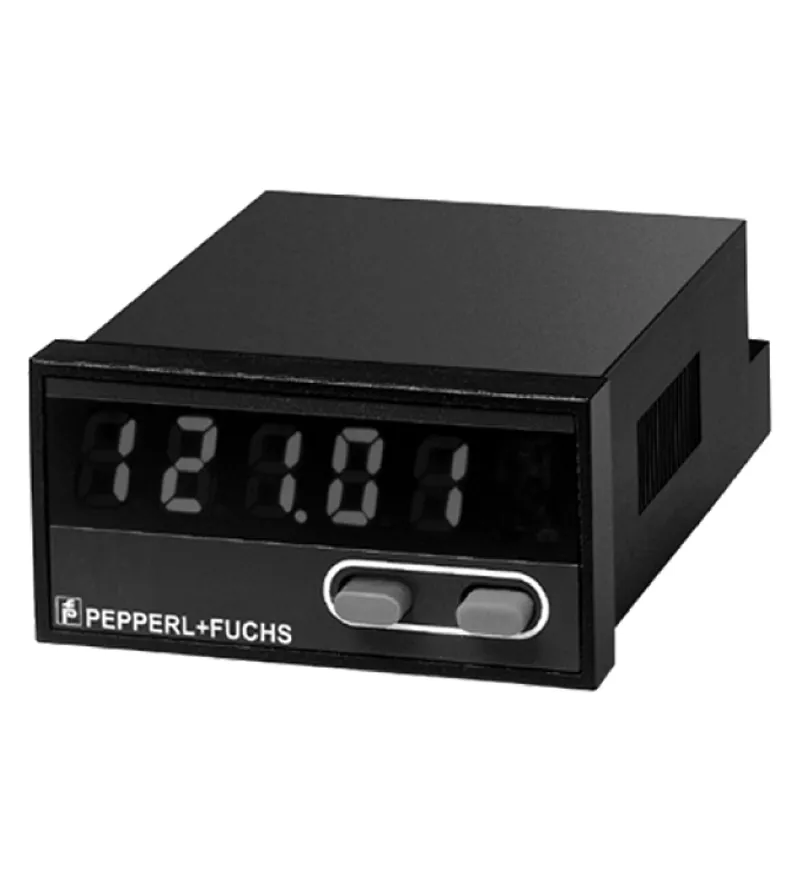

Process indicator. Bright, high contrast 5-digit LED indicator, Leading zero suppression, Adjustable decimal point, Maximum- and minimium-value display, Integrated counter with specific scaling, Operating voltage: 10 ... 30 V DC, Dimensions: 48 mm x 24 mm x 65 mm. Measuring frequency: 10 measurements per second. Pre-selection: none. Data storage: 106 storage cycles or 10 years, EEPROM. Programming: keypad-driven menu. Type: 7-segment LED display, red. Number of digits: 5. Display value: digit height 8 mm. Key interlock: -. Display interval: -19999 ... 99999. Decimal point: freely adjustable. Resolution: 14 Bit. Scale factor: via linear characteristic curve. Reset: maximum value, manually. Operating voltage: 10 ... 30 V DC. Power consumption: 1.5 VA. Impedance: 1 MOhm. Voltage: max. 30 DC. Analog voltage input: 0 ... 10 V / 2 ... 10 V DC. Analog current input: 0 ... 20 mA / 4 ... 20 mA. Accuracy: < 0.1 % of the total measuring range at 20 °C. Temperature influence: < 70 ppm/K ambient conditions. Ambient temperature: -20 ... 65 °C (-4 ... 149 °F). Storage temperature: -25 ... 70 °C (-13 ... 158 °F). Relative humidity: ≤ 80 % (noncondensing). Degree of protection: IP65 (front). Connection: 7-pin screw terminal max. core cross section 0.34 ... 1.5 mm2. Mass: approx. 50 g. Dimensions: 48 mm x 24 mm x 65 mm. Mounting: latch fastener/mounting frame
Specifications
General specifications
| Measuring frequency | 10 measurements per second |
| Pre-selection | none |
| Data storage | 106 storage cycles or 10 years, EEPROM |
| Programming | keypad-driven menu |
Indicators/operating means
| Type | 7-segment LED display, red |
| Number of digits | 5 |
| Display value | digit height 8 mm |
| Key interlock | - |
| Display interval | -19999 ... 99999 |
| Decimal point | freely adjustable |
| Resolution | 14 Bit |
| Scale factor | via linear characteristic curve |
| Reset | maximum value, manually |
Electrical specifications
| Operating voltage | 10 ... 30 V DC UB |
| Power consumption | 1.5 VA P0 |
Input
| Impedance | 1 MOhm |
| Voltage | max. 30 DC |
| Analog voltage input | 0 ... 10 V / 2 ... 10 V DC |
| Analog current input | 0 ... 20 mA / 4 ... 20 mA |
| Accuracy | < 0.1 % of the total measuring range at 20 °C |
| Temperature influence | < 70 ppm/K ambient conditions |
Ambient conditions
| Ambient temperature | -20 ... 65 °C (-4 ... 149 °F) |
| Storage temperature | -25 ... 70 °C (-13 ... 158 °F) |
| Relative humidity | ≤ 80 % (noncondensing) |
Mechanical specifications
| Degree of protection | IP65 (front) |
| Connection | 7-pin screw terminal max. core cross section 0.34 ... 1.5 mm2 |
| Mass | approx. 50 g |

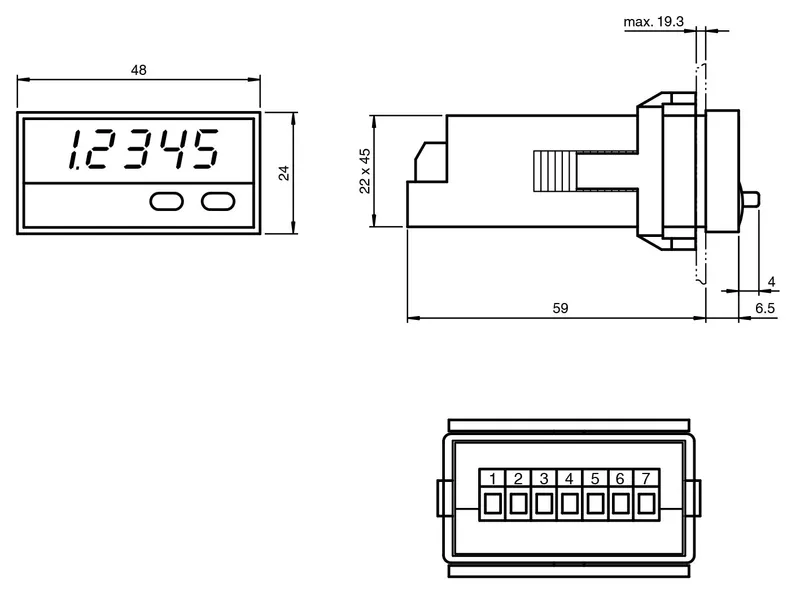

| Dimensions | 48 mm x 24 mm x 65 mm |
| Mounting | latch fastener/mounting frame |
