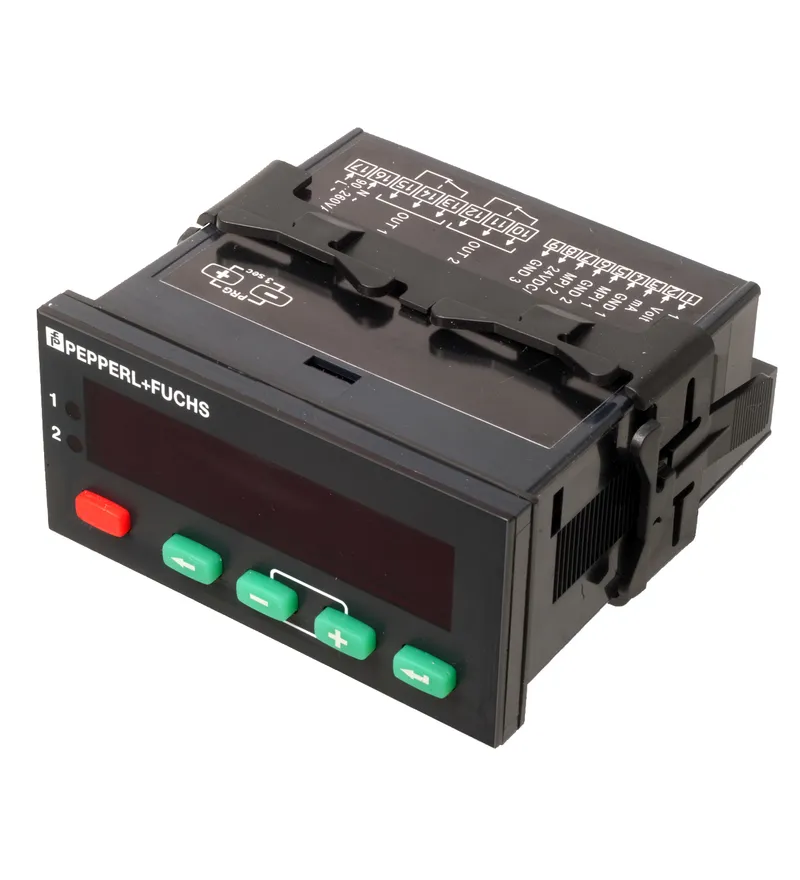

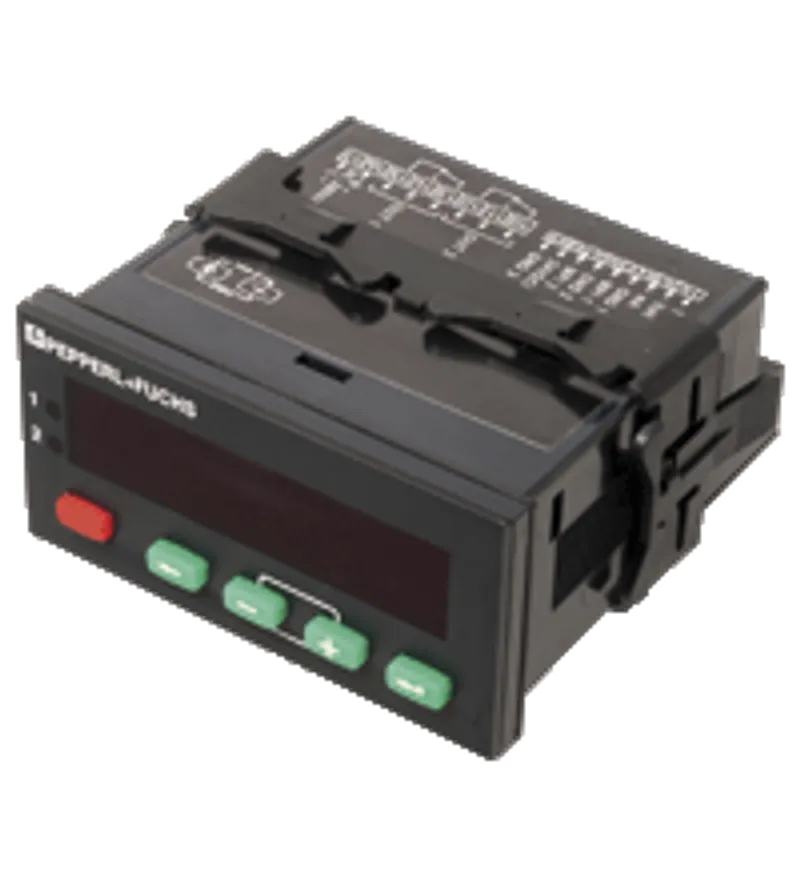

Pepperl Fuchs DA6-IU-2K-C
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Process Displays |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can DA6-IU-2K-C be shipped?
DA6-IU-2K-C is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up DA6-IU-2K-C in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for DA6-IU-2K-C and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for DA6-IU-2K-C, subject to availability and destination.
Process control and indication equipment. 2 adjustable trip values, 2 relay outputs, Operation via keypad, Characteristic programmable via 12 interpolation points, Resetting the outputs, automatic, manual or with external signal, Operating voltage: 10 ... 30 V DC, Relay: changeover contact, Dimensions: 96 mm x 48 mm x 102 mm. Pre-selection: 2-fold. Data storage: > 10 years, EEPROM. Programming: keypad-driven menu. Type: 14-segment LED display, red. Number of digits: 6. Display value: digit height 14 mm. Key interlock: with "high"-level at terminal "KEY". Display interval: -199999 ... 999999 with suppression of leading zeros. Decimal point: freely adjustable. Resolution: 15 Bit. Scale factor: via characteristic curve with up to 12 value pairs. Reset: manually or external. Fusing: T 0.4 A. Operating voltage: 10 ... 30 V DC. Protection class: IP65 (front). Power consumption: 3.8 W. Impedance: > 1 MΩ for voltage measurement 22 Ω + PTC 25 Ω for current measurement. Analog voltage input: 0 ... 10 V / 2 ... 10 V DC,-10 ... 10 V DC. Analog current input: 0 ... 20 mA / 4 ... 20 mA. Relay: changeover contact. Switching voltagemax. 250 V AC / 125 V DC min. 5 V AC / 5 V DCSwitching currentmax. 5 A AC / 5 A DC min. 10 mA DCSwitching powermax. 1250 VA / 150 W: . Switching voltage: max. 250 V AC / 125 V DC min. 5 V AC / 5 V DC. Switching current: max. 5 A AC / 5 A DC min. 10 mA DC. Switching power: max. 1250 VA / 150 W. Sensor supply: 15 V DC ± 1 %, 25 mA. Directive conformity: . EMC Directive 2004/108/ECEN 61000-6-2:2006 DIN EN 55011:2009, Class B: . EMC Directive 2004/108/EC: EN 61000-6-2:2006 DIN EN 55011:2009, Class B. Standard conformity: . Galvanic isolationEN 61010-1:2010Shock and impact resistanceEN 60068-2-27:2009 EN 60068-2-29:1995Vibration resistanceEN 60068-2-6:2008: . Galvanic isolation: EN 61010-1:2010. Shock and impact resistance: EN 60068-2-27:2009 EN 60068-2-29:1995. Vibration resistance: EN 60068-2-6:2008. Ambient temperature: -10 ... 50 °C (14 ... 122 °F). Storage temperature: -20 ... 70 °C (-4 ... 158 °F). Relative humidity: ≤ 80 % (noncondensing). Connection: 8-pin and 9-pin connectors with screw terminals. Mass: 180 g. Dimensions: 96 mm x 48 mm x 102 mm. Mounting: mounting frame with latch fastener
Specifications
General specifications
| Pre-selection | 2-fold |
| Data storage | > 10 years, EEPROM |
| Programming | keypad-driven menu |
Indicators/operating means
| Type | 14-segment LED display, red |
| Number of digits | 6 |
| Display value | digit height 14 mm |
| Key interlock | with "high"-level at terminal "KEY" |
| Display interval | -199999 ... 999999 with suppression of leading zeros |
| Decimal point | freely adjustable |
| Resolution | 15 Bit |
| Scale factor | via characteristic curve with up to 12 value pairs |
| Reset | manually or external |
Electrical specifications
| Fusing | T 0.4 A |
| Operating voltage | 10 ... 30 V DC UB |
| Protection class | IP65 (front) |
| Power consumption | 3.8 W P0 |
Input
| Impedance | > 1 MΩ for voltage measurement 22 Ω + PTC 25 Ω for current measurement |
| Analog voltage input | 0 ... 10 V / 2 ... 10 V DC,-10 ... 10 V DC |
| Analog current input | 0 ... 20 mA / 4 ... 20 mA |
Output
| Relay | changeover contact |
| Switching voltagemax. 250 V AC / 125 V DC min. 5 V AC / 5 V DCSwitching currentmax. 5 A AC / 5 A DC min. 10 mA DCSwitching powermax. 1250 VA / 150 W | Switching voltage |
| Switching voltage | max. 250 V AC / 125 V DC min. 5 V AC / 5 V DC |
| Switching current | max. 5 A AC / 5 A DC min. 10 mA DC |
| Switching power | max. 1250 VA / 150 W |
| Sensor supply | 15 V DC ± 1 %, 25 mA |
Compliance with standards and directives
| Directive conformity | |
| EMC Directive 2004/108/ECEN 61000-6-2:2006 DIN EN 55011:2009, Class B | EMC Directive 2004/108/EC |
| EMC Directive 2004/108/EC | EN 61000-6-2:2006 DIN EN 55011:2009, Class B |
| Standard conformity | |
| Galvanic isolationEN 61010-1:2010Shock and impact resistanceEN 60068-2-27:2009 EN 60068-2-29:1995Vibration resistanceEN 60068-2-6:2008 | Galvanic isolation |
| Galvanic isolation | EN 61010-1:2010 |
| Shock and impact resistance | EN 60068-2-27:2009 EN 60068-2-29:1995 |
| Vibration resistance | EN 60068-2-6:2008 |
Ambient conditions
| Ambient temperature | -10 ... 50 °C (14 ... 122 °F) |
| Storage temperature | -20 ... 70 °C (-4 ... 158 °F) |
| Relative humidity | ≤ 80 % (noncondensing) |
Mechanical specifications
| Connection | 8-pin and 9-pin connectors with screw terminals |
| Mass | 180 g |

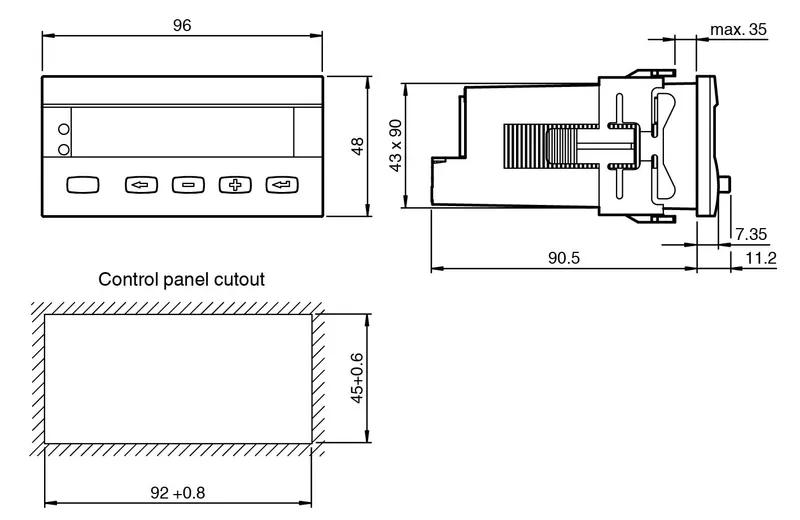

| Dimensions | 96 mm x 48 mm x 102 mm |
| Mounting | mounting frame with latch fastener |
