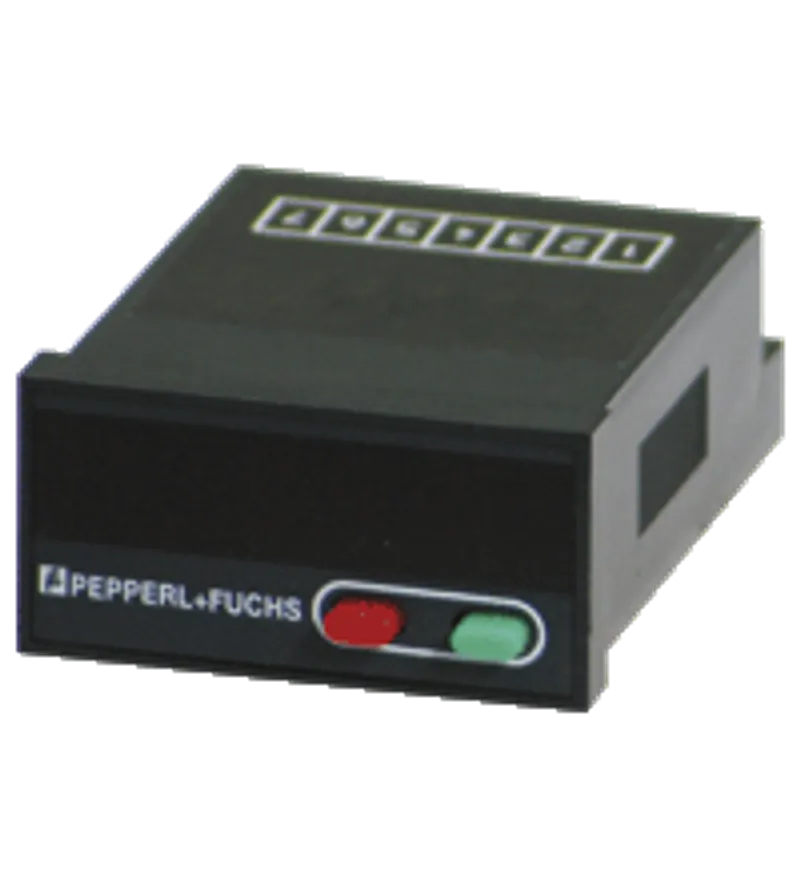

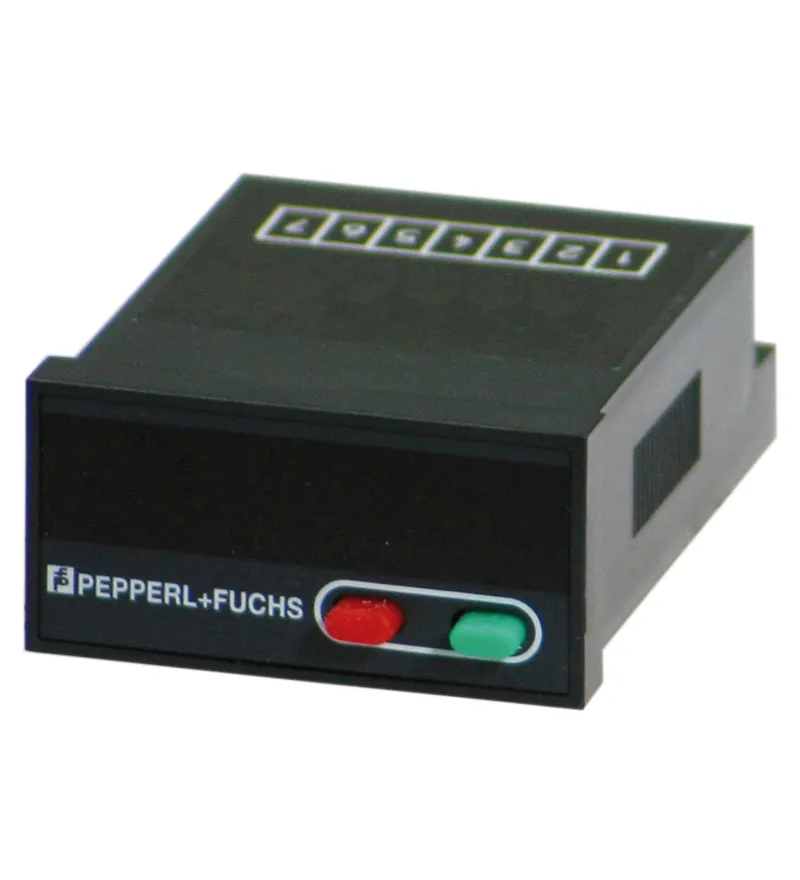

Pepperl Fuchs KT-LED-24-PT100-24VDC
LED temperature display
- MPN
- KT-LED-24-PT100-24VDC
- Category
- Process Displays
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Pepperl Fuchs KT-LED-24-PT100-24VDC?
Temperature display in °C or °F
Resolution up to 0.1 °C
Extremely bright, large LED indicator

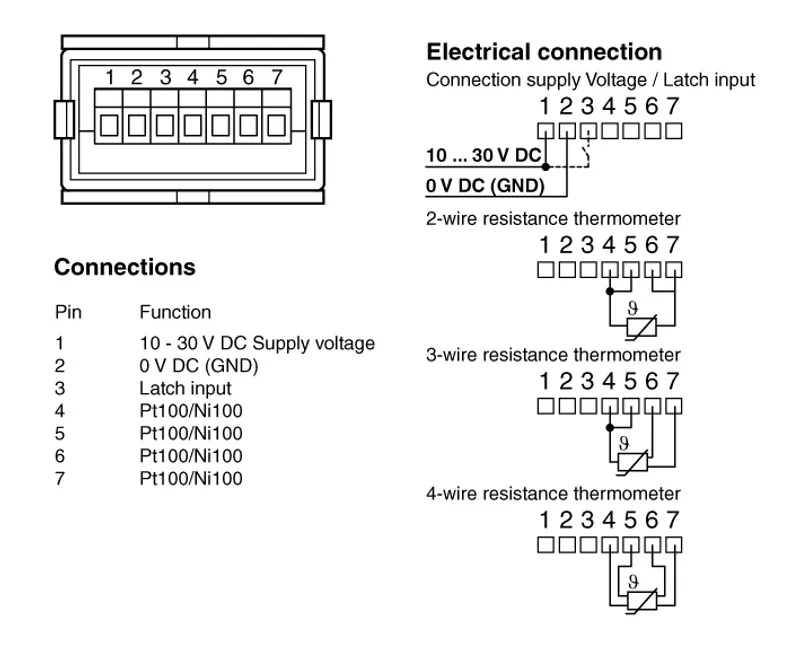

RTD types Pt100, Ni100 in 2-, 3-, or 4-wire mode
Galvanic isolation
Polarity reversal protected
Degree of protection IP65 (front only)
Temperature display in °C or °F, Resolution up to 0.1 °C, Extremely bright, large LED indicator, RTD types Pt100, Ni100 in 2-, 3-, or 4-wire mode, Galvanic isolation, Operating voltage: 10 ... 30 V DC galvanically isolated, Dimensions: 48 mm x 24 mm x 68.3 mm
Specifications
General specifications
| Order code (Pepperl+Fuchs part number) | 215125 |
| Data storage | EEPROM |
| Programming | keypad-driven menu |
| Lifecycle | Active (current Pepperl+Fuchs product) |
Indicators/operating means
| Type | 5-digit 7-segment LED display, red |
| Display value | digit height 8 mm |
| Display interval | -1999.9 ... 9999.9 |
| Decimal point | 0 to max 1 fractional digit |
| Temperature range | Pt100 acc. DIN IEC 751: -199.9 ... 850 °C (-327.8 ... 1562 °F) Ni100 acc. DIN 43760: -60 ... 250 °C (-76 ... 482 °F) |
| Resolution | 0.1 °C (0.1 °F) bzw. 1 °C (1 °F) |
| Refresh cycle of the measured value output | 1 - 2 s-1 |
| Reset | manually or external |
Electrical specifications
| Operating voltage | 10 ... 30 V DC galvanically isolated UB |
| Operating current | max. 40 mA IB |
Input
| Suitable sensors | Pt100/Ni100 resistance thermometer, with sensor breakage monitoring |
| Signal voltage | Display latch, display hold for current measured value |
| High | 4 ... 30 V DC |
| Low | 0 ... 2 V DC |
| Pt 100 range (-200 ... 850 °C) | 0 ... 20 Ω 2-wire: programmable3-/4-wire: no adjustment necessary |
| Ni 100-range (-60 ... 250 °C) | 0 ... 20 Ω 2-wire: programmable3-/4-wire: no adjustment necessary |
| Current | 1 mA |
| Counting frequency | 5 measurements per second |
| Linearity error | Pt100 < 0.1% at 20°C ambient temperature Ni100 < 0.2% at 20°C ambient temperature |
Compliance with standards and directives
| Directive conformity: EMC Directive 2004/108/EC | EN 61000-6-2:2005 |
| Standard conformity: Emitted interference | DIN EN 55011:2009, Class B |
Ambient conditions
| Ambient temperature | -20 ... 65 °C (-4 ... 149 °F) |
| Storage temperature | -25 ... 70 °C (-13 ... 158 °F) |
| Relative humidity | ≤ 85 % (non-condensing) |
| Temperature drift | 0.1 K/Kenvironment |
Mechanical specifications
| Degree of protection | IP65 (front) |
| Mass | approx. 45 g |

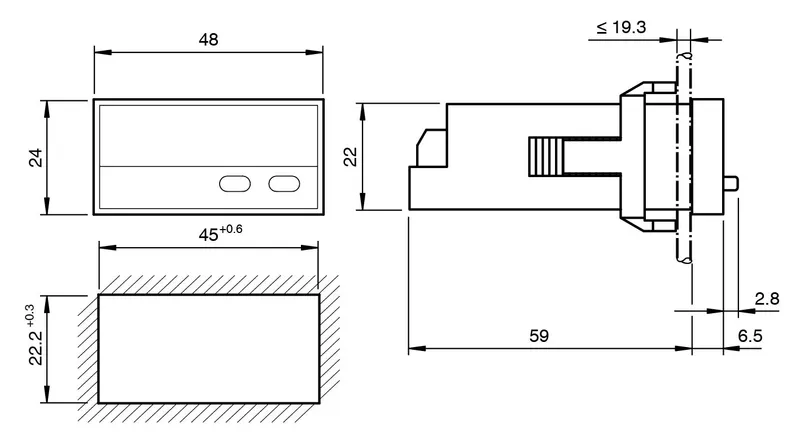

| Dimensions | 48 mm x 24 mm x 68.3 mm |
