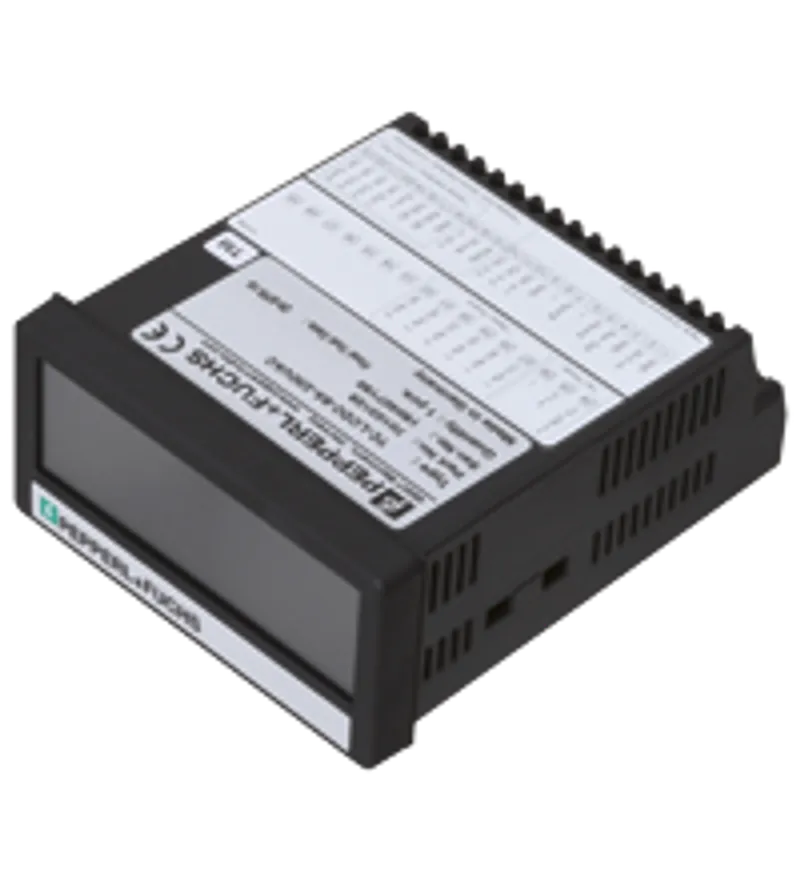

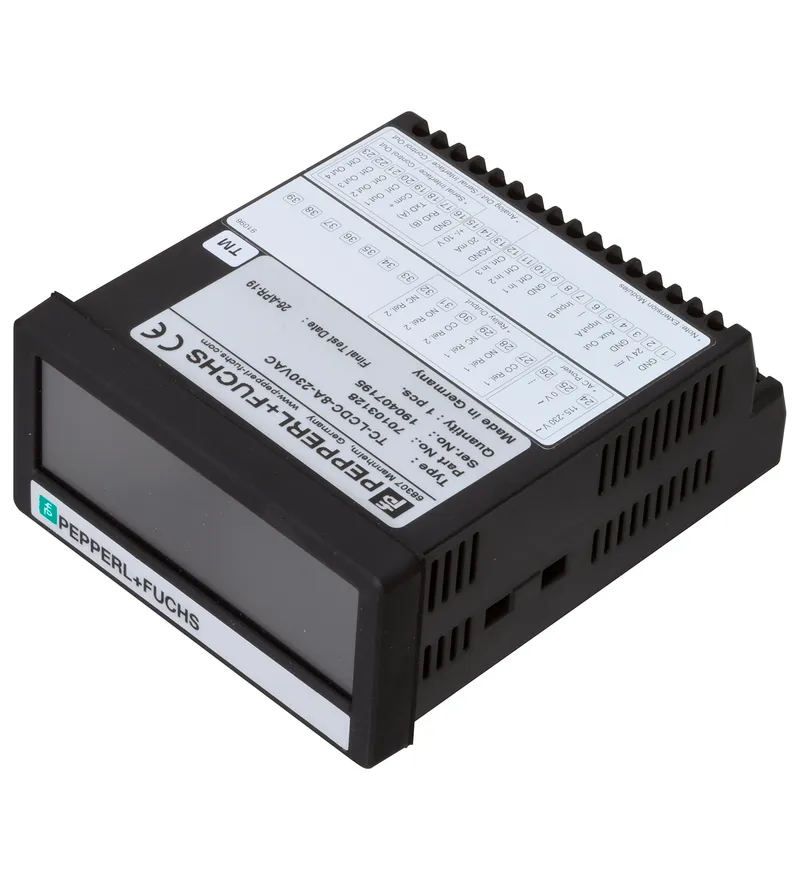

What is the Pepperl Fuchs TC-LCDC-8A-230VAC?
Multifunction device with operating modes such as rev counter, other counters, throughput time display, position display, timer for runtimes, stopwatch, and process display
HTL inputs for encoders and sensors with NPN, PNP and NAMUR characteristics
Bright, high-contrast display with event-dependent color versions
Emulation of a seven-segment display with symbols and units
Auxiliary voltage output 5/24 V DC for encoder supply
Linearization with 24 interpolation points
Numerous functions such as scaling, filters, and start-up override
Multifunction device with operating modes such as rev counter, other counters, throughput time display, position display, timer for runtimes, stopwatch, and process display, HTL inputs for encoders and sensors with NPN, PNP and NAMUR characteristics, Bright, high-contrast display with event-dependent color versions, Emulation of a seven-segment display with symbols and units, Auxiliary voltage output 5/24 V DC for encoder supply, Operating voltage: 115 ... 230 V AC, 50 ... 60 Hz
Specifications
Indicators/operating means
| Order code (Pepperl+Fuchs part number) | 70103128 |
| Type | Graphic LCD display with background lighting |
| Number of digits | 8 |
| Display value | digit height 13 mm |
| Display: Touch screen technology | resistive |
| Display: Colors | Capability to switch between red, green, and yellow |
| Display interval | -99999999 ... 99999999 |
| Accuracy | Measurement: ± 50 ppm, ± 1 digit |
| Lifecycle | Active (current Pepperl+Fuchs product) |
Electrical specifications
| Fusing | External: T 0.5 A Reverse polarity protection |
| Operating voltage | 115 ... 230 V AC, 50 ... 60 Hz UB |
| Power consumption | approx. 3 VA (Unladen) P0 |
| Supply | Rotary encoder: 24 V DC (± 15 %) Max. 150 mA up to 45 °C, max. 80 mA from 45 °C |
Interface
| Interface type | Serial RS-232 |
| Transfer rate | 9600, 19200, or 38400 baud |
Input 1
| Input type | Incremental PNP, NPN, NAMUR, or Tri-State |
| Input format | HTL (low: 0…3 V, high: 9…30 V) |
| Connection | Two spurs: A, B |
| Input frequency | max. 250 kHz |
| Load current | Max. 6 mA/Ri > 5 kΩ / 470 pF |
Input 2
| Input type | 3 x Control input |
| Input format | HTL, PNP (low: 0 V … 3 V, high: 9 V … 30 V) |
| Input frequency | max. 10 kHz |
| Load current | Max. 2 mA/Ri > 15 kΩ/470 pF |
Output 1
| Number/Type | Analog output Configurable as Current or voltage output |
| Current | 0/4 mA … 20 mA (Max. load: 270 Ω) |
| Voltage | -10 ... 10 V (Max. 2 mA) |
| Resolution | 16 bit ± 0.1 % at 0 °C … 45 °C ± 0.15 % at -20 °C … 0 °C und 45 °C … 60 °C |
| Response time | < 150 ms |
Output 2
| Output type | 4 x Control output |
| Output format | PNP |
| Output voltage | 5 V … 30 V (Depending on voltage at COM+) |
| Output current | max. 200 mA |
| Response time | < 1 ms |
Directive conformity
| Electromagnetic compatibility: Directive 2014/30/EU | EN 61326-1:2013 EN 55011:2016+A1:2017+A11:2020 |
| Low voltage: Directive 2014/35/EU | EN 61010-1:2010+A1:2019 EN 61010-2-201:2018 |
Ambient conditions
| Ambient temperature | -20 ... 60 °C (-4 ... 140 °F) |
| Storage temperature | -25 ... 70 °C (-13 ... 158 °F) |
Mechanical specifications
| Degree of protection | IP65 (front) IP20 (Connection side) |
| Connection | screw terminals 1.5 mm², AWG 16 |
| Material: Housing | ABS, UL 94 V-0 |
| Installation | Panel mount Cutout W x H: 91 x 43 mm |
| Mass | approx. 200 g |
| Dimensions: Height | 48 mm |
| Dimensions: Width | 96 mm |
| Dimensions: Depth | 116 mm |
Downloads & documentation
Official documents from Pepperl Fuchs, downloaded directly from the manufacturer.
Data sheets & manuals
Certificates (1)
TC-LCDC-8A-230VAC: frequently asked questions
When can TC-LCDC-8A-230VAC be shipped?
TC-LCDC-8A-230VAC is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up TC-LCDC-8A-230VAC in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for TC-LCDC-8A-230VAC and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for TC-LCDC-8A-230VAC, subject to availability and destination.
