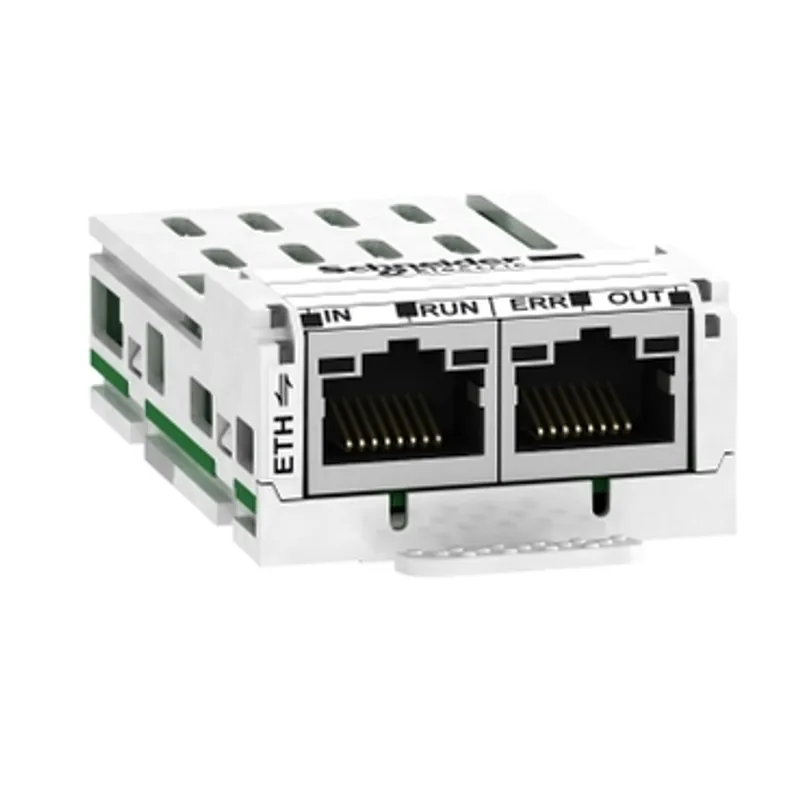

Schneider Electric VW3AP3601
Communication module Ethercat, Altivar, 100Mbps, 2 x RJ45 connectors
- MPN
- VW3AP3601
- EAN
- 3606481276018
- Category
- Altivar Process ATV900
Price and lead time confirmed within 1 business day
Discontinued by Schneider Electric — we can still source the original VW3AP3601 (new, used or refurbished, subject to availability). Request a quote below.
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Schneider Electric VW3AP3601?
Schneider Electric communication module Ethercat, Altivar, 100Mbps, 2 x RJ45 connectors, manufacturer part number VW3AP3601. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| Range of product | Altivar |
| Product or component type | Communication module |
| Condition of use | Cannot be ordered alone, only possible in combination with a standard enclosure |
| Range compatibility | Altivar Process ATV900 |
| Communication port protocol | EtherCAT |
| Electrical connection | 2 connectors RJ45 |
| Transmission rate | 100 Mbps |
| Maximum cable distance between devices | 100 m for 100 Mbps |
| Addressing | Logical addressing, Position addressing, Node addressing |
| Communication service | PDO and SDO support, Drive profile CiA 402 velocity mode conforming to IEC 61800-7-201 (CiA 402), CANopen over EtherCAT (CoE) |
| Display type | 1 LED for input status, 1 LED for RUN, 1 LED for error, 1 LED for output status |
| Standards | IEC 61800-7-201 (CiA 402) |
Packaging
| Package 1 | 1 PCE, 9.0 cm × 4.5 cm × 6.3 cm (L × W × H), 60.0 g |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
VW3AP3601: frequently asked questions
Can I still buy the VW3AP3601 now that it is discontinued?
Yes. Schneider Electric has discontinued the VW3AP3601, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.
When can VW3AP3601 be shipped?
VW3AP3601 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up VW3AP3601 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for VW3AP3601 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for VW3AP3601, subject to availability and destination.
