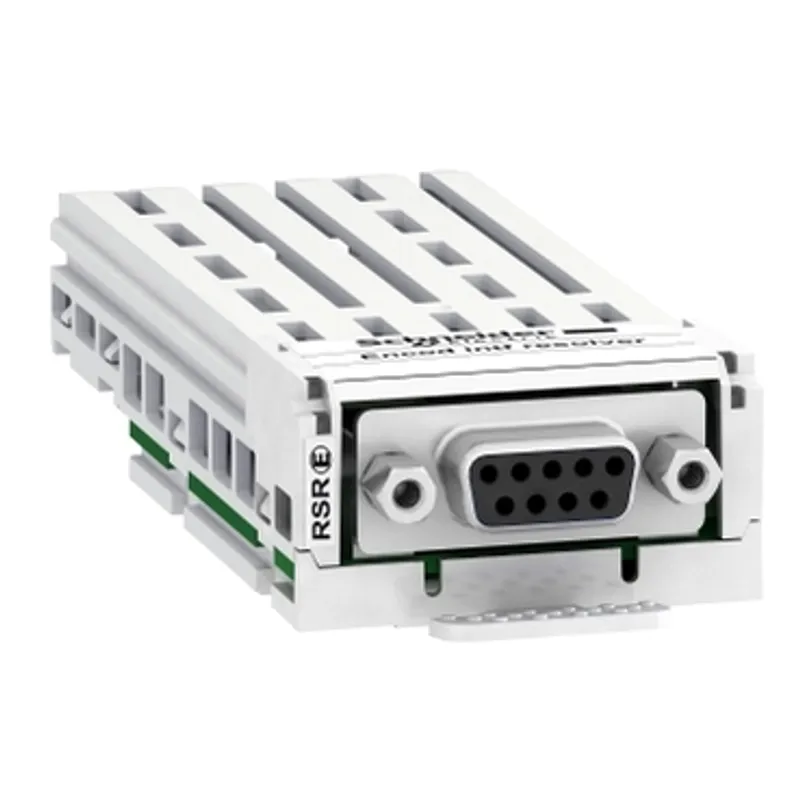

Schneider Electric VW3AP3423
Resolver encoder interface module, Altivar, 1 female SUB D9 connector
- MPN
- VW3AP3423
- EAN
- 3606481276001
- Category
- Altivar Process ATV900
Price and lead time confirmed within 1 business day
Discontinued by Schneider Electric — we can still source the original VW3AP3423 (new, used or refurbished, subject to availability). Request a quote below.
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Schneider Electric VW3AP3423?
Schneider Electric resolver encoder interface module, Altivar, 1 female SUB D9 connector, manufacturer part number VW3AP3423. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| Range of product | Altivar |
| Product or component type | Encoder interface module |
| Condition of use | Cannot be ordered alone, only possible in combination with a standard enclosure |
| Range compatibility | Altivar Process ATV900 |
| Encoder type | Resolver |
| Maximum supply current | 0.05 A |
| Protection type | Short-circuit protection, Overload protection |
| Maximum cable distance between devices | 100 m |
| Maximum operating frequency | 12 kHz |
| Input signal | Sin+, Sin-, Cos+, Cos-, Temp+, Temp- |
| Output signal | Ref+, Ref- |
| Ratio | 3/10, 1/2, 3/4, 1 |
| Connector type | 1 female SUB-D 9 |
| Net weight | 0.15 kg |
Packaging
| Package 1 | 1 PCE, 19.0 cm × 13.0 cm × 6.6 cm (L × W × H), 150.0 g |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
VW3AP3423: frequently asked questions
Can I still buy the VW3AP3423 now that it is discontinued?
Yes. Schneider Electric has discontinued the VW3AP3423, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.
When can VW3AP3423 be shipped?
VW3AP3423 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up VW3AP3423 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for VW3AP3423 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for VW3AP3423, subject to availability and destination.
