VW3AP2701Ready for IT mains, Altivar Process ATV600, Altivar Process ATV900, for Drive Systems
Schneider Electric VW3AP3422

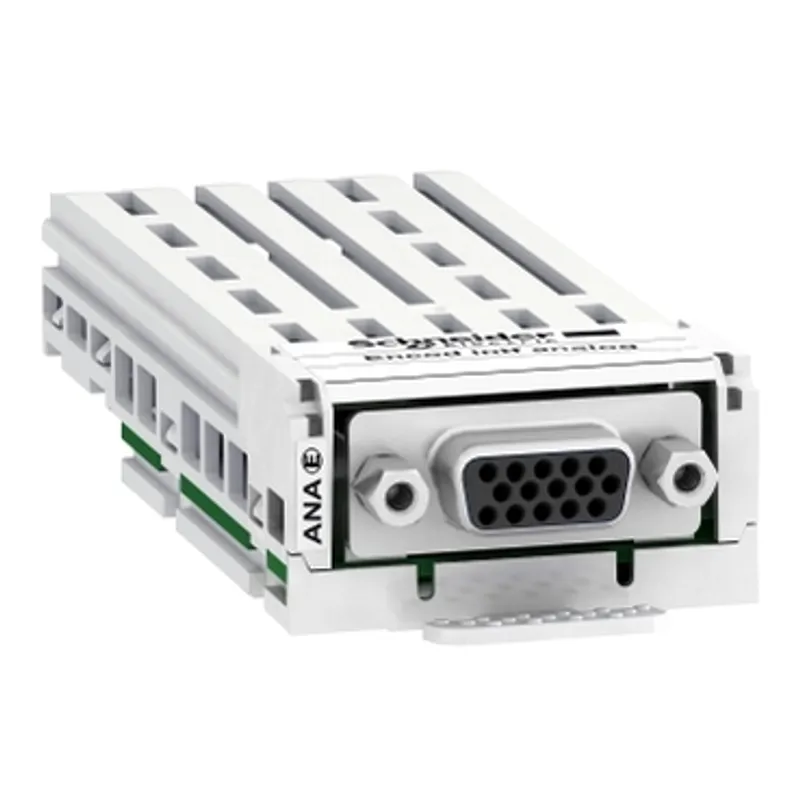

Analog encoder interface module, Altivar, 5 to 24V, 1 female SUB D9 connector
- MPN
- VW3AP3422
- EAN
- 3606481275998
- Category
- Altivar Process ATV900
Price and lead time confirmed within 1 business day
Discontinued by Schneider Electric — we can still source the original VW3AP3422 (new, used or refurbished, subject to availability). Request a quote below.
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Schneider Electric VW3AP3422?
Schneider Electric analog encoder interface module, Altivar, 5 to 24V, 1 female SUB D9 connector, manufacturer part number VW3AP3422. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| Range of product | Altivar |
| Product or component type | Analog encoder interface module |
| Condition of use | Cannot be ordered alone, only possible in combination with a standard enclosure |
| Range compatibility | Altivar Process ATV900 |
| Encoder type | SinCos Hiperface, 1 Vpp |
| [Us] rated supply voltage | 5 V DC (voltage limits: 4.75…5.25 V), 12 V DC (voltage limits: 11.4…12.6 V), 24 V DC (voltage limits: 22.8…25.2 V) |
| Maximum supply current | 0.25 A at 5 V DC, 0.1 A at 12 V DC, 0.05 A at 24 V DC |
| Protection type | Short-circuit protection, Overload protection |
| Maximum cable distance between devices | 100 m |
| Maximum operating frequency | 100 kHz |
| Input signal | Data+, Data-, Sin, RefSin, Cos, RefCos, Temp+, Temp- |
| Output signal | Data+, Data- |
| Connector type | 1 female SUB-D 9 |
| Net weight | 0.15 kg |
Packaging
| Package 1 | 1 PCE, 19.0 cm × 13.0 cm × 6.6 cm (L × W × H), 151.0 g |
