Schneider Electric VW3AP3420

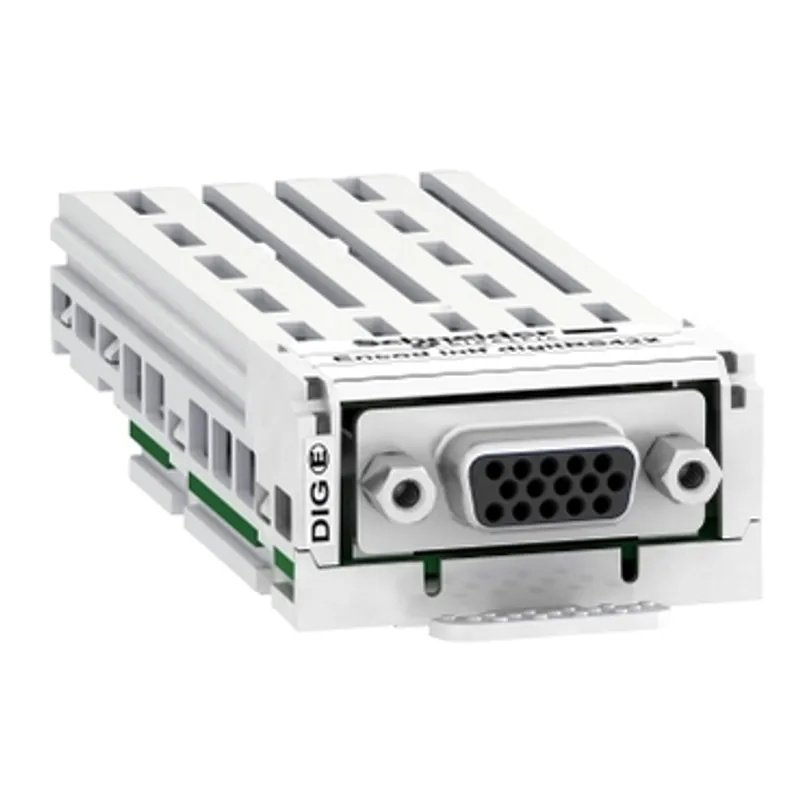

Digital encoder interface module, Altivar, 5 to 24V, 1 female high density SUB D15 connector
- MPN
- VW3AP3420
- EAN
- 3606481275981
- Category
- Altivar Process ATV900
Price and lead time confirmed within 1 business day
Discontinued by Schneider Electric — we can still source the original VW3AP3420 (new, used or refurbished, subject to availability). Request a quote below.
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Schneider Electric VW3AP3420?
Schneider Electric digital encoder interface module, Altivar, 5 to 24V, 1 female high density SUB D15 connector, manufacturer part number VW3AP3420. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| Range of product | Altivar |
| Product or component type | Digital encoder interface module |
| Condition of use | Cannot be ordered alone, only possible in combination with a standard enclosure |
| Range compatibility | Altivar Process ATV900 |
| Encoder type | EnDat 2.2, A/B/I incremental XCC1 type R, A/B/I incremental XCC1 type X, SSI absolute encoder XCC2 type SG, SSI absolute encoder XCC3 type SB |
| [Us] rated supply voltage | 5 V DC (voltage limits: 4.75…5.25 V), 12 V DC (voltage limits: 11.4…12.6 V), 24 V DC (voltage limits: 22.8…25.2 V) |
| Maximum supply current | 0.25 A at 5 V DC, 0.1 A at 12 V DC, 0.05 A at 24 V DC |
| Protection type | Overload protection, Short-circuit protection |
| Maximum cable distance between devices | 100 m (A/B/I), 50 m (SSI), 100 m (SSI)at 300 kHz, 50 m (EnDat 2.2), 100 m (EnDat 2.2)with propagation delay compensation |
| Maximum operating frequency | 1000 kHz |
| Input signal | Data+, Data- (EnDat 2.2), Data+, Data- (SSI), Temp+, Temp-, A+,A-/B+,B-/I+,I- (A/B/I) |
| Input impedance | 121 Ohm |
| Output signal | Clock+, Clock- (SSI), Data+, Data-, Clock+, Clock- (EnDat 2.2) |
| Connector type | 1 female high density SUB-D 15 |
| Net weight | 0.15 kg |
Packaging
| Package 1 | 1 PCE, 19.0 cm × 13.0 cm × 7.0 cm (L × W × H), 150.0 g |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
VW3AP3420: frequently asked questions
Can I still buy the VW3AP3420 now that it is discontinued?
Yes. Schneider Electric has discontinued the VW3AP3420, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.
When can VW3AP3420 be shipped?
VW3AP3420 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up VW3AP3420 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for VW3AP3420 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for VW3AP3420, subject to availability and destination.
