Schneider Electric

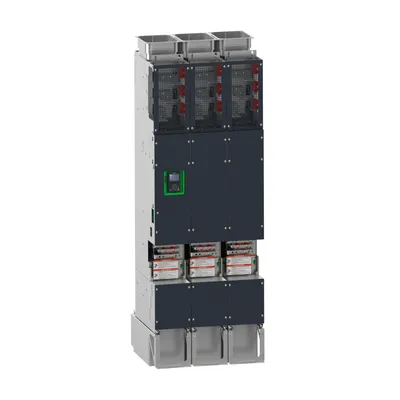

ATV9A0C63Q6Variable speed drive, Altivar Process ATV900, APM, single 690 V, 630 kW
Altivar Process ATV900 Parts
Schneider Electric
ATV9A0C50Q6Variable speed drive, Altivar Process ATV900, APM, single 690 V, 500 kW
Schneider Electric

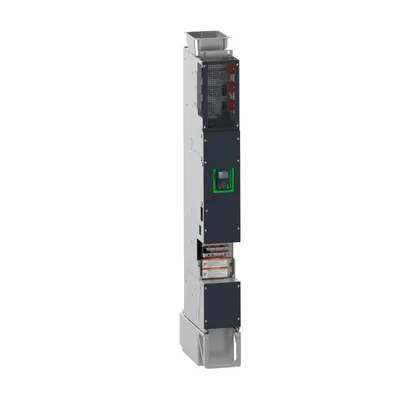

ATV9A0C16Q6Variable speed drive, Altivar Process ATV900, APM, single 690 V, 160 kW
Schneider Electric
ATV930D75S6Variable speed drive, Altivar Process ATV900, ATV930, 100hp, 600V, IP20
Schneider Electric

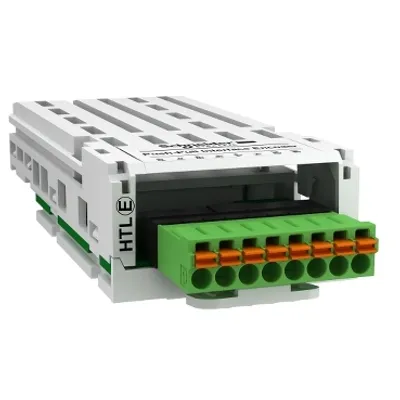

VW3AP3424High threshold logic encoder interface module, Altivar, 12 to 24V, 1 removable spring connector
Schneider Electric
ATV980C80T4X1Variable speed drive, Altivar Process ATV900, Regenerative System ATV980 -900/710 kW, 480 V with CE, IP23
Schneider Electric

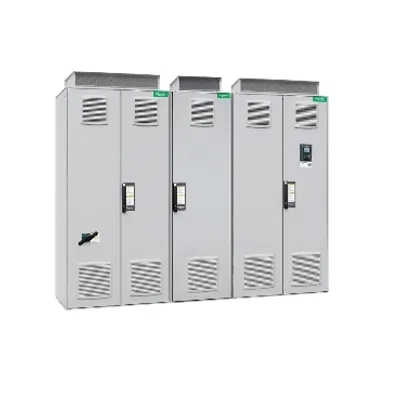

ATV980C71T4X1Variable speed drive, Altivar Process ATV900, Regenerative System ATV980 -800/630 kW, 480 V with CE, IP23
Schneider Electric

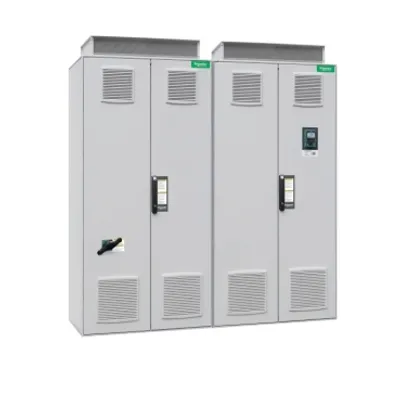

ATV980C63T4X1Variable speed drive, Altivar Process ATV900, Regenerative System ATV980 -710/560 kW, 480 V with CE, IP23
Schneider Electric
ATV980C56T4X1Variable speed drive, Altivar Process ATV900, Regenerative System ATV980 -630/500 kW, 480 V with CE, IP23
Schneider Electric
ATV980C50T4X1Variable speed drive, Altivar Process ATV900, Regenerative System ATV980 -560/450 kW, 480 V with CE, IP23
Schneider Electric
ATV980C45T4X1Variable speed drive, Altivar Process ATV900, Regenerative System ATV980 -500/400 kW, 480 V with CE, IP23
Schneider Electric
ATV980C40T4X1Variable speed drive, Altivar Process ATV900, Regenerative System ATV980 -450/355 kW, 480 V with CE, IP23
Schneider Electric

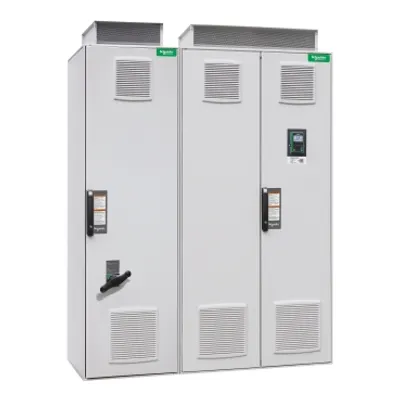

ATV980C35T4X1Variable speed drive, Altivar Process ATV900, Regenerative System ATV980 -400/315 kW, 480 V with CE, IP23
Schneider Electric

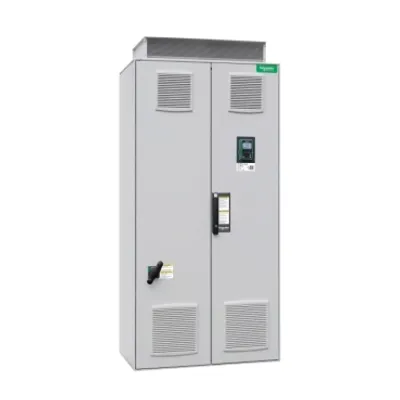

ATV980C31T4X1Variable speed drive, Altivar Process ATV900, Regenerative System ATV980 -355/280 kW, 480 V with CE, IP23
Schneider Electric
ATV980C25T4X1Variable speed drive, Altivar Process ATV900, Regenerative System ATV980 -280/220 kW, 480 V with CE, IP23
Schneider Electric
ATV980C20T4X1Variable speed drive, Altivar Process ATV900, Regenerative System ATV980 -220/180 kW, 480 V with CE, IP23
Schneider Electric

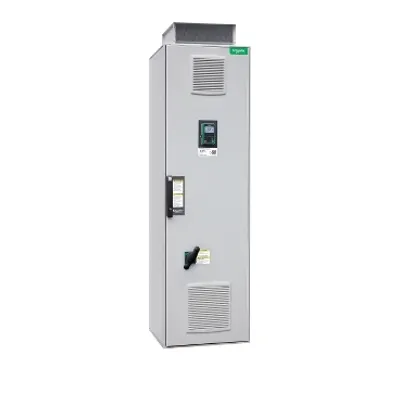

ATV980C16T4X1Variable speed drive, Altivar Process ATV900, Regenerative System ATV980 -180/160 kW, 480 V with CE, IP23
Schneider Electric
ATV980C13T4X1Variable speed drive, Altivar Process ATV900, Regenerative System ATV980 -160/132 kW, 480 V with CE, IP23
Compare Altivar Process ATV900
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | [Us] rated supply voltage | Communication port protocol | Product certifications | Width | Net weight |
|---|---|---|---|---|---|
| ATV9A0C63Q6 | 690 V - 10...15 % | EtherNet/IP; Modbus serial; Modbus TCP | TÜV; UL; cUL | — | — |
| ATV9A0C50Q6 | 690 V - 10...15 % | EtherNet/IP; Modbus serial; Modbus TCP | TÜV; UL; cUL | — | — |
| ATV9A0C16Q6 | 690 V - 10...15 % | EtherNet/IP; Modbus serial; Modbus TCP | TÜV; UL; cUL | — | — |
| ATV930D75S6 | 600 V - 15...10 % | EtherNet/IP; Modbus TCP; Modbus serial | UL; TÜV; CSA | 331 mm | 55 kg |
| ATV930D55S6 | 600 V - 15...10 % | Modbus TCP; EtherNet/IP; Modbus serial | TÜV; CSA; UL | 331 mm | 55 kg |
| ATV930D45S6 | 600 V - 15...10 % | EtherNet/IP; Modbus serial; Modbus TCP | TÜV; UL; CSA | 331 mm | 55 kg |
| ATV930D37S6 | 600 V - 15...10 % | Modbus serial; Modbus TCP; EtherNet/IP | UL; TÜV; CSA | 331 mm | 55 kg |

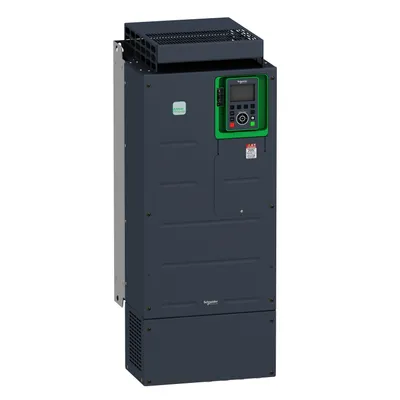

| ATV930D30S6 | 600 V - 15...10 % | EtherNet/IP; Modbus serial; Modbus TCP | TÜV; UL; CSA | 331 mm | 55 kg |
| ATV930D22S6 | 600 V - 15...10 % | Modbus TCP; EtherNet/IP; Modbus serial | CSA; UL; TÜV | 246 mm | 23 kg |

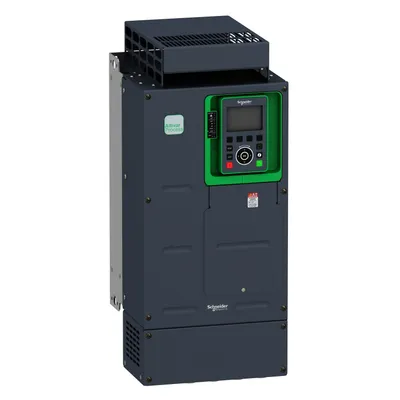

| ATV930D18S6 | 600 V - 15...10 % | EtherNet/IP; Modbus serial; Modbus TCP | TÜV; UL; CSA | 246 mm | 23 kg |
| VW3AP3424 | 12 V DC, 15 V DC, 24 V DC | — | — | — | 0.15 kg |
| ATV980C80T4X1 | 480 V +/- 10 % | EtherNet/IP, Modbus serial, Modbus TCP | ATEX, C-Tick, EAC | 2600 mm | 1950 kg |
| ATV980C71T4X1 | 480 V +/- 10 % | Modbus TCP, EtherNet/IP, Modbus serial | ATEX, C-Tick, EAC | 2600 mm | 1950 kg |
| ATV980C63T4X1 | 480 V +/- 10 % | Modbus TCP, Modbus serial, EtherNet/IP | ATEX, C-Tick, EAC | 2000 mm | 1450 kg |
| ATV980C56T4X1 | 480 V +/- 10 % | Modbus TCP, EtherNet/IP, Modbus serial | ATEX, C-Tick, EAC | 2000 mm | 1450 kg |
| ATV980C50T4X1 | 480 V +/- 10 % | Modbus serial, EtherNet/IP, Modbus TCP | ATEX, C-Tick, EAC | 1600 mm | 1150 kg |
| ATV980C45T4X1 | 480 V +/- 10 % | Modbus TCP, EtherNet/IP, Modbus serial | ATEX, C-Tick, EAC | 1600 mm | 1150 kg |
| ATV980C40T4X1 | 480 V +/- 10 % | Modbus TCP, EtherNet/IP, Modbus serial | ATEX, C-Tick, EAC | 1600 mm | 1150 kg |
| ATV980C35T4X1 | 480 V +/- 10 % | EtherNet/IP, Modbus TCP, Modbus serial | ATEX, C-Tick, EAC | 1600 mm | 1150 kg |
| ATV980C31T4X1 | 480 V +/- 10 % | Modbus serial, EtherNet/IP, Modbus TCP | ATEX, C-Tick, EAC | 1000 mm | 700 kg |
| ATV980C25T4X1 | 480 V +/- 10 % | Modbus TCP, Modbus serial, EtherNet/IP | ATEX, C-Tick, EAC | 1000 mm | 700 kg |
| ATV980C20T4X1 | 480 V +/- 10 % | Modbus TCP, EtherNet/IP, Modbus serial | ATEX, C-Tick, EAC | 1000 mm | 700 kg |
| ATV980C16T4X1 | 480 V +/- 10 % | Modbus serial, EtherNet/IP, Modbus TCP | ATEX, C-Tick, EAC | 600 mm | 400 kg |
| ATV980C13T4X1 | 480 V +/- 10 % | EtherNet/IP, Modbus serial, Modbus TCP | ATEX, C-Tick, EAC | 600 mm | 400 kg |
