Schneider Electric VW3AP3424

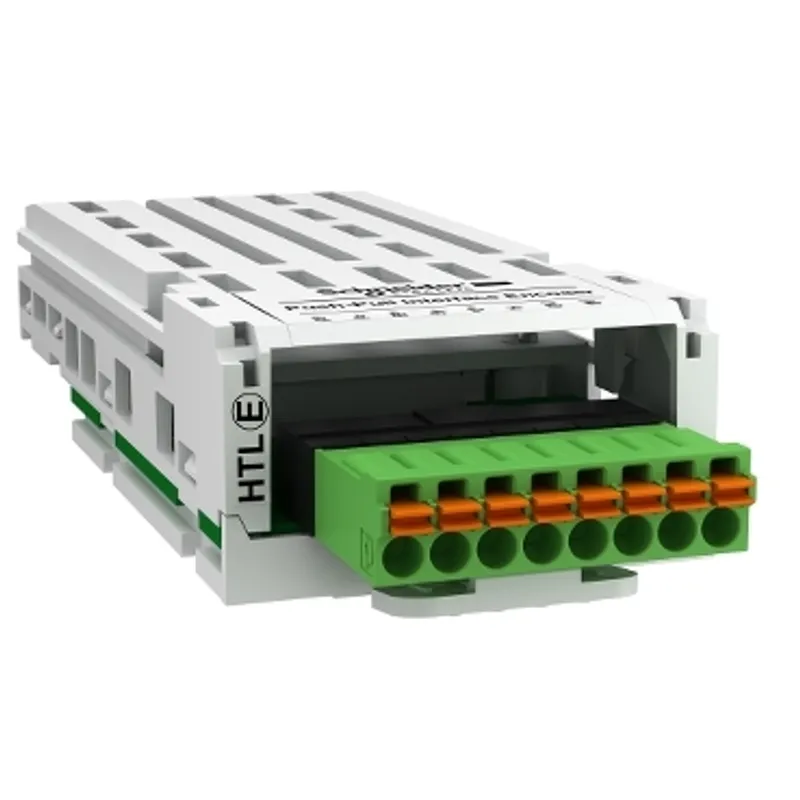

High threshold logic encoder interface module, Altivar, 12 to 24V, 1 removable spring connector
- MPN
- VW3AP3424
- EAN
- 3606489496975
- Category
- Altivar Process ATV900
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Schneider Electric VW3AP3424?
Schneider Electric High threshold logic encoder interface module, Altivar, 12 to 24V, 1 removable spring connector, manufacturer part number VW3AP3424. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| Range of product | Altivar |
| Product or component type | Encoder interface module |
| Condition of use | Cannot be ordered alone, only possible in combination with a standard enclosure |
| Range compatibility | Altivar Process ATV900 |
| Encoder type | High threshold logic (HTL) |
| [Us] rated supply voltage | 12 V DC, 15 V DC, 24 V DC |
| Maximum supply current | 0.2 A at 12 V DC, 0.175 A at 15 V DC, 0.1 A at 24 V DC |
| Protection type | Short-circuit protection, Overload protection |
| Maximum cable distance between devices | 500 m |
| Maximum operating frequency | 12 kHz |
| Input signal | Push-pull differential: A/AB/B, Push-pull single ended: AB, Push-pull single ended: A, Open collector differential: A/AB/B, Open collector PNP: AB, Open collector NPN: AB, Open collector PNP: A, Open collector NPN: A |
| Connector type | 1 removable spring connector |
| Net weight | 0.15 kg |
Packaging
| Package 1 | 1 PCE, 19.0 cm × 12.8 cm × 6.7 cm (L × W × H), 200.0 g |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
VW3AP3424: frequently asked questions
When can VW3AP3424 be shipped?
VW3AP3424 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up VW3AP3424 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for VW3AP3424 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for VW3AP3424, subject to availability and destination.
