Schneider Electric NSYSDP8M
Document pocket, PanelSeT SFN, PanelSeT SF, steel, W800mm
- MPN
- NSYSDP8M
- EAN
- 3606485131436
- Category
- PanelSeT SM
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Schneider Electric NSYSDP8M?

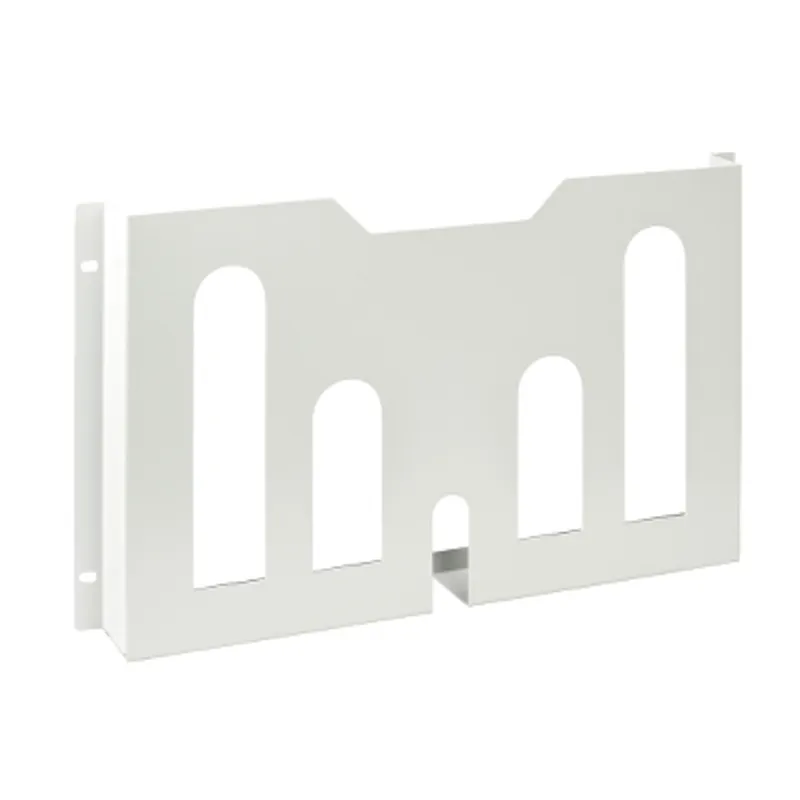

This is a metal document pocket designed to be direct mounting on the reinforcement frame of the door. The product is suitable for PanelSeT SFN, PanelSeT SF and PanelSeT SM electrical enclosures. It is made of steel covered with epoxy polyester powder. The colour is grey RAL7035. It is adjustable in depth with a pitch of 25 mm. The width is 800mm. It contains 1 metal pocket and fixing elements.
Specifications
Specifications
| Range | PanelSeT |
| Product or component type | Document pocket |
| Application | Door accessories |
| Nominal dimensions of the housing | - |
| Mounting location | On door reinforcement frame |
| Mounting support | Direct mounting |
| Range compatibility | PanelSeT SF, SM, SFX and SMX enclosures |
| Device composition | 1 x metal document pocket, 1 x fixing element |
| Quantity per set | Set of 1 |
| Material | Door: steel |
| Colour | Door: grey (RAL 7035) |
| Surface finish | Painted |
| Fixing mode | Direct fixing - door location |
| Adjustment | Adjustable in height, steps of 25 mm for door |
| Height | Nominal: 282 mm |
| Width | Nominal: 800 mm |
| Depth | 65 mm |
Packaging
| Package 1 | 1 PCE, 67.000 cm × 28.500 cm × 6.500 cm (L × W × H), 2.214 kg |
| Package 2 | 60 PAM, 120.000 cm × 100.000 cm × 110.000 cm (L × W × H), 143.000 kg |
