Schneider Electric NSYSDGCR8

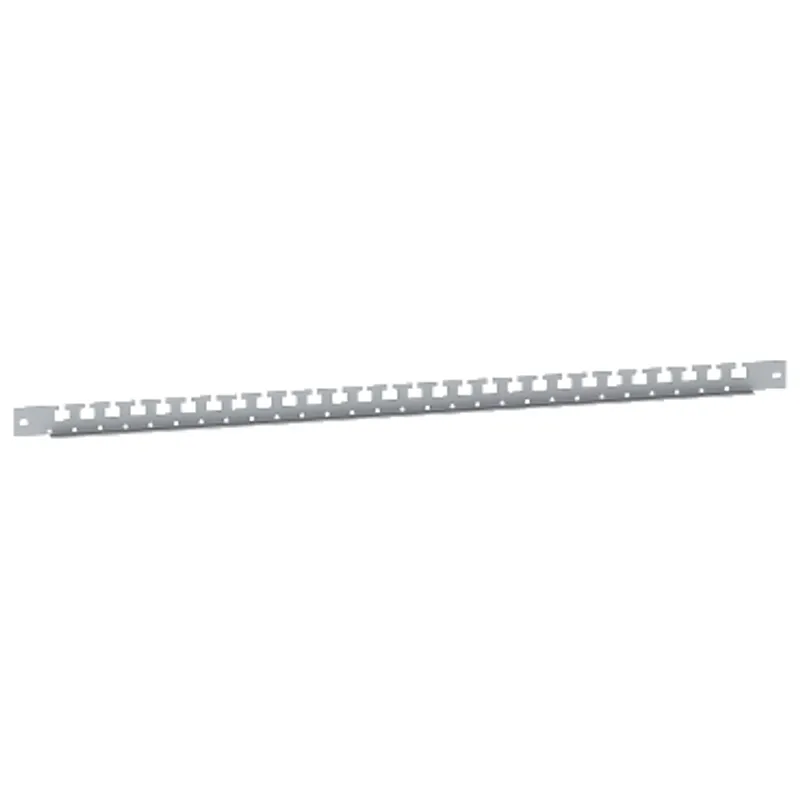

Door cable guides cross rail, PanelSeT SFN, PanelSeT SF, PanelSeT SM, W800mm
- MPN
- NSYSDGCR8
- EAN
- 3606485131412
- Category
- PanelSeT SM
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Schneider Electric NSYSDGCR8?
Spacial SF/SM door cable guides cross rail. Width is 800 mm. Mounting on door reinforcement frame. 2 cross rails and fixing elements incl. Adjustable in height every 25 mm on door reinforcement frame. Steel made, zinc coated surface finish.
Specifications
Specifications
| Range | PanelSeT |
| Product or component type | Door cable-guide cross rail |
| Application | Multi-purpose |
| Nominal dimensions of the housing | - |
| Mounting location | On door reinforcement frame |
| Range compatibility | PanelSeT SF, SM, SFX and SMX enclosures |
| Device composition | Fixing elements, 2 x cross rails |
| Quantity per set | Set of 1 |
| Material | Steel |
| Surface finish | Galvanized |
| Adjustment | Adjustable in height every 25 mm for on door reinforcement frame |
| Height | 30 mm |
| Width | Nominal: 800 mm, Fixing centers: 650 mm |
| Depth | 13 mm |
Packaging
| Package 1 | 1 PCE, 68.500 cm × 4.500 cm × 3.500 cm (L × W × H), 780.000 g |
| Package 2 | 50 PAL, 120.000 cm × 37.500 cm × 29.000 cm (L × W × H), 39.000 kg |
