Schneider Electric NSYSDR200

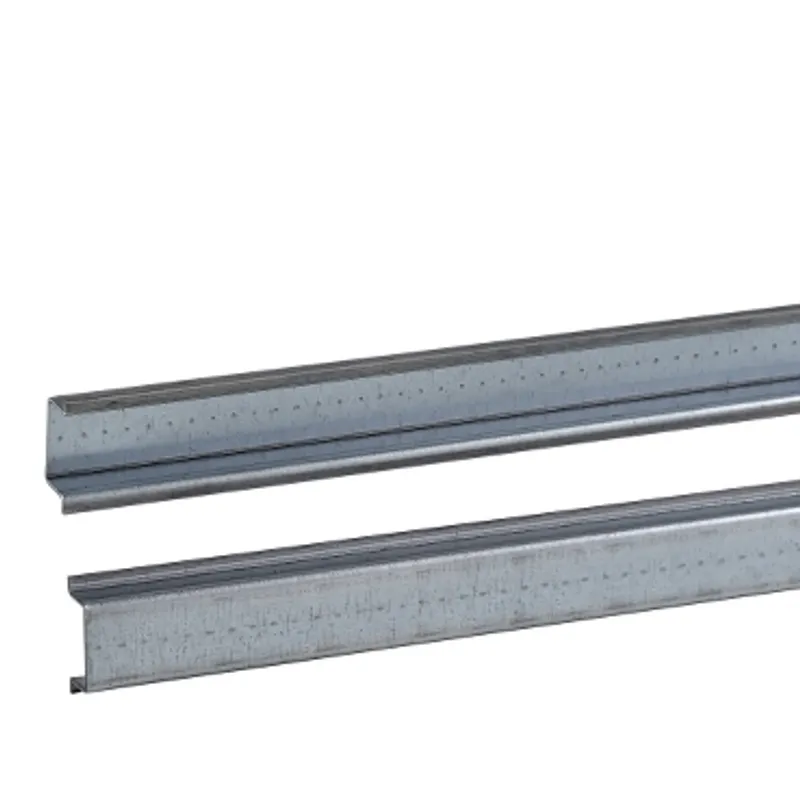

One symmetric mounting rail 35x15 L2000mm type A, Order by Multiples of 10 units
- MPN
- NSYSDR200
- EAN
- 3606480184314
- Category
- PanelSeT CRN
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Schneider Electric NSYSDR200?
Set of 10 symmetrical DIN rails for equipment The rail is made from not perforated 1,5mm galvanised steel The nominal width is 35mm The nominal height is 15mm The product length is 2000mm Fixed with a pitch of 25mm This product is qualified as a green premium, with minimal use of hazardous substances
Specifications
Specifications
| Anwendung | Multi-purpose |
| Range | PanelSeT |
| Product or component type | Rail |
| Accessory / separate part category | Mounting accessory |
| Type of rail | Symmetrical DIN |
| Enclosure nominal dimensions | - |
| Range compatibility | PanelSeT |
| Device composition | 1 rail |
| Quantity per set | Set of 10 |
| Material | Galvanised steel |
| Surface finish | Not perforated |
| Fixing mode | By fixing element - structure of enclosure location |
| Adjustment | Pitch 25 mm, Continuous adjustment |
| Length | 2000 mm |
| Height | Nominal: 15 mm |
| Width | Nominal: 35 mm |
| thickness | 1.5 mm |
Packaging
| Package 1 | 1 PCE, 201.000 cm × 9.000 cm × 0.450 cm (L × W × H), 1.350 kg |
| Package 2 | 10 CAR, 201.000 cm × 9.000 cm × 4.500 cm (L × W × H), 13.500 kg |
