Schneider Electric NSYSDR100A

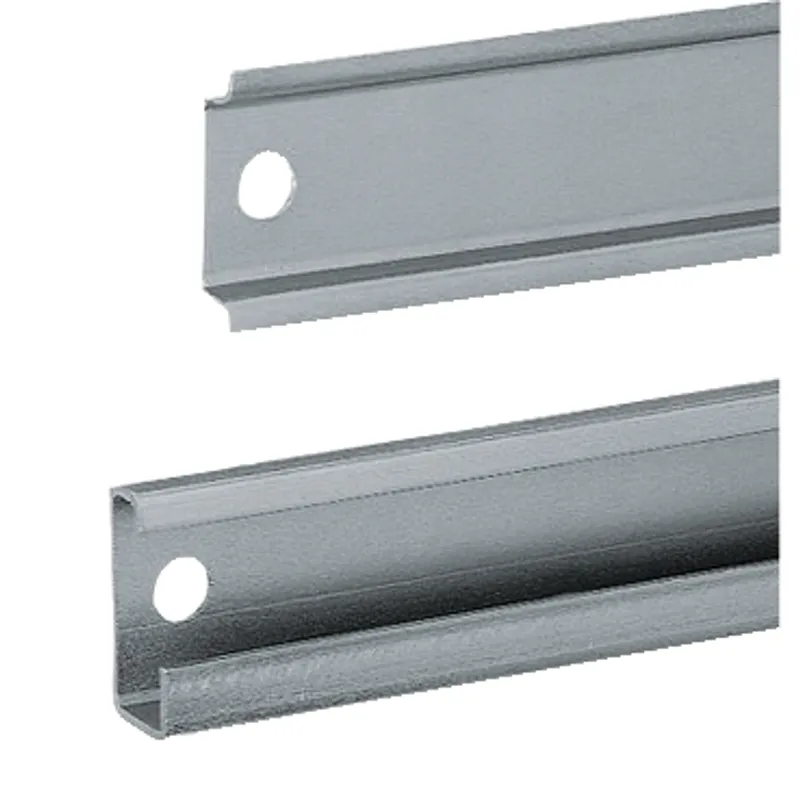

One symmetric mounting rail 35x15 L1000mm type A Supply: 20
- MPN
- NSYSDR100A
- EAN
- 3606480184307
- Category
- PanelSeT CRN
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Schneider Electric NSYSDR100A?
Set of 20 symmetrical DIN rails for equipment to be used in PanelSeT CRN, PanelSeT S3D, PanelSeT S3X and PanelSeT PLM enclosures The rail is made from zinc coated 1,5mm zinc coated steel The nominal width is 35mm The nominal height is 15mm The product nominal length is 1000mm and real length is 950mm Fixed with a pitch of 25mm
Specifications
Specifications
| Anwendung | Multi-purpose |
| Range | PanelSeT |
| Product or component type | Rail |
| Accessory / separate part category | Mounting accessory |
| Type of rail | Symmetrical DIN |
| Enclosure nominal dimensions | - |
| Range compatibility | PanelSeT CRN, PanelSeT S3D, PanelSeT PLM |
| Device composition | Fixing elements, 1 rail |
| Quantity per set | Set of 20 |
| Material | Zinc coated steel |
| Surface finish | Zinc coated |
| Fixing mode | By fixing element - structure of enclosure location |
| Adjustment | Continuous adjustment, Pitch 25 mm |
| Length | Nominal: 1000 mm, Real: 950 mm |
| Height | Nominal: 15 mm |
| Width | Nominal: 35 mm |
| thickness | 1.5 mm |
Packaging
| Package 1 | 1 PCE, 95.000 cm × 1.100 cm × 4.000 cm (L × W × H), 656.000 g |
| Package 2 | 10 CAR, 95.000 cm × 11.000 cm × 4.000 cm (L × W × H), 6.560 kg |
| Package 3 | 100 PAL, 120.000 cm × 37.500 cm × 29.000 cm (L × W × H), 65.600 kg |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
NSYSDR100A: frequently asked questions
When can NSYSDR100A be shipped?
NSYSDR100A is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NSYSDR100A in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NSYSDR100A and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYSDR100A, subject to availability and destination.
