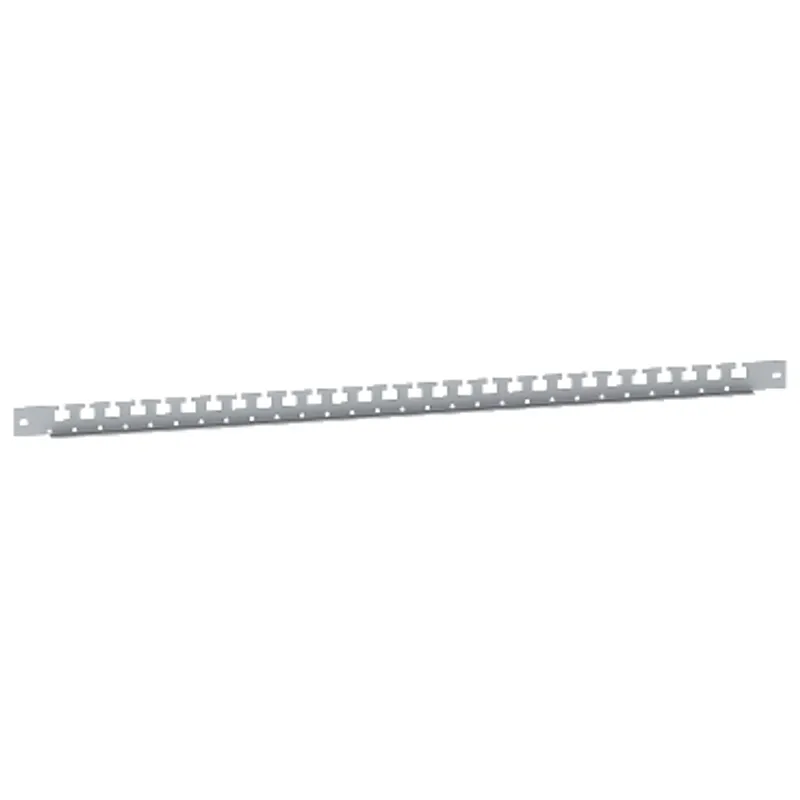

Door cable guides cross rail, PanelSeT SFN, PanelSeT SF, PanelSeT SM, W600mm
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | PanelSeT SM |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 542 kg |
Shipping & availability
When can NSYSDGCR6 be shipped?
NSYSDGCR6 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NSYSDGCR6 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NSYSDGCR6 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYSDGCR6, subject to availability and destination.
Spacial SF/SM door cable guides cross rail. Width is 600 mm. Mounting on door reinforcement frame. 2 cross rails and fixing elements incl. Adjustable in height every 25 mm on door reinforcement frame. Steel made, zinc coated surface finish.
Specifications
Specifications
| Range | PanelSeT |
| Product or component type | Door cable-guide cross rail |
| Application | Multi-purpose |
| Nominal dimensions of the housing | - |
| Mounting location | On door reinforcement frame |
| Range compatibility | PanelSeT SF, SM, SFX and SMX enclosures |
| Device composition | Fixing elements, 2 x cross rails |
| Quantity per set | Set of 1 |
| Material | Steel |
| Surface finish | Galvanized |
| Adjustment | Adjustable in height every 25 mm for on door reinforcement frame |
| Height | 30 mm |
| Width | Nominal: 600 mm, Fixing centers: 450 mm |
| Depth | 13 mm |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 3.000 cm |
| Package 1 Width | 7.000 cm |
| Package 1 Length | 56.000 cm |
| Package 1 Weight | 542.000 g |
| Unit Type of Package 2 | PAL |
| Number of Units in Package 2 | 35 |
| Package 2 Height | 40.000 cm |
| Package 2 Width | 37.500 cm |
| Package 2 Length | 120.000 cm |
| Package 2 Weight | 18.970 kg |
| Warranty | 18 months |
