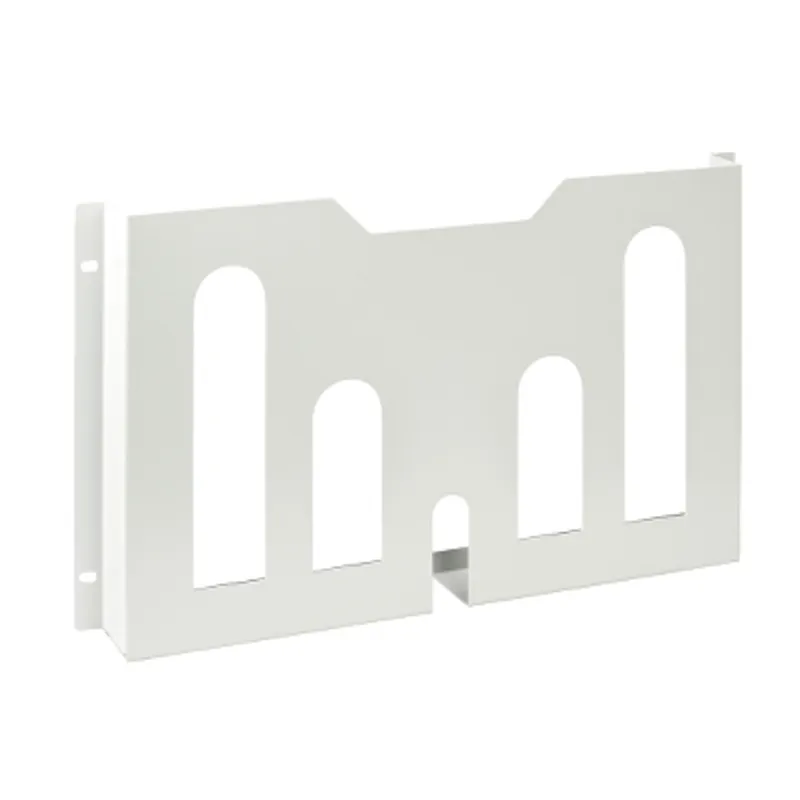

Schneider Electric NSYSDP6M
Document pocket, PanelSeT SFN, PanelSeT SF, steel, W600mm
- MPN
- NSYSDP6M
- EAN
- 3606485131429
- Category
- PanelSeT SM
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Schneider Electric NSYSDP6M?
This is a metal document pocket designed to be direct mounting on the reinforcement frame of the door. The product is suitable for PanelSeT SFN, PanelSeT SF and PanelSeT SM electrical enclosures. It is made of steel covered with epoxy polyester powder. The colour is grey RAL7035. It is adjustable in depth with a pitch of 25 mm. The width is 600mm. It contains 1 metal pocket and fixing elements.
Specifications
Specifications
| Range | PanelSeT |
| Product or component type | Document pocket |
| Application | Door accessories |
| Nominal dimensions of the housing | - |
| Mounting location | On door reinforcement frame |
| Mounting support | Direct mounting |
| Range compatibility | PanelSeT SF, SM, SFX and SMX enclosures |
| Device composition | 1 x metal document pocket, 1 x fixing element |
| Quantity per set | Set of 1 |
| Material | Door: steel |
| Colour | Door: grey (RAL 7035) |
| Surface finish | Painted |
| Fixing mode | Direct fixing - door location |
| Adjustment | Adjustable in height, steps of 25 mm for door |
| Height | Nominal: 282 mm |
| Width | Nominal: 600 mm |
| Depth | 65 mm |
Packaging
| Package 1 | 1 PCE, 46.500 cm × 28.000 cm × 6.000 cm (L × W × H), 1.524 kg |
| Package 2 | 60 PAM, 120.000 cm × 100.000 cm × 72.000 cm (L × W × H), 106.000 kg |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
NSYSDP6M: frequently asked questions
When can NSYSDP6M be shipped?
NSYSDP6M is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NSYSDP6M in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NSYSDP6M and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYSDP6M, subject to availability and destination.
