Schneider Electric NSYSDF168

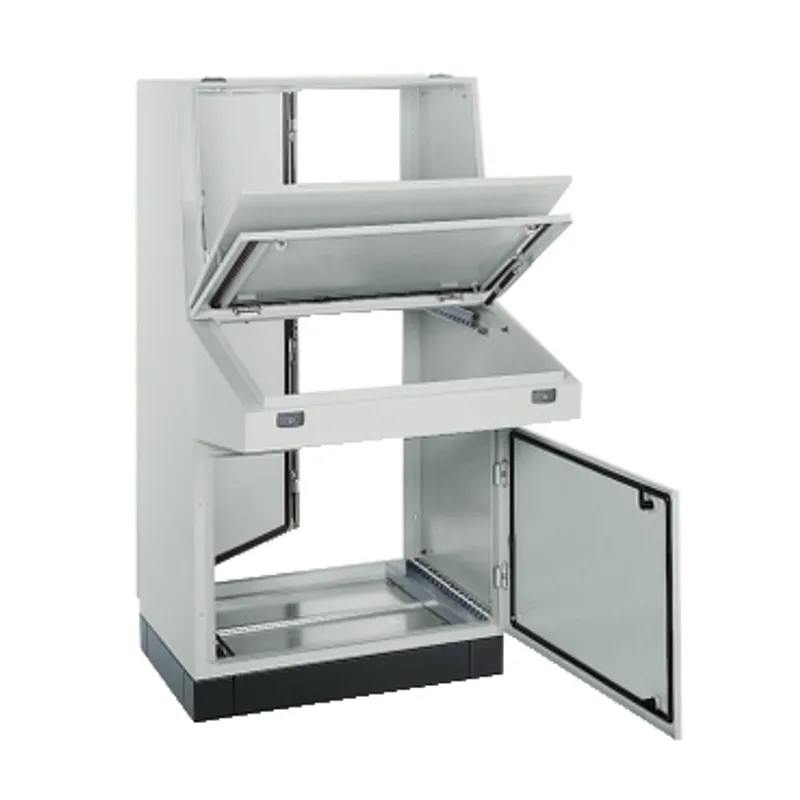

PanelSeT SD Control desk with console - H1400xW1600xD845 - IP55
- MPN
- NSYSDF168
- EAN
- 3606480162947
- Category
- PanelSet SD
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Schneider Electric NSYSDF168?
"PanelSeT SD floor-standing control desk with console and desk 1400mm (height), 1600mm (width) and 845mm (depth)" "Single piece structure folded and welded body made from 1,5mm steel" The enclosure is made up of 1 structure, 4 adjustment rails, 1 cable gland plate, 2 pneumatic stays for desk lid, 1 front console door, 1 desk lid, 2 mechanical stays for front console door, 6 locks for front door, 1 handle lock for rear door, 2 front doors and 2 rear doors Easy removable and reversible front and rear doors, opening to 120° Locking by 2 points lock, 3mm double-bar and handle lock, 5mm double bar Mounting plate is not included One entry cable gland plate, with polyurethane gasket Anti-corrosion protection is ensured by an epoxy-polyester powder coating Color of product is grey (RAL-7035) Ingress protection rating IP55 conforming to IEC 60529 Mechanical protection rating IK10 conforming to IEC 62262 "This product is qualified as a green premium, with minimal use of hazardous substances"
Specifications
Specifications
| Range | PanelSeT |
| Product name | PanelSeT SD |
| Enclosure type | Multi-purpose |
| Category | Control desk with console and desk |
| Nominal height | 1400 mm |
| Nominal width | 1600 mm |
| Nominal depth | 845 mm |
| Product installation | Floor-standing |
| Device composition | 1 structure, 4 adjustment rail, 1 cable gland plate, 2 pneumatic stay: desk lid, 1 front console door, 1 desk lid, 2 mechanical stay: front console door, 6 lock: front door, 1 handle lock: rear door, 2 front door, 2 rear door |
| Body type | Single piece structure folded and welded |
| Door type | Plain |
| Number of doors | Front: 2 door(s), Rear: 2 door(s) |
| Door opening side | Reversible 120 ° front and rear doors, Folding 75 ° desk lid and console cover |
| Lock type | 2 points lock, 3 mm double-bar, Handle lock, 5 mm double bar |
| Mounting plate description | Without mounting plate |
| Type of gland plate | 1 entry plate |
| Accessibility for operation | Rear, Front |
| Removable parts | Desk lid by hinges, Cable gland plate by clipping screws, Front door by hinges, Front console door by hinges, Rear door by hinges |
| Material | Body: steel |
| Surface finish | Epoxy-polyester powder |
| thickness | 1.5 mm |
| Colour | Grey (RAL 7035) |
| Standards | IEC 62208 |
| IP degree of protection | IP55 conforming to IEC 60529 |
| IK degree of protection | IK10 conforming to IEC 62262 |
Packaging
| Package 1 | 1 PCE, 88.000 cm × 162.000 cm × 153.000 cm (L × W × H), 135.000 kg |
