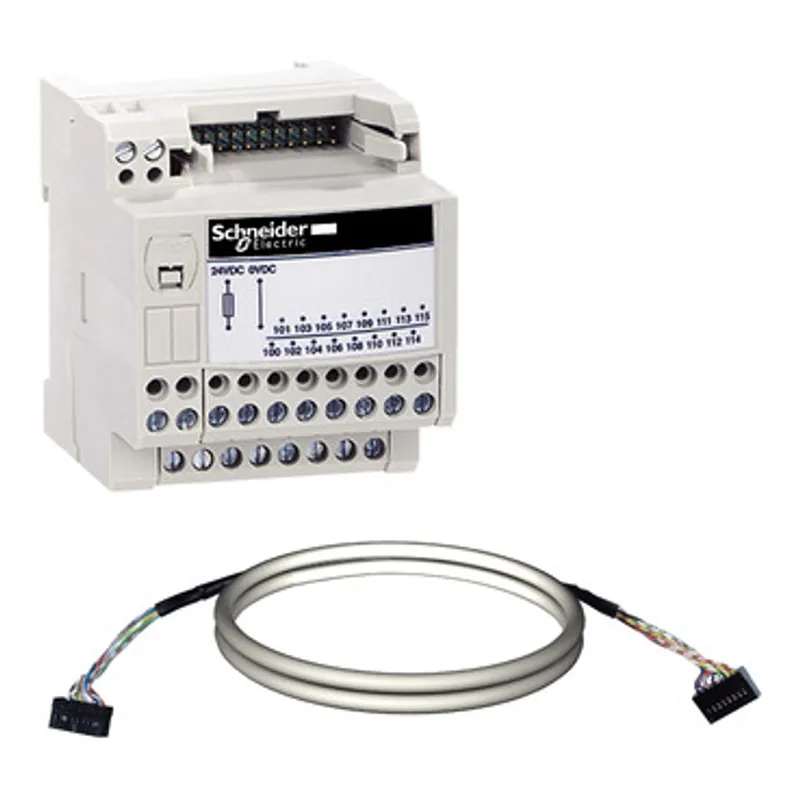

ABE7H16S21Passive connection sub-base ABE7 - 16 inputs or outputs - Led - isolator
Schneider Electric ABE7H20E200
Passive connection sub-base ABE7 - 16 inputs or outputs - Micro/Premium cable 2m
- MPN
- ABE7H20E200
- EAN
- 3389110250954
- Category
- Modicon ABE7
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Schneider Electric ABE7H20E200?
"This product is part of the Modicon ABE7 range, an offer of connection sub-bases for pre-wired system." "This is a kit containing one passive connection sub-base for 16 channels as digital I/O, with 1 terminal per channel, and one cordset to connect to the plc." "Its control circuit voltage is 24VDC." "It provides a digital I/O control function." "It is furnished with screw terminals for electrical connection and 20-way HE10 connection to programmable logic controllers." "The tightening torque of wiring is 0.6N.m with flat diameter 3.5mm screwdriver." "It is a economy sub-base with IP20 degree of protection. The cordset measures 2m long. The kit weighs 0.410kg." "It is suitable into any types of industrial applications needing rapid connection of I/O modules (digital, analog, and counter) to operative parts." "This product is certified by EAC." "It is suitable for use with TSX Micro and Premium PLCs, and Modicon X80 I/O modules." "Its fixing is done by clips (35mm symmetrical DIN rail) and screws (solid plate with fixing kit)." "Modicon ABE7 means greater simplicity to rationalise wiring in automation system equipment."
Specifications
Specifications
| Range of product | Modicon ABE7 |
| Product or component type | Passive discrete I/O sub-base |
| Sub-base type | Low cost sub-base |
| [Us] rated supply voltage | 19...30 V conforming to IEC 61131-2 |
| Number of channels | 16 |
| Number of terminal per channel | 1 |
| Connections - terminals | Screw type terminals, 1 x 0.09...1 x 1.5 mm² (AWG 28...AWG 16) flexible with cable end, Screw type terminals, 1 x 0.14...1 x 2.5 mm² (AWG 26...AWG 12) solid, Screw type terminals, 1 x 0.14...1 x 2.5 mm² (AWG 26...AWG 14) flexible without cable end, Screw type terminals, 2 x 0.09...2 x 0.75 mm² (AWG 28...AWG 20) flexible with cable end, Screw type terminals, 2 x 0.2...2 x 2.5 mm² (AWG 24...AWG 14) solid |
| supply voltage type | DC |
| Number of horizontal rows | 2 |
| Product compatibility | Modicon Premium PLC, Modicon TSX Micro PLC |
| Status LED | 1 LED per channel (green) channel status, 1 LED (green) power ON |
| Short-circuit protection | 2 A internal fuse, 5 x 20 mm, fast blow (PLC end) |
| Fixing mode | By clips (35 mm symmetrical DIN rail), By screws (solid plate with fixing kit) |
| Maximum supply current | 1.8 A |
| Current per channel | 0.5 A |
| Maximum current per output common | 1.8 A |
| Voltage drop on power supply fuse | 0.3 V |
| [Ui] rated insulation voltage | 2000 V terminals/mounting rails |
| Installation category | II conforming to IEC 60664-1 |
| Tightening torque | 0.6 N.m with flat Ø 3.5 mm screwdriver |
| Net weight | 0.41 kg |
| Product certifications | UL, CSA, GL, DNV, EAC |
| IP degree of protection | IP2X conforming to IEC 60529 |
| Resistance to incandescent wire | 750 °C, extinction time <30 s conforming to IEC 60695-2-11 |
| Shock resistance | 15 gn for 11 ms conforming to IEC 60068-2-27 |
| Vibration resistance | 2 gn (f= 10…150 Hz) conforming to IEC 60068-2-6 |
| Resistance to electrostatic discharge | 4 kV (contact) level 3 conforming to IEC 61000-4-2, 8 kV (air) level 3 conforming to IEC 61000-4-2 |
| Resistance to radiated fields | 10 V/m (26000000…1000000000 Hz) conforming to IEC 61000-4-3 level 3 |
| Resistance to fast transients | 2 kV level 3 conforming to IEC 61000-4-4 |
| Ambient air temperature for operation | -5…60 °C conforming to IEC 61131-2 |
| Ambient air temperature for storage | -40…80 °C conforming to IEC 61131-2 |
| Pollution degree | 2 conforming to IEC 60664-1 |
Packaging
| Package 1 | 1 PCE, 29.0 cm × 20.7 cm × 7.7 cm (L × W × H), 385.0 g |
| Package 2 | 10 S04, 60.0 cm × 40.0 cm × 30.0 cm (L × W × H), 4.642 kg |
