Schneider Electric ABE7H20E100

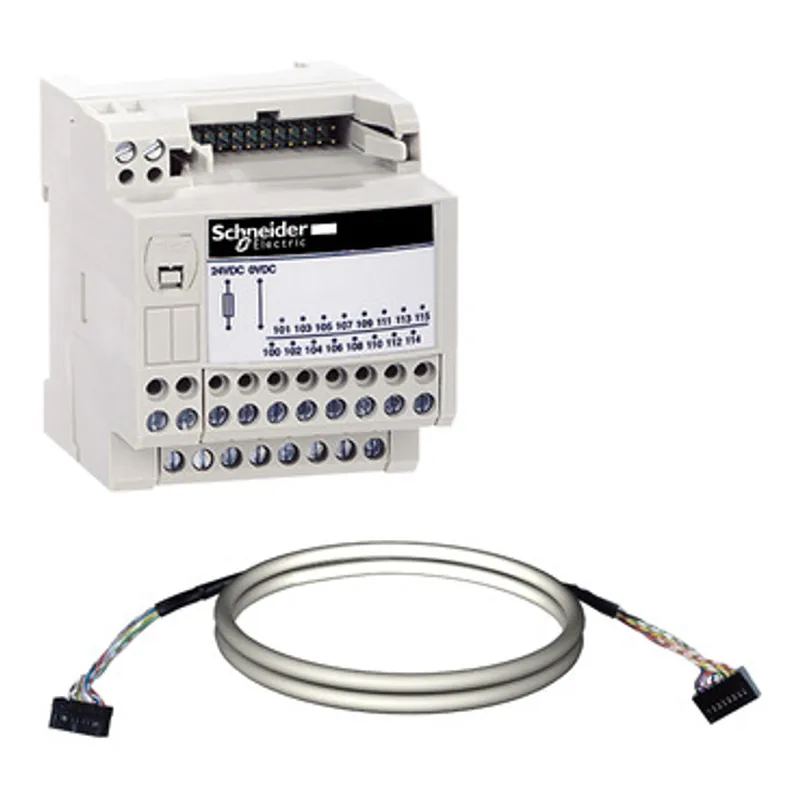

Passive connection sub-base ABE7 - 16 inputs or outputs - Micro/Premium cable 1m
- MPN
- ABE7H20E100
- EAN
- 3389110251043
- Category
- Modicon ABE7
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Schneider Electric ABE7H20E100?
This product is part of the Modicon ABE7 range, an offer of connection sub-bases for Telefast pre-wired system. This passive discrete I/O sub-base offers 16 channels with 1 terminal per channel. The Low cast sub-base offers a rated supply voltage of 19V to 30V. It is furnished with screw clamp terminals for electrical connection. It is an IP2x rated product. It weighs 0.33kg. It is suitable for all types of industrial applications. This product is certified by GL, CSA, DNV, BV, LROS, UL, GL and EAC. It is compatible with Modicon TSX Micro PLC and Modicon Premium PLC. The fixing is done by clips (35mm symmetrical DIN rail) and screws (solid plate with fixing kit). Modicon ABE7 means greater simplicity to rationalize wiring in your automation system equipment. Pre-wired system enabling connection and adaptation of control signals of PLC cards equipped with HE10 connectors.
Specifications
Specifications
| Range of product | Modicon ABE7 |
| Product or component type | Passive discrete I/O sub-base |
| Sub-base type | Low cost sub-base |
| [Us] rated supply voltage | 19...30 V conforming to IEC 61131-2 |
| Number of channels | 16 |
| Number of terminal per channel | 1 |
| Connections - terminals | Screw type terminals, 1 x 0.09...1 x 1.5 mm² (AWG 28...AWG 16) flexible with cable end, Screw type terminals, 1 x 0.14...1 x 2.5 mm² (AWG 26...AWG 12) solid, Screw type terminals, 1 x 0.14...1 x 2.5 mm² (AWG 26...AWG 14) flexible without cable end, Screw type terminals, 2 x 0.09...2 x 0.75 mm² (AWG 28...AWG 20) flexible with cable end, Screw type terminals, 2 x 0.2...2 x 2.5 mm² (AWG 24...AWG 14) solid |
| supply voltage type | DC |
| Number of horizontal rows | 2 |
| Product compatibility | Modicon TSX Micro PLC, Modicon Premium PLC |
| Status LED | 1 LED (green) power ON, 1 LED (amber) APP1 |
| Short-circuit protection | 2 A internal fuse, 5 x 20 mm, fast blow (PLC end) |
| Fixing mode | By clips (35 mm symmetrical DIN rail), By screws (solid plate with fixing kit) |
| Maximum supply current | 1.8 A |
| Current per channel | 0.5 A |
| Maximum current per output common | 1.8 A |
| Voltage drop on power supply fuse | 0.3 V |
| [Ui] rated insulation voltage | 2000 V terminals/mounting rails |
| Installation category | II conforming to IEC 60664-1 |
| Tightening torque | 0.6 N.m with flat Ø 3.5 mm screwdriver |
| Net weight | 0.33 kg |
| Product certifications | GL, DNV, UL, CSA, EAC |
| IP degree of protection | IP2X conforming to IEC 60529 |
| Resistance to incandescent wire | 750 °C, extinction time <30 s conforming to IEC 60695-2-11 |
| Shock resistance | 15 gn for 11 ms conforming to IEC 60068-2-27 |
| Vibration resistance | 2 gn (f= 10…150 Hz) conforming to IEC 60068-2-6 |
| Resistance to electrostatic discharge | 4 kV (contact) level 3 conforming to IEC 61000-4-2, 8 kV (air) level 3 conforming to IEC 61000-4-2 |
| Resistance to radiated fields | 10 V/m (26000000…1000000000 Hz) conforming to IEC 61000-4-3 level 3 |
| Resistance to fast transients | 2 kV level 3 conforming to IEC 61000-4-4 |
| Ambient air temperature for operation | -5…60 °C conforming to IEC 61131-2 |
| Ambient air temperature for storage | -40…80 °C conforming to IEC 61131-2 |
| Pollution degree | 2 conforming to IEC 60664-1 |
Packaging
| Package 1 | 1 PCE, 29.000 cm × 20.600 cm × 7.600 cm (L × W × H), 317.000 g |
| Package 2 | 10 S04, 60.000 cm × 40.000 cm × 30.000 cm (L × W × H), 3.935 kg |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
ABE7H20E100: frequently asked questions
When can ABE7H20E100 be shipped?
ABE7H20E100 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up ABE7H20E100 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for ABE7H20E100 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for ABE7H20E100, subject to availability and destination.
