Schneider Electric ABE7H34E200

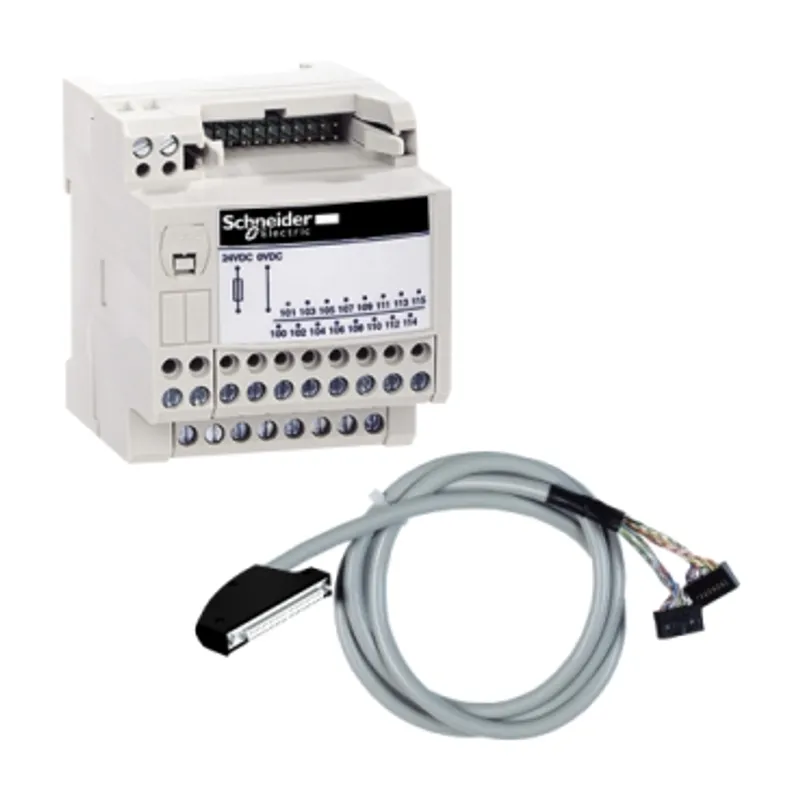

Passive connection sub-base, Modicon ABE7, 16 inputs or outputs, wiring kit, cable 2m
- MPN
- ABE7H34E200
- EAN
- 3389119412438
- Category
- Modicon ABE7
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Schneider Electric ABE7H34E200?
"This product is part of the Modicon ABE7 range, an offer of connection sub-bases for Telefast pre-wired system." "This is a kit containing two sub-bases and a 2meter long Y-cordset." "Sub-bases provide 2x16 modularity input/output channels with 1 terminal per channel. Y-cordset is equipped with 1x 40-way FCN, and 2x HE10 20-way connectors." "This product is designed to simplify I/O connection to a PLC within a control panel, and connects to channels with HE 10 and SUB-D connectors." "It is a sub base with a maximum supply current of 1.8A and a rated supply voltage of 19V to 30V" "It is furnished with screw clamp terminals for electrical connection. It is an IP2x rated product." "This kit weighs 0.725kg." "It is suitable for all types of industrial applications managed with Modicon X80 I/O modules or Modicon M340 controllers." "This kit is certified by GL, CSA, DNV, BV, LROS, UL, GL and EAC." "This kit is compatible with Modicon X80 I/O modules or Modicon M340 controllers." "The fixing is done by clips (35mm symmetrical DIN rail) and screws (solid plate with fixing kit)." "Modicon ABE7 means greater simplicity to rationalise wiring in automation system equipment." "Pre-wired system enabling connection and adaptation of control signals of PLC cards equipped with HE10 connectors."
Specifications
Specifications
| Range of product | Modicon ABE7 |
| Product or component type | Passive discrete I/O sub-base |
| Sub-base type | Low cost sub-base |
| [Us] rated supply voltage | 19...30 V conforming to IEC 61131-2 |
| Number of channels | 16 |
| Number of terminal per channel | 1 |
| Connections - terminals | Screw type terminals, 1 x 0.09...1 x 1.5 mm² (AWG 28...AWG 16) flexible with cable end, Screw type terminals, 1 x 0.14...1 x 2.5 mm² (AWG 26...AWG 12) solid, Screw type terminals, 1 x 0.14...1 x 2.5 mm² (AWG 26...AWG 14) flexible without cable end, Screw type terminals, 2 x 0.09...2 x 0.75 mm² (AWG 28...AWG 20) flexible with cable end, Screw type terminals, 2 x 0.2...2 x 2.5 mm² (AWG 24...AWG 14) solid |
| supply voltage type | DC |
| Number of horizontal rows | 2 |
| Product compatibility | Modicon Premium PLC, Modicon TSX Micro PLC |
| Status LED | 1 LED per channel (green) channel status, 1 LED (green) power ON |
| Short-circuit protection | 2 A internal fuse, 5 x 20 mm, fast blow (PLC end) |
| Fixing mode | By clips (35 mm symmetrical DIN rail), By screws (solid plate with fixing kit) |
| Maximum supply current | 1.8 A |
| Current per channel | 0.5 A |
| Maximum current per output common | 1.8 A |
| Voltage drop on power supply fuse | 0.3 V |
| [Ui] rated insulation voltage | 2000 V terminals/mounting rails |
| Installation category | II conforming to IEC 60664-1 |
| Tightening torque | 0.6 N.m with flat Ø 3.5 mm screwdriver |
| Net weight | 0.41 kg |
| Product certifications | UL, CSA, GL, DNV, EAC |
| IP degree of protection | IP2X conforming to IEC 60529 |
| Resistance to incandescent wire | 750 °C, extinction time <30 s conforming to IEC 60695-2-11 |
| Shock resistance | 15 gn for 11 ms conforming to IEC 60068-2-27 |
| Vibration resistance | 2 gn (f= 10…150 Hz) conforming to IEC 60068-2-6 |
| Resistance to electrostatic discharge | 4 kV (contact) level 3 conforming to IEC 61000-4-2, 8 kV (air) level 3 conforming to IEC 61000-4-2 |
| Resistance to radiated fields | 10 V/m (26000000…1000000000 Hz) conforming to IEC 61000-4-3 level 3 |
| Resistance to fast transients | 2 kV level 3 conforming to IEC 61000-4-4 |
| Ambient air temperature for operation | -5…60 °C conforming to IEC 61131-2 |
| Ambient air temperature for storage | -40…80 °C conforming to IEC 61131-2 |
| Pollution degree | 2 conforming to IEC 60664-1 |
Packaging
| Package 1 | 1 PCE, 29.000 cm × 20.700 cm × 8.000 cm (L × W × H), 754.000 g |
| Package 2 | 10 S04, 60.000 cm × 40.000 cm × 30.000 cm (L × W × H), 8.200 kg |
