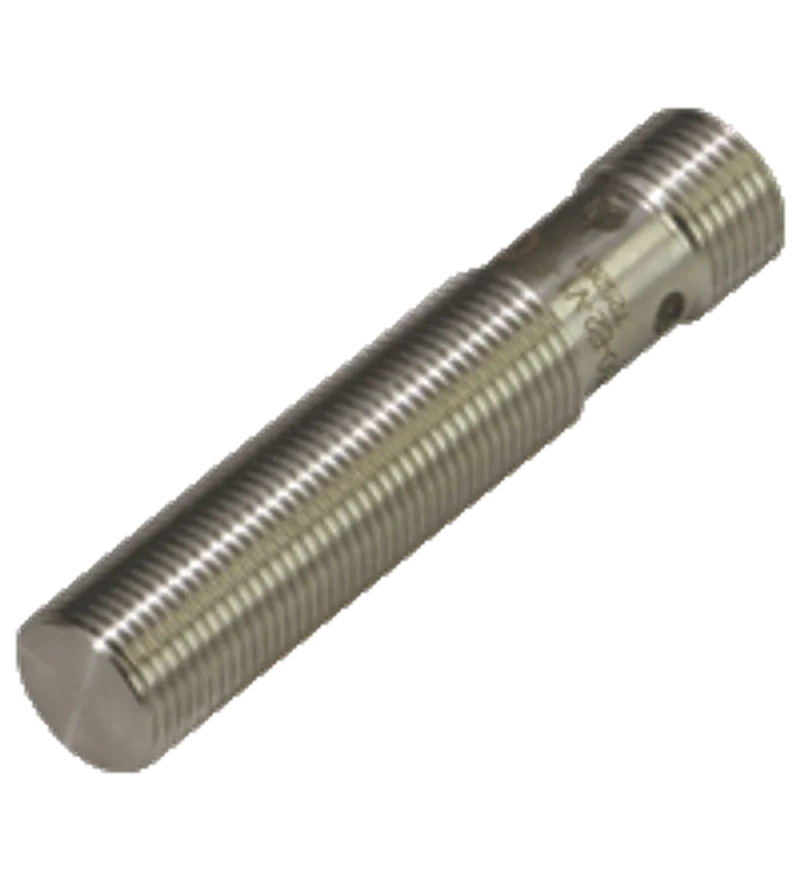

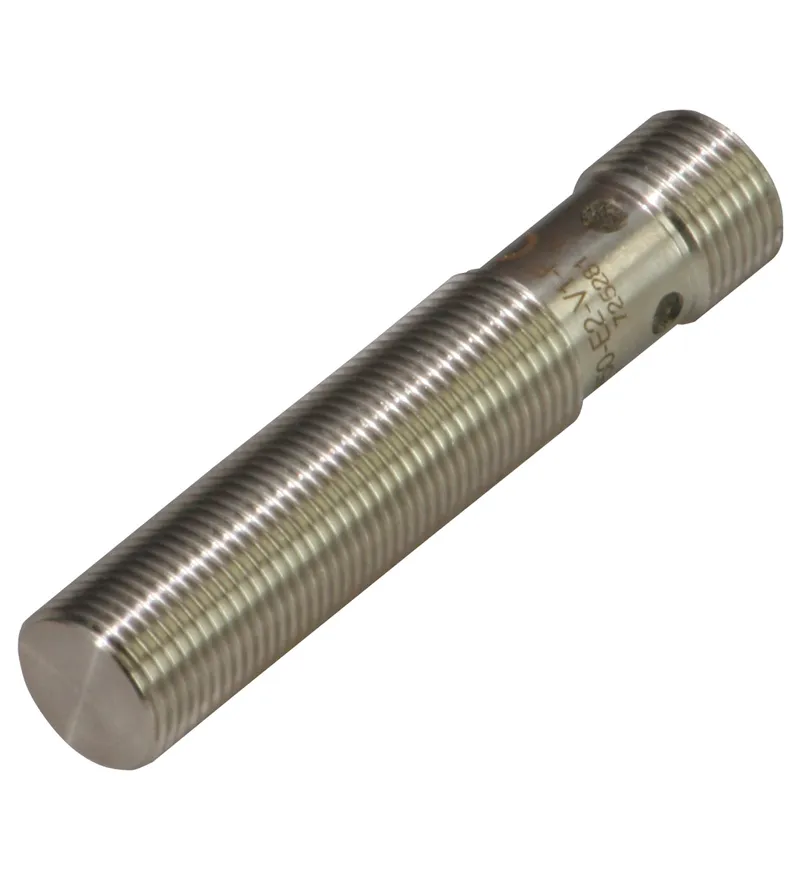

Pepperl Fuchs MMB70-12GH50-1N-V1
Magnetic field sensor
- MPN
- MMB70-12GH50-1N-V1
- Category
- Magnetic Field Sensors
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Pepperl Fuchs MMB70-12GH50-1N-V1?
Comfort series
70 mm flush
Switching function: Normally open (NO), Output type: NAMUR, Installation: flush in non-magnetic metal, Output type: 2-wire, Thread mold: M12, Construction type: Cylindrical, thread, Series: Cylindrical type, Threading: with, Type of voltage: DC, Equipment protection level Ga: IECEx TUN 20.0007, Equipment protection level Da: IECEx TUN 20.0007, Equipment protection level Ga: TÜV 20 ATEX 241336, Equipment protection level Da: TÜV 20 ATEX 241336, Connection type: Connector plug
Specifications
General specifications
| Order code (Pepperl+Fuchs part number) | 70108302 |
| Switching function | Normally open (NO) |
| Output type | NAMUR |
| Rated operating distance | 5 ... 70 mm sn |
| Installation | flush in non-magnetic metal |
| Output type | 2-wire |
| Lifecycle | Active (current Pepperl+Fuchs product) |
Nominal ratings
| Nominal voltage | 8.2 V (Ri approx. 1 kΩ) Uo |
| Switching frequency | 0 ... 1000 Hz f |
| Current consumption: Magnet detected | ≥ 2.3 mA |
| Current consumption: Magnet not detected | ≤ 1 mA |
| Switching state indicator | LED, yellow |
Safety-relevant product characteristics
| MTTFd | 2828 a |
| Mission Time (TM) | 20 a |
| Diagnostic Coverage (DC) | 0 % |
Compliance with standards and directives
| Standard conformity: NAMUR | EN 60947-5-6:2000 |
| Standard conformity: Standards | EN 60947-5-2:2007 EN 60947-5-2/A1:2012 |
Approvals and certificates
| IECEx approval: Equipment protection level Ga | IECEx TUN 20.0007 |
| IECEx approval: Equipment protection level Da | IECEx TUN 20.0007 |
| ATEX approval: Equipment protection level Ga | TÜV 20 ATEX 241336 |
| ATEX approval: Equipment protection level Da | TÜV 20 ATEX 241336 |
Ambient conditions
| Ambient temperature | -25 ... 70 °C (-13 ... 158 °F) |

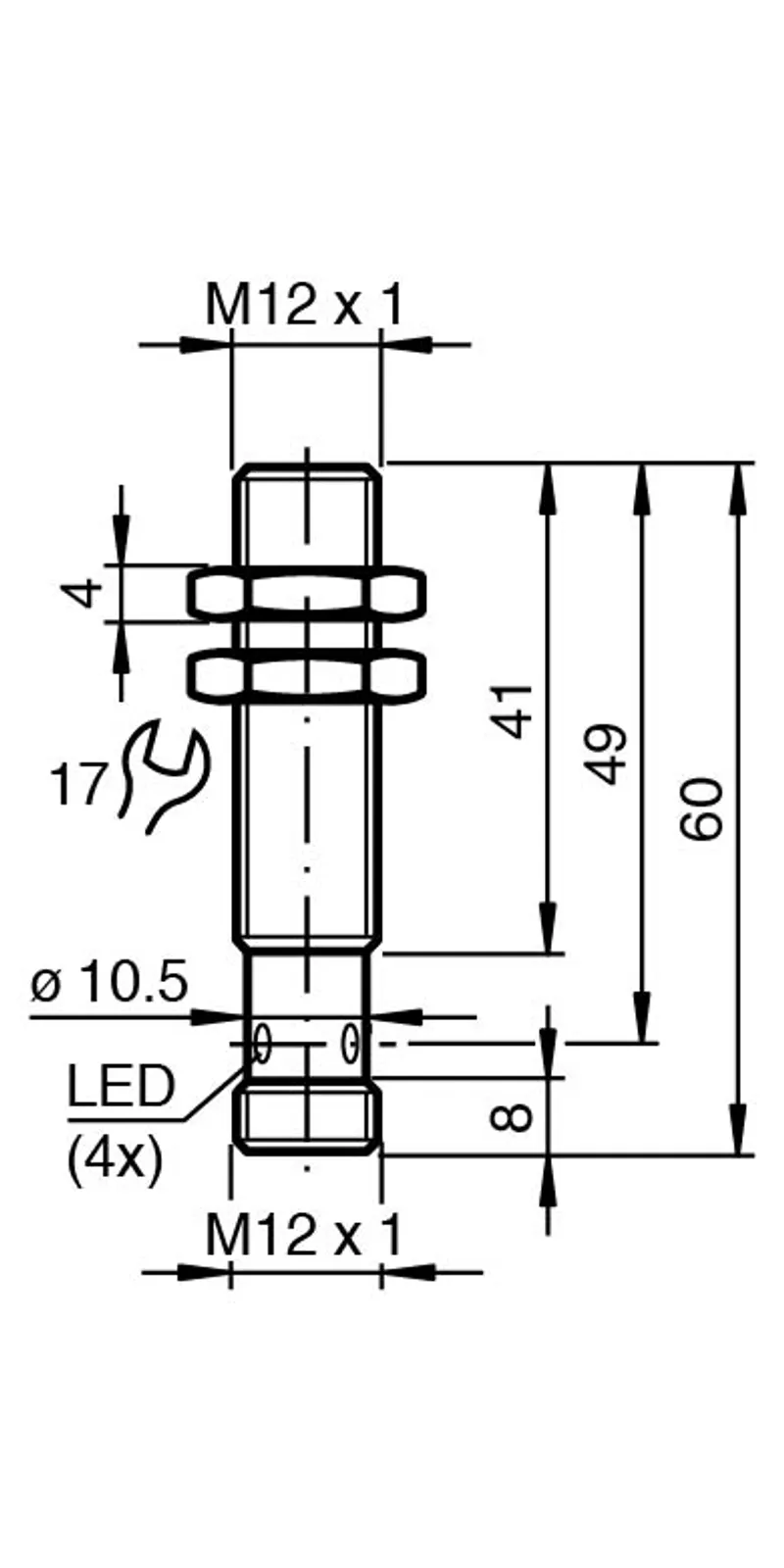

Mechanical specifications

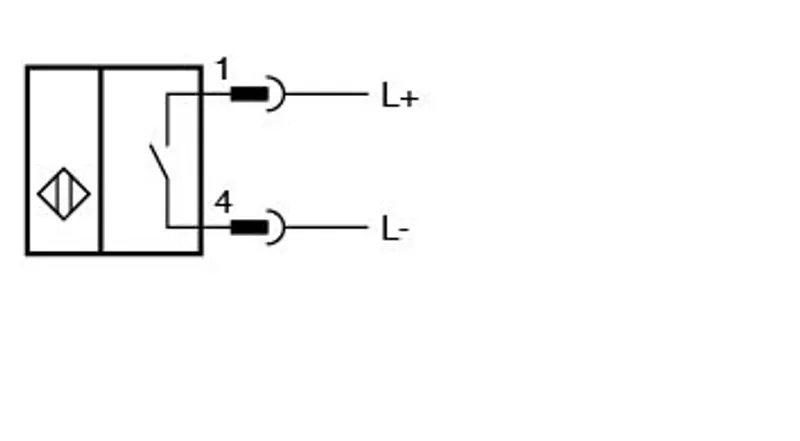

| Connection type | Connector plug |
| Housing material | Stainless steel 1.4404 / AISI 316L |
| Sensing face | Stainless steel 1.4404 / AISI 316L |
| Degree of protection | IP67 |
| Connector: Threading | M12 x 1 |
| Connector: Number of pins | 4 |
| Dimensions: Length | 60 mm |
| Dimensions: Diameter | 12 mm |
General information
| Use in the hazardous area | see instruction manuals |
