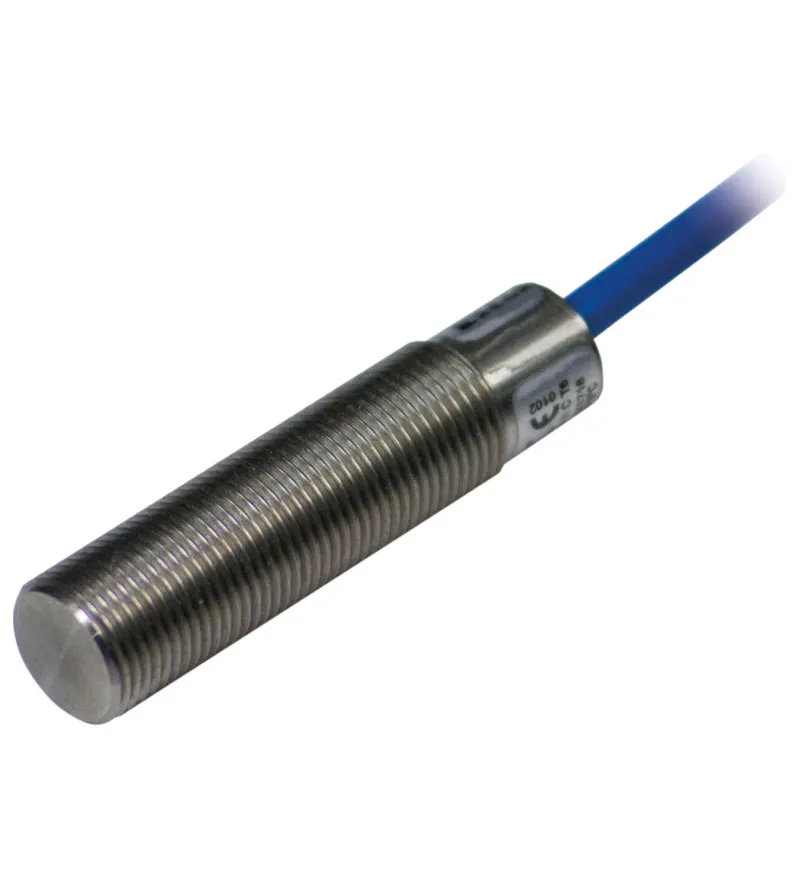

Pepperl Fuchs MMB70-12GH50-1N
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Magnetic Field Sensors |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can MMB70-12GH50-1N be shipped?
MMB70-12GH50-1N is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up MMB70-12GH50-1N in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for MMB70-12GH50-1N and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for MMB70-12GH50-1N, subject to availability and destination.
Magnetic field sensor. Switching function: Normally open (NO), Output type: NAMUR, Installation: flush in non-magnetic metal, Output type: 2-wire, Thread mold: M12, Construction type: Cylindrical, thread, Type of voltage: DC, Equipment protection level Ga: IECEx TUN 20.0007, Equipment protection level Da: IECEx TUN 20.0007, Equipment protection level Ga: TÜV 20 ATEX 241336, Equipment protection level Da: TÜV 20 ATEX 241336, Connection type: cable, Housing material: Stainless steel 1.4404 / AISI 316L, Degree of protection: IP67. Switching function: Normally open (NO). Output type: NAMUR. Rated operating distance: 5 ... 70 mm. Installation: flush in non-magnetic metal. Output type: 2-wire. Nominal voltage: 8.2 V (Ri approx. 1 kΩ). Switching frequency: 0 ... 1000 Hz. Current consumption: . Magnet detected≥ 2.3 mAMagnet not detected≤ 1 mA: . Magnet detected: ≥ 2.3 mA. Magnet not detected: ≤ 1 mA. Switching state indicator: LED, yellow. MTTFd: 2828 a. Mission Time (TM): 20 a. Diagnostic Coverage (DC): 0 %. Standard conformity: . NAMUREN 60947-5-6:2000StandardsEN 60947-5-2:2007 EN 60947-5-2/A1:2012: . NAMUR: EN 60947-5-6:2000. Standards: EN 60947-5-2:2007 EN 60947-5-2/A1:2012. IECEx approval: . Equipment protection level GaIECEx TUN 20.0007Equipment protection level DaIECEx TUN 20.0007: . Equipment protection level Ga: IECEx TUN 20.0007. Equipment protection level Da: IECEx TUN 20.0007. ATEX approval: . Equipment protection level GaTÜV 20 ATEX 241336Equipment protection level DaTÜV 20 ATEX 241336: . Equipment protection level Ga: TÜV 20 ATEX 241336. Equipment protection level Da: TÜV 20 ATEX 241336. Ambient temperature: -25 ... 70 °C (-13 ... 158 °F). Connection type: cable. Housing material: Stainless steel 1.4404 / AISI 316L. Sensing face: Stainless steel 1.4404 / AISI 316L. Degree of protection: IP67. Cable: . Wire end ferrulesyesMaterialPVCColorblueNumber of cores2Core cross section0.34 mm2LengthL2 m: . Wire end ferrules: yes. Material: PVC. Color: blue. Number of cores: 2. Core cross section: 0.34 mm2. Length: 2 m. Dimensions: . Length50 mmDiameter12 mm: . Length: 50 mm. Diameter: 12 mm. Use in the hazardous area: see instruction manuals
Specifications
General specifications
| Switching function | Normally open (NO) |
| Output type | NAMUR |
| Rated operating distance | 5 ... 70 mm sn |
| Installation | flush in non-magnetic metal |
| Output type | 2-wire |
Nominal ratings
| Nominal voltage | 8.2 V (Ri approx. 1 kΩ) Uo |
| Switching frequency | 0 ... 1000 Hz f |
| Current consumption | |
| Magnet detected≥ 2.3 mAMagnet not detected≤ 1 mA | Magnet detected |
| Magnet detected | ≥ 2.3 mA |
| Magnet not detected | ≤ 1 mA |
| Switching state indicator | LED, yellow |
Safety-relevant product characteristics
| MTTFd | 2828 a |
| Mission Time (TM) | 20 a |
| Diagnostic Coverage (DC) | 0 % |
Compliance with standards and directives
| Standard conformity | |
| NAMUREN 60947-5-6:2000StandardsEN 60947-5-2:2007 EN 60947-5-2/A1:2012 | NAMUR |
| NAMUR | EN 60947-5-6:2000 |
| Standards | EN 60947-5-2:2007 EN 60947-5-2/A1:2012 |
Approvals and certificates
| IECEx approval | |
| Equipment protection level GaIECEx TUN 20.0007Equipment protection level DaIECEx TUN 20.0007 | Equipment protection level Ga |
| Equipment protection level Ga | IECEx TUN 20.0007 |
| Equipment protection level Da | IECEx TUN 20.0007 |
| ATEX approval | |
| Equipment protection level GaTÜV 20 ATEX 241336Equipment protection level DaTÜV 20 ATEX 241336 | Equipment protection level Ga |
| Equipment protection level Ga | TÜV 20 ATEX 241336 |
| Equipment protection level Da | TÜV 20 ATEX 241336 |
Ambient conditions
| Ambient temperature | -25 ... 70 °C (-13 ... 158 °F) |
Mechanical specifications
| Connection type | cable |
| Housing material | Stainless steel 1.4404 / AISI 316L |
| Sensing face | Stainless steel 1.4404 / AISI 316L |
| Degree of protection | IP67 |
| Cable | |
| Wire end ferrulesyesMaterialPVCColorblueNumber of cores2Core cross section0.34 mm2LengthL2 m | Wire end ferrules |
| Wire end ferrules | yes |
| Material | PVC |
| Color | blue |
| Number of cores | 2 |
| Core cross section | 0.34 mm2 |
| Length | 2 m L |

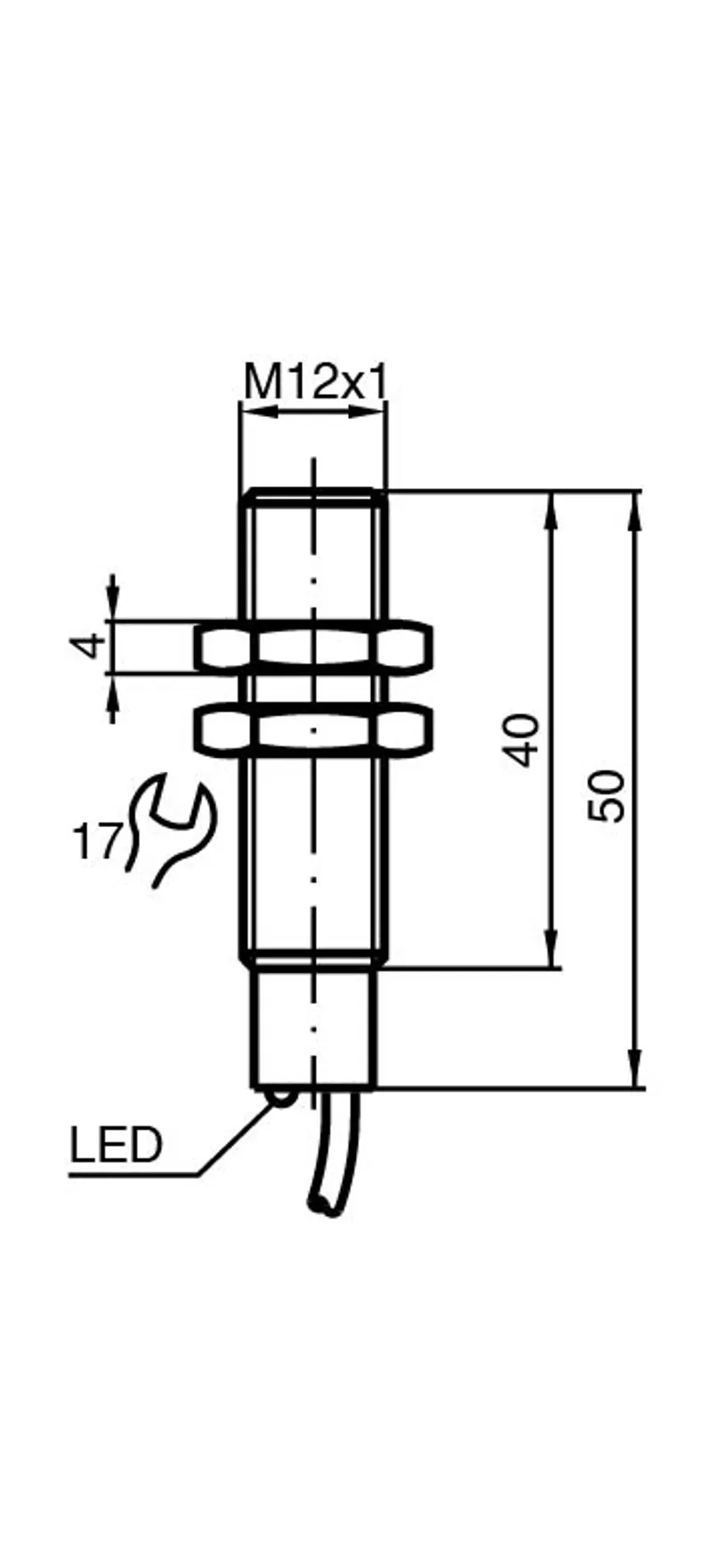

| Dimensions | |
| Length50 mmDiameter12 mm | Length |
| Length | 50 mm |
| Diameter | 12 mm |
General information
| Use in the hazardous area | see instruction manuals |
