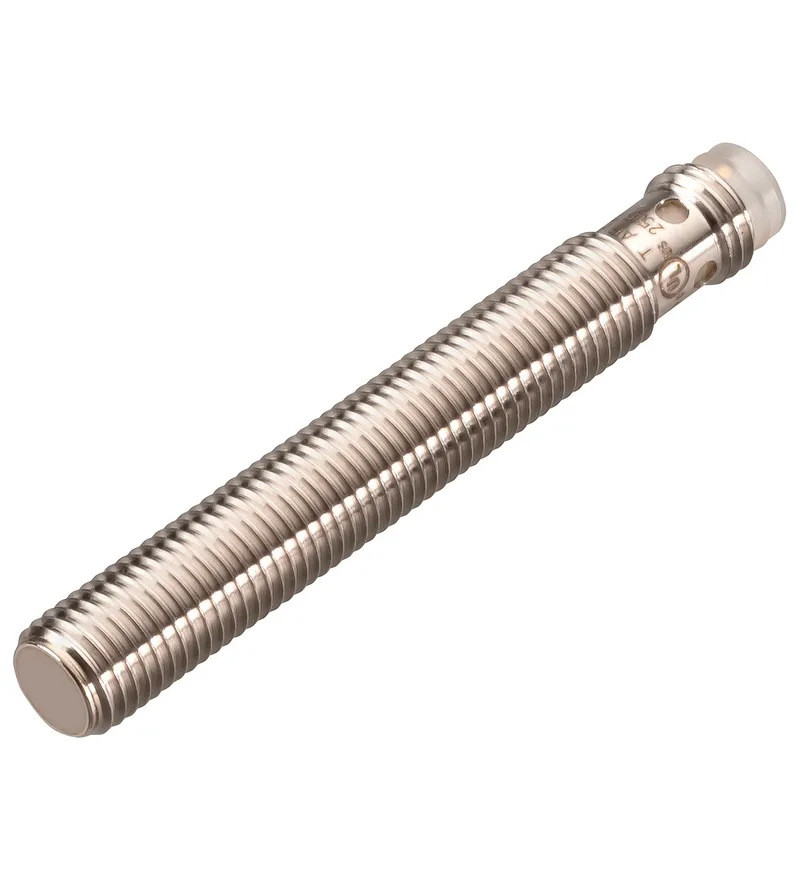

Pepperl Fuchs MMB60-8GH50-E2-V3
Magnetic field sensor
- MPN
- MMB60-8GH50-E2-V3
- Category
- Magnetic Field Sensors
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Pepperl Fuchs MMB60-8GH50-E2-V3?
Sensing range 60 mm based on DM60-31-15 magnet
Stainless steel sensing face
3-wire DC
Switching function: Normally open (NO), Output type: PNP, Installation: flush in non-magnetic metal, Output polarity: DC, Output type: 3-wire, Thread mold: M8, Construction type: Cylindrical, thread, Series: Cylindrical type, Threading: with, Type of voltage: DC, Connection type: Connector plug, Housing material: Stainless steel 1.4404 / AISI 316L, Degree of protection: IP67
Specifications
General specifications
| Order code (Pepperl+Fuchs part number) | 70192632 |
| Switching function | Normally open (NO) |
| Output type | PNP |
| Rated operating distance | 60 mm sn |
| Installation | flush in non-magnetic metal |
| Output polarity | DC |
| Actuating element | Magnet DM 60-31-15 |
| Output type | 3-wire |
| Lifecycle | Active (current Pepperl+Fuchs product) |
Nominal ratings
| Operating voltage | 10 ... 30 V UB |
| Switching frequency | 0 ... 5000 Hz f |
| Hysteresis | 1 ... 10 % H |
| Reverse polarity protection | reverse polarity protected |
| Short-circuit protection | pulsing |
| Voltage drop | ≤ 2.5 V Ud |
| Operating current | ≤ 200 mA IL |
| Off-state current | max. 0.5 mA Ir |
| Usage category | DC-12 , DC-13 |
| Time delay before availability | < 50 ms tv |
| Switching state indicator | Multihole-LED, yellow |
Safety-relevant product characteristics
| MTTFd | 2890 a |
| Diagnostic Coverage (DC) | 0 % |
Compliance with standards and directives
| Standard conformity: Standards | EN IEC 60947-5-2 |
Approvals and certificates
| Protection class | III |
| Rated insulation voltage | 60 V Ui |
| Rated impulse withstand voltage | 1000 V (1.2/50 µs, 500 Ω, 0.5 J) Uimp |
| UL approval: Ordinary Location | cULus Listed, General Purpose, Class 2 Power Source, Type 1 enclosure |
| UL approval: Maximum permissible ambient temperature | max. 60 °C (max. 140 °F) |
| CCC approval | CCC approval / marking not required for products rated ≤36 V |
Ambient conditions
| Ambient temperature | -25 ... 75 °C (-13 ... 167 °F) |
| Storage temperature | -25 ... 75 °C (-13 ... 167 °F) |
| Pollution degree | 3 |
Mechanical specifications
| Connection type | Connector plug |
| Housing material | Stainless steel 1.4404 / AISI 316L |
| Degree of protection | IP67 |
| Connector: Threading | M8 x 1 |
| Connector: Number of pins | 3 |

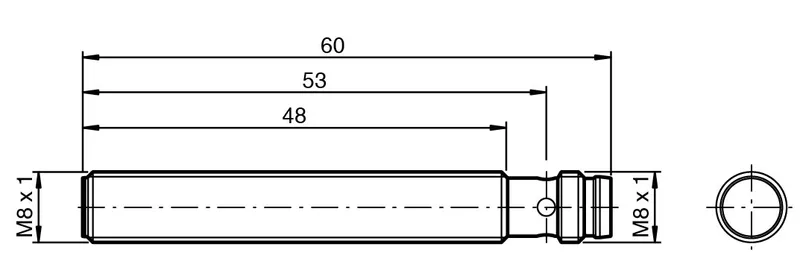

| Dimensions: Length | 60 mm |
| Dimensions: Diameter | 8 mm |
| Tightening torque | ≤ 5 Nm |
General information
| Scope of delivery | Supplied with 2 nuts , brass |
Downloads & documentation
Official documents from Pepperl Fuchs, downloaded directly from the manufacturer.
Data sheets & manuals
CAD & dimension drawings
