Pepperl Fuchs MMB70-18GH50-E2-V1
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Magnetic Field Sensors |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can MMB70-18GH50-E2-V1 be shipped?
MMB70-18GH50-E2-V1 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up MMB70-18GH50-E2-V1 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for MMB70-18GH50-E2-V1 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for MMB70-18GH50-E2-V1, subject to availability and destination.

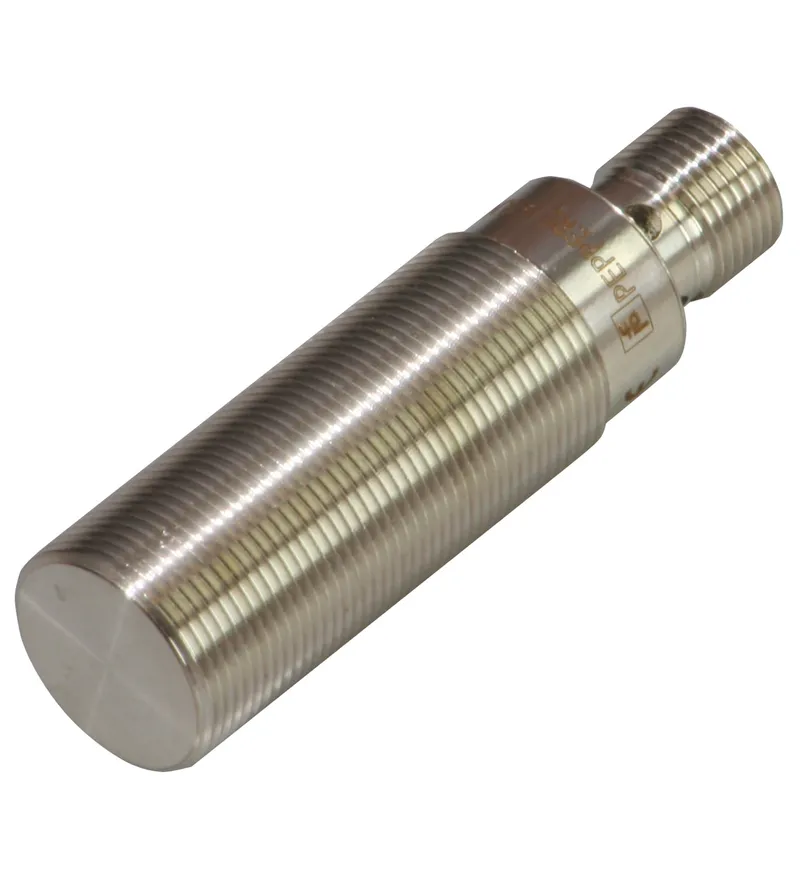

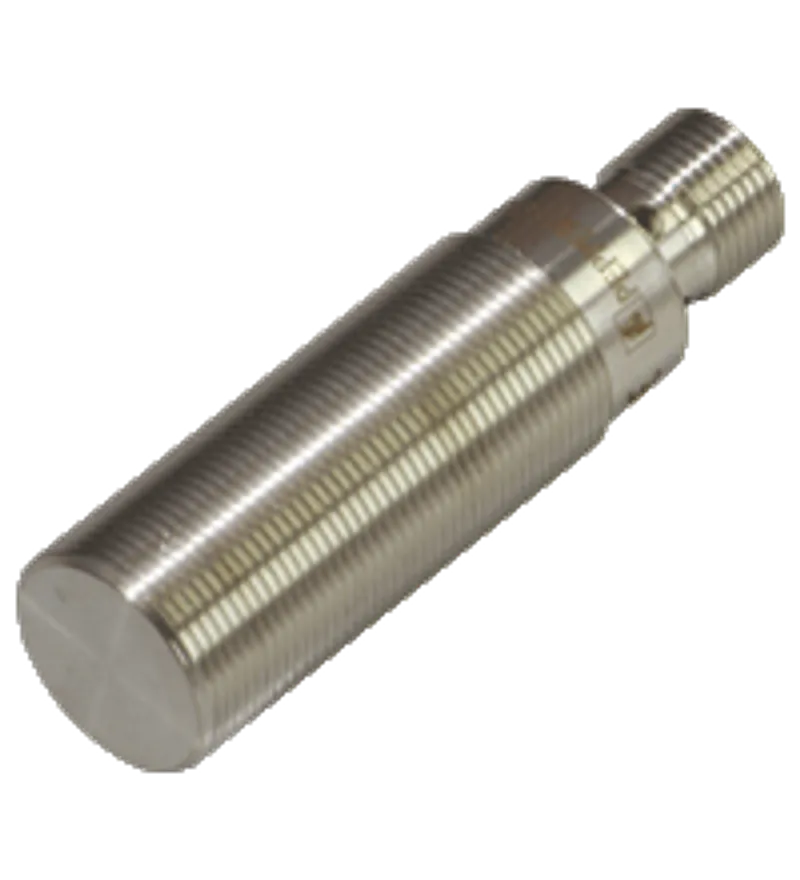

Magnetic field sensor. metal face, Switching function: Normally open (NO), Output type: PNP, Installation: flush, Output polarity: DC, Output type: 3-wire, Series: Cylindrical type, Threading: with, Operating voltage: 10 ... 30 V DC, Type of voltage: DC, Connection type: Connector plug, Housing material: stainless steel V4A, Degree of protection: IP65 / IP67 /. Switching function: Normally open (NO). Output type: PNP. Rated operating distance: 70 mm. Installation: flush. Output polarity: DC. Actuating element: magnetic. Output type: 3-wire. Operating voltage: 10 ... 30 V DC. Switching frequency: 5000 Hz. Hysteresis: 1 ... 10 %. Reverse polarity protection: reverse polarity protected. Short-circuit protection: pulsing. Voltage drop: ≤ 2.5 V DC. Operating current: ≤ 200 mA. Current consumption: < 10 mA. Operation indicator: 4-way LEDYellow: output. Standard conformity: . StandardsEN IEC 60947-5-2: . Standards: EN IEC 60947-5-2. UL approval: cULus Listed, General Purpose. CCC approval: CCC approval / marking not required for products rated ≤36 V. Ambient temperature: -25 ... 75 °C (-13 ... 167 °F). Connection type: Connector plug. Housing material: stainless steel V4A. Sensing face: stainless steel V4A. Degree of protection: IP65 / IP67 /. Connector: . ThreadingM12 x 1Number of pins4: . Threading: M12 x 1. Number of pins: 4. Dimensions: . Length60 mmDiameter18 mm: . Length: 60 mm. Diameter: 18 mm
Specifications
General specifications
| Switching function | Normally open (NO) |
| Output type | PNP |
| Rated operating distance | 70 mm sn |
| Installation | flush |
| Output polarity | DC |
| Actuating element | magnetic |
| Output type | 3-wire |
Nominal ratings
| Operating voltage | 10 ... 30 V DC UB |
| Switching frequency | 5000 Hz f |
| Hysteresis | 1 ... 10 % H |
| Reverse polarity protection | reverse polarity protected |
| Short-circuit protection | pulsing |
| Voltage drop | ≤ 2.5 V DC Ud |
| Operating current | ≤ 200 mA IL |
| Current consumption | < 10 mA |
Indicators/operating means
| Operation indicator | 4-way LEDYellow: output |
Compliance with standards and directives
| Standard conformity | |
| StandardsEN IEC 60947-5-2 | Standards |
| Standards | EN IEC 60947-5-2 |
Approvals and certificates
| UL approval | cULus Listed, General Purpose |
| CCC approval | CCC approval / marking not required for products rated ≤36 V |
Ambient conditions
| Ambient temperature | -25 ... 75 °C (-13 ... 167 °F) |
Mechanical specifications
| Connection type | Connector plug |
| Housing material | stainless steel V4A |
| Sensing face | stainless steel V4A |
| Degree of protection | IP65 / IP67 / |
| Connector | |
| ThreadingM12 x 1Number of pins4 | Threading |
| Threading | M12 x 1 |
| Number of pins | 4 |

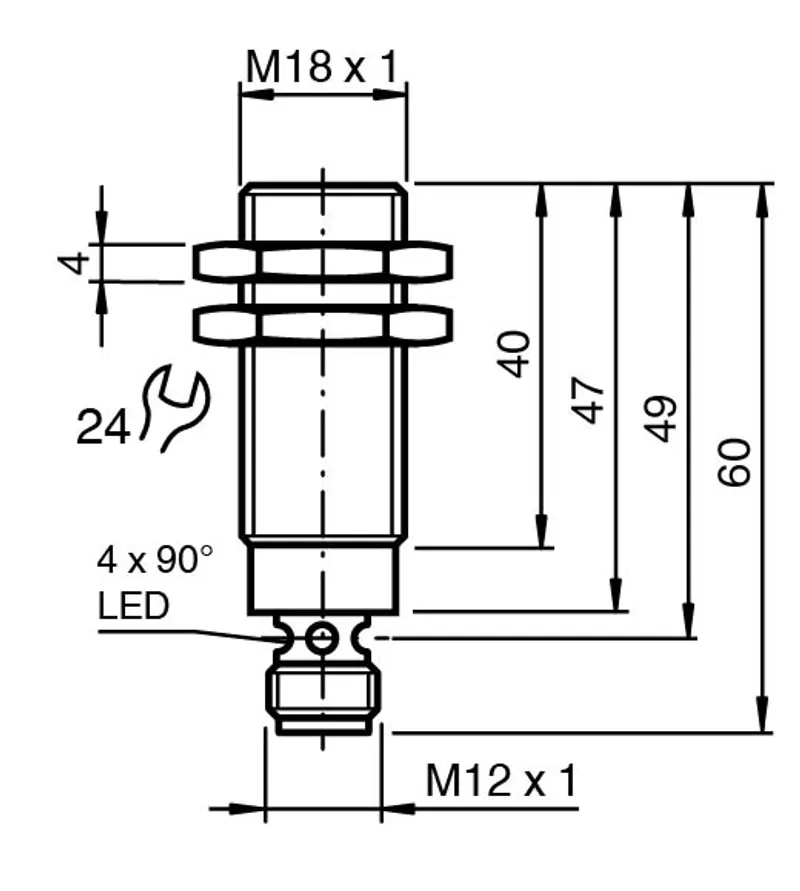

| Dimensions | |
| Length60 mmDiameter18 mm | Length |
| Length | 60 mm |
| Diameter | 18 mm |
