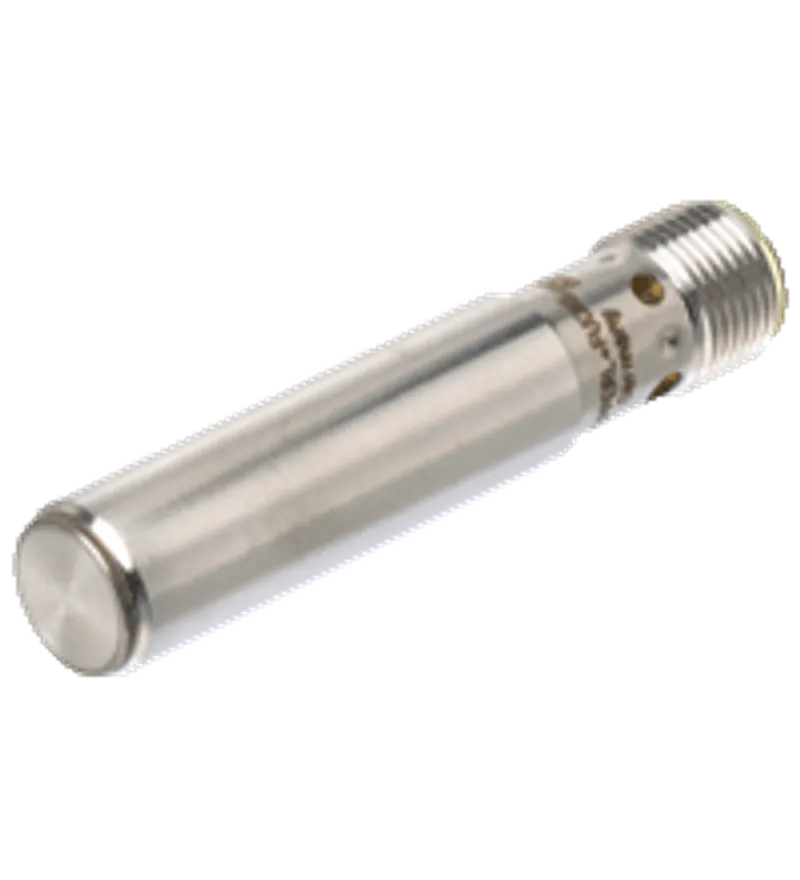

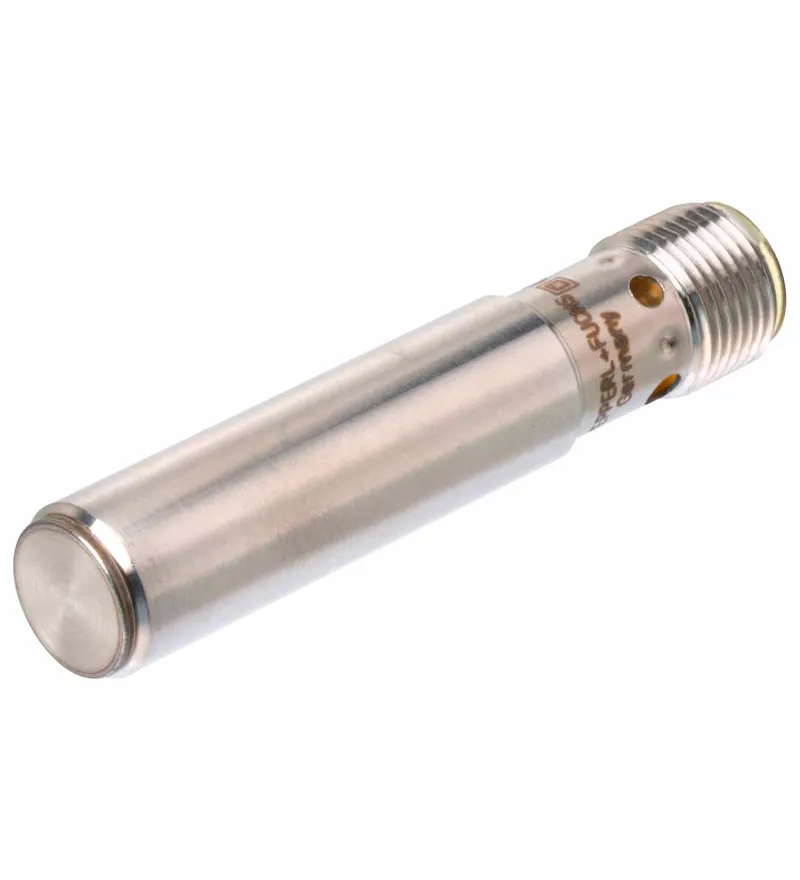

Pepperl Fuchs MMB60-12H50-E2-V1
Magnetic field sensor
- MPN
- MMB60-12H50-E2-V1
- Category
- Magnetic Field Sensors
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Pepperl Fuchs MMB60-12H50-E2-V1?
Stainless steel sensing face
3-wire DC
metal face, Switching function: Normally open (NO), Output type: PNP, Installation: flush, Output polarity: DC, Output type: 3-wire, Series: Cylindrical type, Threading: without, Operating voltage: 10 ... 30 V DC, Type of voltage: DC, Connection type: Connector plug, Housing material: stainless steel V4A, Degree of protection: IP65 / IP68 / IP69K /
Specifications
General specifications
| Order code (Pepperl+Fuchs part number) | 278607 |
| Switching function | Normally open (NO) |
| Output type | PNP |
| Rated operating distance | 60 mm sn |
| Installation | flush |
| Output polarity | DC |
| Actuating element | magnetic |
| Output type | 3-wire |
| Lifecycle | Active (current Pepperl+Fuchs product) |
Nominal ratings
| Operating voltage | 10 ... 30 V DC UB |
| Switching frequency | 5000 Hz f |
| Hysteresis | 1 ... 10 % H |
| Reverse polarity protection | reverse polarity protected |
| Short-circuit protection | pulsing |
| Voltage drop | ≤ 2.5 V DC Ud |
| Operating current | ≤ 100 mA IL |
| Current consumption | < 10 mA |
Indicators/operating means
| Operation indicator | 4-way LED Switching state indicator: yellow |
Compliance with standards and directives
| Standard conformity: Standards | EN IEC 60947-5-2 |
Approvals and certificates
| UL approval | cULus Listed |
| CCC approval | CCC approval / marking not required for products rated ≤36 V |
Ambient conditions
| Ambient temperature | 0 ... 100 °C (32 ... 212 °F) |
Mechanical specifications
| Connection type | Connector plug |
| Housing material | stainless steel V4A |
| Sensing face | stainless steel V4A |
| Degree of protection | IP65 / IP68 / IP69K / |
| Connector: Threading | M12 x 1 |
| Connector: Number of pins | 4 |

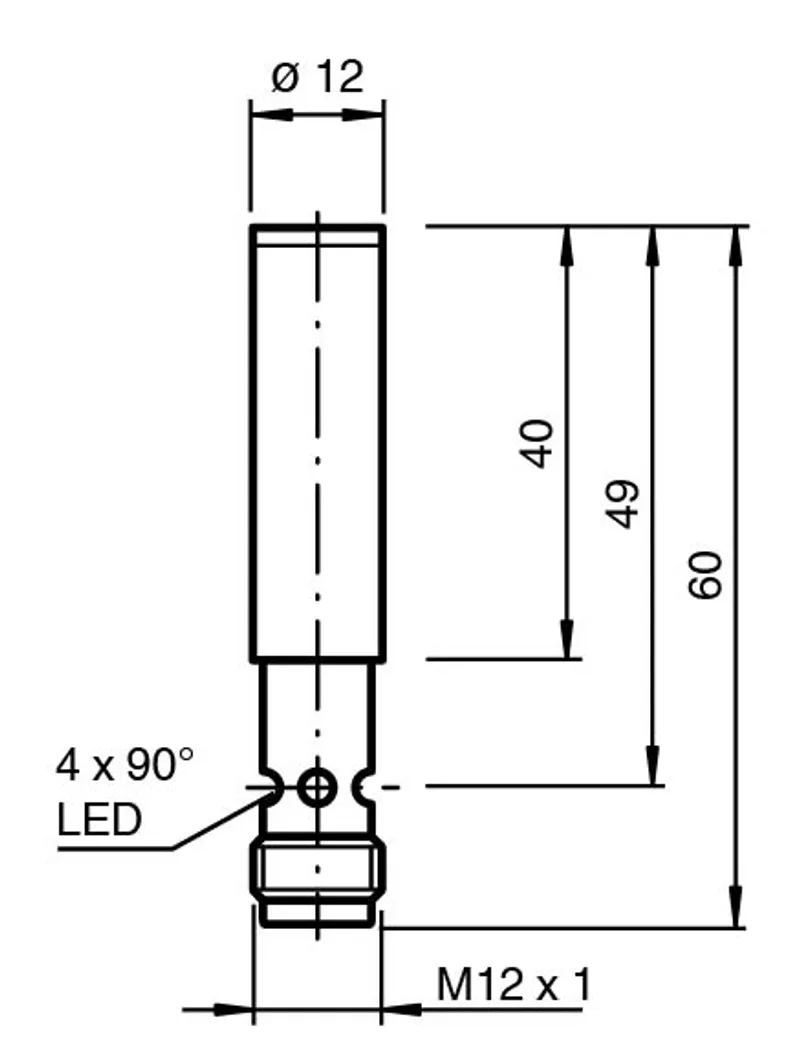

| Dimensions: Length | 60 mm |
| Dimensions: Diameter | 12 mm |
Downloads & documentation
Official documents from Pepperl Fuchs, downloaded directly from the manufacturer.
Data sheets & manuals
CAD & dimension drawings
MMB60-12H50-E2-V1: frequently asked questions
When can MMB60-12H50-E2-V1 be shipped?
MMB60-12H50-E2-V1 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up MMB60-12H50-E2-V1 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for MMB60-12H50-E2-V1 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for MMB60-12H50-E2-V1, subject to availability and destination.
