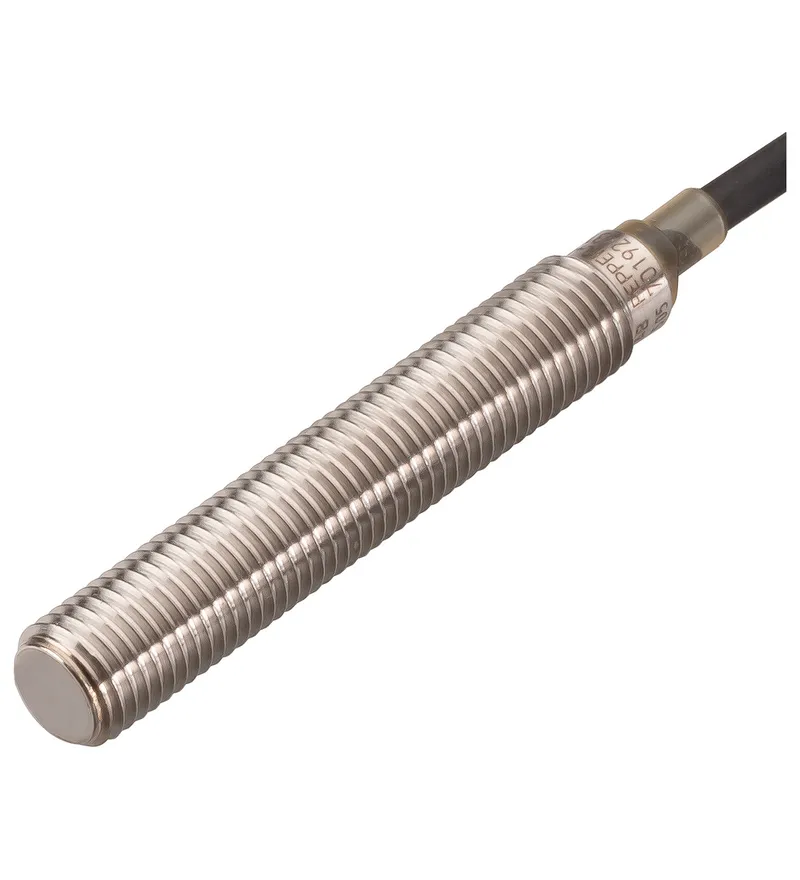

Pepperl Fuchs MMB60-8GH50-E2
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Magnetic Field Sensors |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can MMB60-8GH50-E2 be shipped?
MMB60-8GH50-E2 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up MMB60-8GH50-E2 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for MMB60-8GH50-E2 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for MMB60-8GH50-E2, subject to availability and destination.
Magnetic field sensor. Switching function: Normally open (NO), Output type: PNP, Installation: flush in non-magnetic metal, Output polarity: DC, Output type: 3-wire, Thread mold: M8, Construction type: Cylindrical, thread, Series: Cylindrical type, Threading: with, Type of voltage: DC, Connection type: cable, Housing material: Stainless steel 1.4404 / AISI 316L, Degree of protection: IP67. Switching function: Normally open (NO). Output type: PNP. Rated operating distance: 60 mm. Installation: flush in non-magnetic metal. Output polarity: DC. Actuating element: Magnet DM 60-31-15. Output type: 3-wire. Operating voltage: 10 ... 30 V. Switching frequency: 0 ... 5000 Hz. Hysteresis: 1 ... 10 %. Reverse polarity protection: reverse polarity protected. Short-circuit protection: pulsing. Voltage drop: ≤ 2.5 V. Operating current: ≤ 200 mA. Off-state current: max. 0.5 mA. No-load supply current: ≤ 10 mA. Usage category: DC-12 , DC-13. Time delay before availability: < 50 ms. Switching state indicator: LED, yellow. MTTFd: 2890 a. Diagnostic Coverage (DC): 0 %. Standard conformity: . StandardsEN IEC 60947-5-2: . Standards: EN IEC 60947-5-2. Protection class: III. Rated insulation voltageUi60 VRated impulse withstand voltageUimp1000 V (1.2/50 µs, 500 Ω, 0.5 J): Ui. Rated insulation voltage: 60 V. Rated impulse withstand voltage: 1000 V (1.2/50 µs, 500 Ω, 0.5 J). UL approval: . Ordinary LocationcULus Listed, General Purpose, Class 2 Power Source, Type 1 enclosureMaximum permissible ambient temperaturemax. 60 °C (max. 140 °F): . Ordinary Location: cULus Listed, General Purpose, Class 2 Power Source, Type 1 enclosure. Maximum permissible ambient temperature: max. 60 °C (max. 140 °F). CCC approval: CCC approval / marking not required for products rated ≤36 V. Ambient temperature: -25 ... 75 °C (-13 ... 167 °F). Storage temperature: -25 ... 75 °C (-13 ... 167 °F). Pollution degree: 3. Connection type: cable. Housing material: Stainless steel 1.4404 / AISI 316L. Degree of protection: IP67. Cable: . Cable diameter2.9 mmMaterialPUR Cable bushing: PEICore cross section0.14 mm2LengthL2 m: . Cable diameter: 2.9 mm. Material: PUR Cable bushing: PEI. Core cross section: 0.14 mm2. Length: 2 m. Dimensions: . Length50 mmDiameter8 mm: . Length: 50 mm. Diameter: 8 mm. Tightening torque: ≤ 5 Nm. Scope of delivery: Supplied with 2 nuts , brass
Specifications
General specifications
| Switching function | Normally open (NO) |
| Output type | PNP |
| Rated operating distance | 60 mm sn |
| Installation | flush in non-magnetic metal |
| Output polarity | DC |
| Actuating element | Magnet DM 60-31-15 |
| Output type | 3-wire |
Nominal ratings
| Operating voltage | 10 ... 30 V UB |
| Switching frequency | 0 ... 5000 Hz f |
| Hysteresis | 1 ... 10 % H |
| Reverse polarity protection | reverse polarity protected |
| Short-circuit protection | pulsing |
| Voltage drop | ≤ 2.5 V Ud |
| Operating current | ≤ 200 mA IL |
| Off-state current | max. 0.5 mA Ir |
| No-load supply current | ≤ 10 mA I0 |
| Usage category | DC-12 , DC-13 |
| Time delay before availability | < 50 ms tv |
| Switching state indicator | LED, yellow |
Safety-relevant product characteristics
| MTTFd | 2890 a |
| Diagnostic Coverage (DC) | 0 % |
Compliance with standards and directives
| Standard conformity | |
| StandardsEN IEC 60947-5-2 | Standards |
| Standards | EN IEC 60947-5-2 |
Approvals and certificates
| Protection class | III |
| Rated insulation voltageUi60 VRated impulse withstand voltageUimp1000 V (1.2/50 µs, 500 Ω, 0.5 J) | Ui Rated insulation voltage |
| Rated insulation voltage | 60 V Ui |
| Rated impulse withstand voltage | 1000 V (1.2/50 µs, 500 Ω, 0.5 J) Uimp |
| UL approval | |
| Ordinary LocationcULus Listed, General Purpose, Class 2 Power Source, Type 1 enclosureMaximum permissible ambient temperaturemax. 60 °C (max. 140 °F) | Ordinary Location |
| Ordinary Location | cULus Listed, General Purpose, Class 2 Power Source, Type 1 enclosure |
| Maximum permissible ambient temperature | max. 60 °C (max. 140 °F) |
| CCC approval | CCC approval / marking not required for products rated ≤36 V |
Ambient conditions
| Ambient temperature | -25 ... 75 °C (-13 ... 167 °F) |
| Storage temperature | -25 ... 75 °C (-13 ... 167 °F) |
| Pollution degree | 3 |
Mechanical specifications
| Connection type | cable |
| Housing material | Stainless steel 1.4404 / AISI 316L |
| Degree of protection | IP67 |
| Cable | |
| Cable diameter2.9 mmMaterialPUR Cable bushing: PEICore cross section0.14 mm2LengthL2 m | Cable diameter |
| Cable diameter | 2.9 mm |
| Material | PUR Cable bushing: PEI |
| Core cross section | 0.14 mm2 |
| Length | 2 m L |

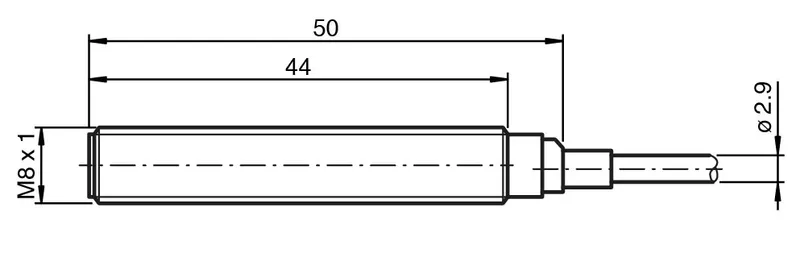

| Dimensions | |
| Length50 mmDiameter8 mm | Length |
| Length | 50 mm |
| Diameter | 8 mm |
| Tightening torque | ≤ 5 Nm |
General information
| Scope of delivery | Supplied with 2 nuts , brass |
