Pepperl Fuchs **-EDGE-*-*-*

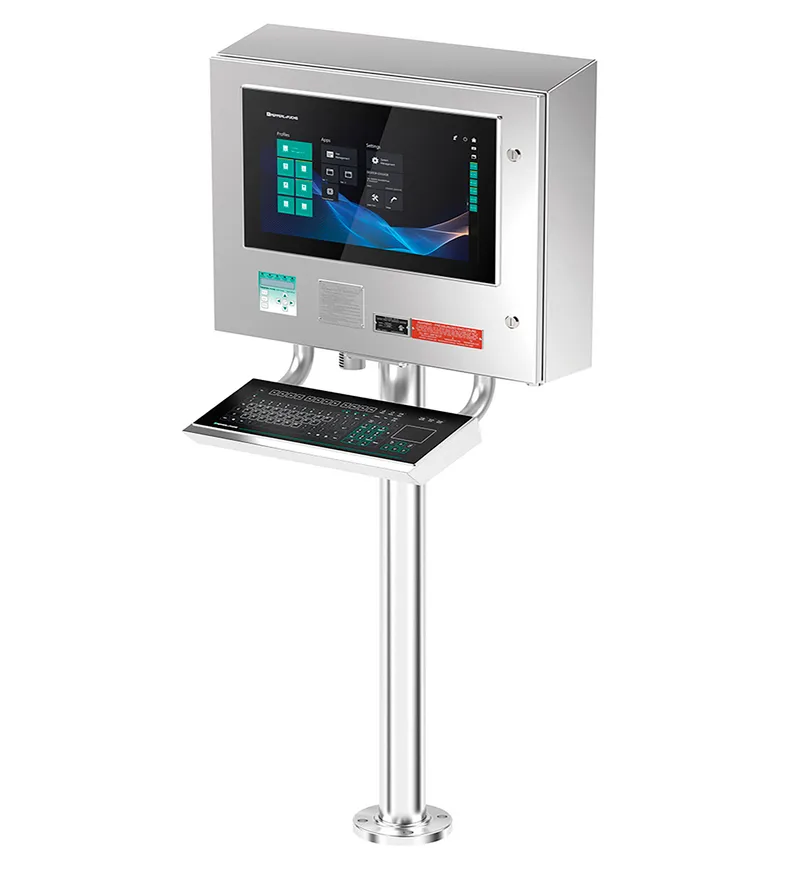

VisuNet FLX Edge Workstation. VisuNet FLX Edge Workstation, Class I, Division 1 solution with integrated 6000 Series Type X Purge & Pressurization system, Class I, II, Division 2 and General Purpose solution without Purge & Pressurization system, Fully modular design using VisuNet FLX HMI and EXTA4 keyboard options support field maintainability, Available as Windows® PC or Thin Client with RM Shell, ThinManager Ready, or IGEL OS, Watershed housing allows for proper drainage in outdoor or washdown environments. Type: Personal Computer and Remote Monitor. Processor: Intel® Core™ i5-7300UIntel® Celeron™ 3965U. RAM: 1x8 GB DDR4 (Thin Client or PC)1x16 GB DDR4 (PC). Mass storage: 64 GB M.2 SATA III (Thin Client)256 GB M.2 NVMe (PC)512 GB M.2 NVMe (PC). Connection: Terminals. Power consumption: 100 ... 240 VAC, 50 ... 60 Hz20 ... 30 VDC. Display: . TypeLiquid Crystal Display (LCD) with LED backlightScreen size22FC: 54.61 cm (21.5")19SC: 48.26 cm (19")Resolution22FC: 1920 x 1080 pixels (Full HD) Aspect Ratio (16:9)19SC: 1820 x 1024 pixels (SXGA) Aspect Ratio (5:4)Color depth24 bit (16.7 M) colorContrast ratioTypically22FC: 5000:119SC: 1000:1BrightnessConfigurable display options: 22FC: 300 cd/m219SC: 450 cd/m2Viewing angle22FC, 19SC: horizontal: 170°; vertical: 160°Life spanBack lamp life (22FC, 19SC): 50,000 hrs typical half life, at 25 °C (77 °F): . Type: Liquid Crystal Display (LCD) with LED backlight. Screen size: 22FC: 54.61 cm (21.5")19SC: 48.26 cm (19"). Resolution: 22FC: 1920 x 1080 pixels (Full HD) Aspect Ratio (16:9)19SC: 1820 x 1024 pixels (SXGA) Aspect Ratio (5:4). Color depth: 24 bit (16.7 M) color. Contrast ratio: Typically22FC: 5000:119SC: 1000:1. Brightness: Configurable display options: 22FC: 300 cd/m219SC: 450 cd/m2. Viewing angle: 22FC, 19SC: horizontal: 170°; vertical: 160°. Life span: Back lamp life (22FC, 19SC): 50,000 hrs typical half life, at 25 °C (77 °F). Input devices: . Touch screenDisplay Options:10-finger multi-touch, glove friendly22FC, 19SC: Capacitive touch, optical bondingKeyboardOptional: Foil keyboard with different pointing device options available (See EXTA4 datasheet.): . Touch screen: Display Options:10-finger multi-touch, glove friendly22FC, 19SC: Capacitive touch, optical bonding. Keyboard: Optional: Foil keyboard with different pointing device options available (See EXTA4 datasheet.). Interface type: 1 x DisplayPort 1.2 (DP++)1 x mini DisplayPort 1.2 (DP++ w/ mono locking screw)1 x Audio Line-out2 x USB Ex i ports prepared for Pepperl+Fuchs intrinsically safe keyboard2 x USB 3.1 Gen1 (5 Gbps) ports1 x USB 2.0 port2 x LAN ports (RJ45, 10/100/1000 Mbps)2 x RS232/422/485 (BIOS configurable) with 5V/12V to power peripherals (1 x DB9 male + 1 x RJ45). Operating system: PC: Microsoft® Windows® 10 IoT Enterprise 2021 LTSC (x64)Thin Client: Pepperl+Fuchs RM Shell 6 (based on Microsoft® Windows® 10 IoT) Enterprise 2021 LTSC (x64), ThinManager Ready or IGEL OS. Ambient temperature: -20 ... 50 °C (-4 ... 122 °F). Storage temperature: -20 ... 65 °C (-4 ... 149 °F). Relative humidity: max. relative humidity 93% at 40°C (non-condensing) according to EN60068-2-78. Degree of protection: Type 4X. Material: . Housing304 (UNS S30400) stainless steelSurfaceRa (max) = 64 μin: . Housing: 304 (UNS S30400) stainless steel. Surface: Ra (max) = 64 μin. Mass: approx. 52.16 kg (115 lbs) Empty housing ; Varies with configuration. Dimensions: 19" pedestal: 24.5" W. x 15.25" D x 70.5" H 19" wall-mount 24.5" W x 15.25" D x 34" H22" pedestal: 28.5" W x 15.25" D x 70.5" H22" wall-mount: 28.5" W x 15.25" D x 35" H. Mounting: Wall or pedestal mount. ETL approval: cETLus: 5003368. Approved forClass I, Division 1, Groups A, B, C, D with 6000 Series Type X PurgeClass I, II, Division 2, Groups A, B, C, D, F, and G without 6000 Series Type X Purge: . Approved for: Class I, Division 1, Groups A, B, C, D with 6000 Series Type X PurgeClass I, II, Division 2, Groups A, B, C, D, F, and G without 6000 Series Type X Purge

Specifications
