Pepperl Fuchs

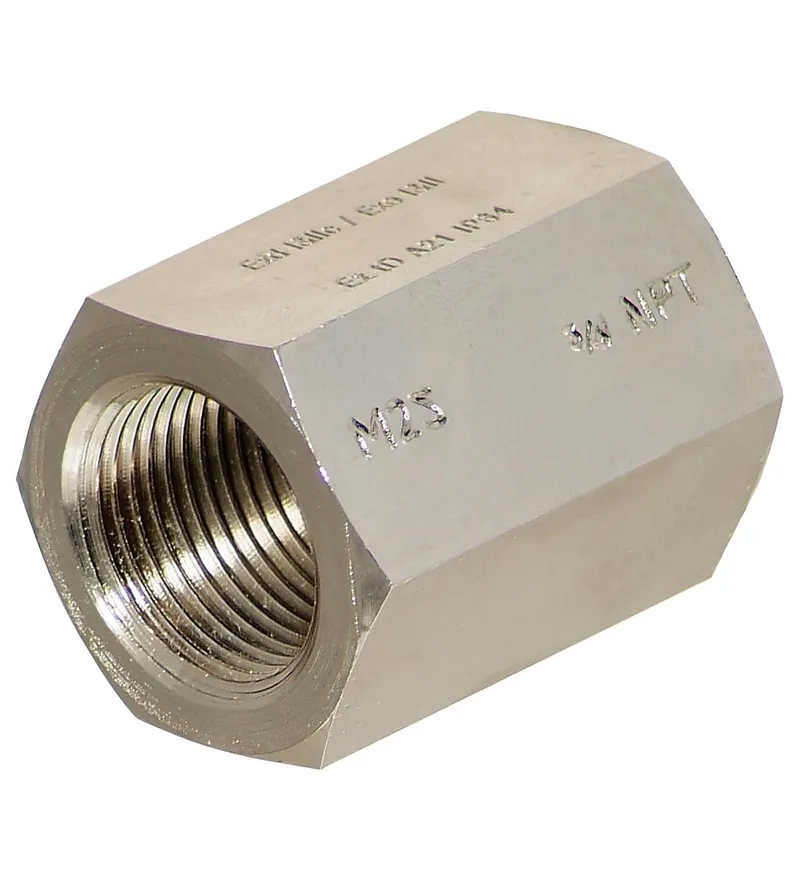

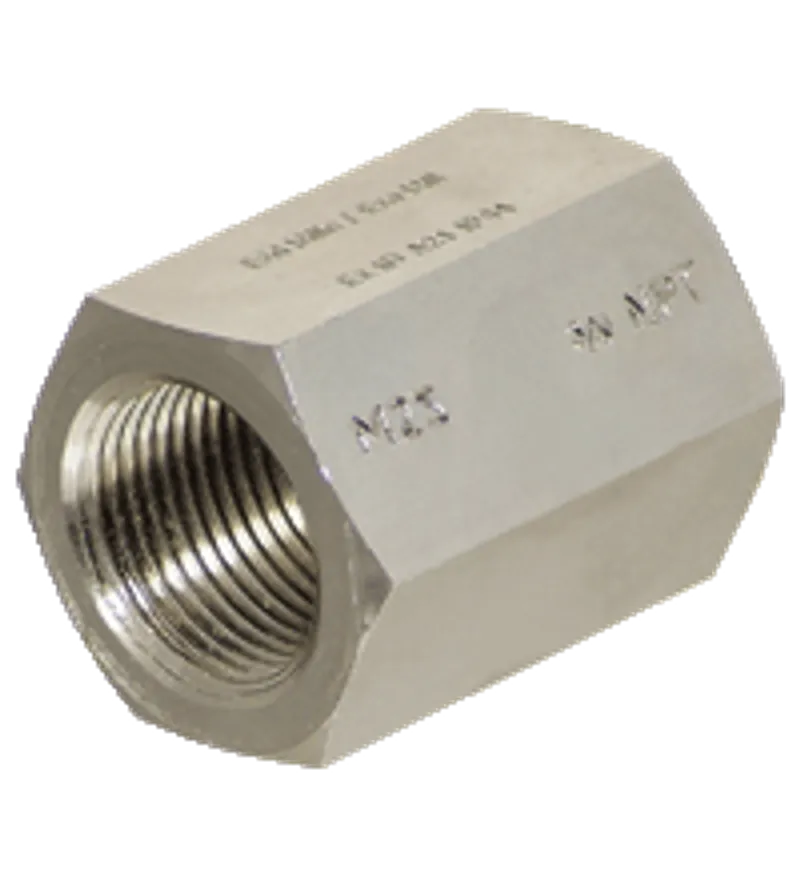

Pepperl Fuchs 6000-COUPLER-3/4 -M25

NPT to metric coupler

MPN: 6000-COUPLER-3/4 -M25
Category: Purge and Pressurization System (Type X)

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the Pepperl Fuchs 6000-COUPLER-3/4 -M25?

Converts 3/4" NPT male thread to M25 female thread

Exd, Exe fittings

Easy to add on any certified cable gland

Specifications

General specifications

Order code (Pepperl+Fuchs part number)	514460
Series	6000 Series
System	Type X Purge ; Ex pxb Purge
Lifecycle	Active (current Pepperl+Fuchs product)

Ambient conditions

Ambient temperature

-60 ... 200 °C (-76 ... 392 °F)

Mechanical specifications

Degree of protection	IP64
Material	brass, nickel-plated

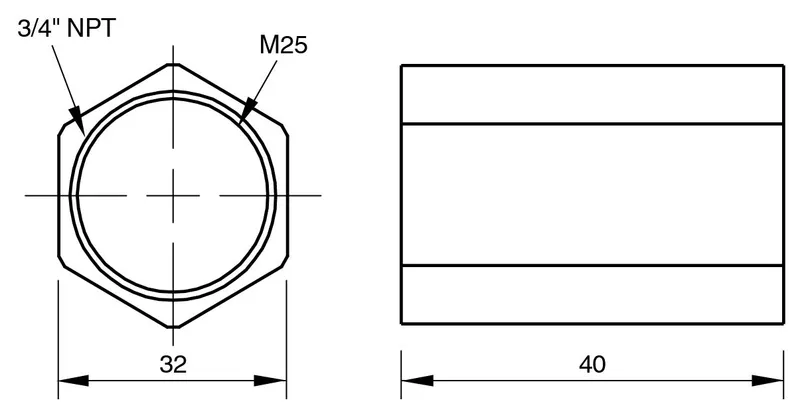

Dimensions	40 mm long x 32 mm across the flats

Data for application in connection with hazardous areas

EU-type examination certificate	Sira 10ATEX1225XSira 00ATEX1073UIECEx SIR 09.084UGOST TC C-GB.06.B00105INMETRO NCC 12.0764U
Marking	Exd I&IIc / Exe I&II / Ex tD A21

Downloads & documentation

Official documents from Pepperl Fuchs, downloaded directly from the manufacturer.

Data sheets & manuals

Datasheet 6000-COUPLER-3/4 -M25PDF

6000-COUPLER-3/4 -M25: frequently asked questions

When can 6000-COUPLER-3/4 -M25 be shipped?

6000-COUPLER-3/4 -M25 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 6000-COUPLER-3/4 -M25 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 6000-COUPLER-3/4 -M25 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 6000-COUPLER-3/4 -M25, subject to availability and destination.
