Pepperl Fuchs 6000-COUPLER-3/4-M20

Name: Pepperl Fuchs 6000-COUPLER-3/4-M20
Brand: Pepperl Fuchs
SKU: 6000-COUPLER-3/4-M20

MPN: 6000-COUPLER-3/4-M20 · Brand: Pepperl Fuchs

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Purge and Pressurization System (Type X)
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can 6000-COUPLER-3/4-M20 be shipped?

6000-COUPLER-3/4-M20 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 6000-COUPLER-3/4-M20 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 6000-COUPLER-3/4-M20 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 6000-COUPLER-3/4-M20, subject to availability and destination.

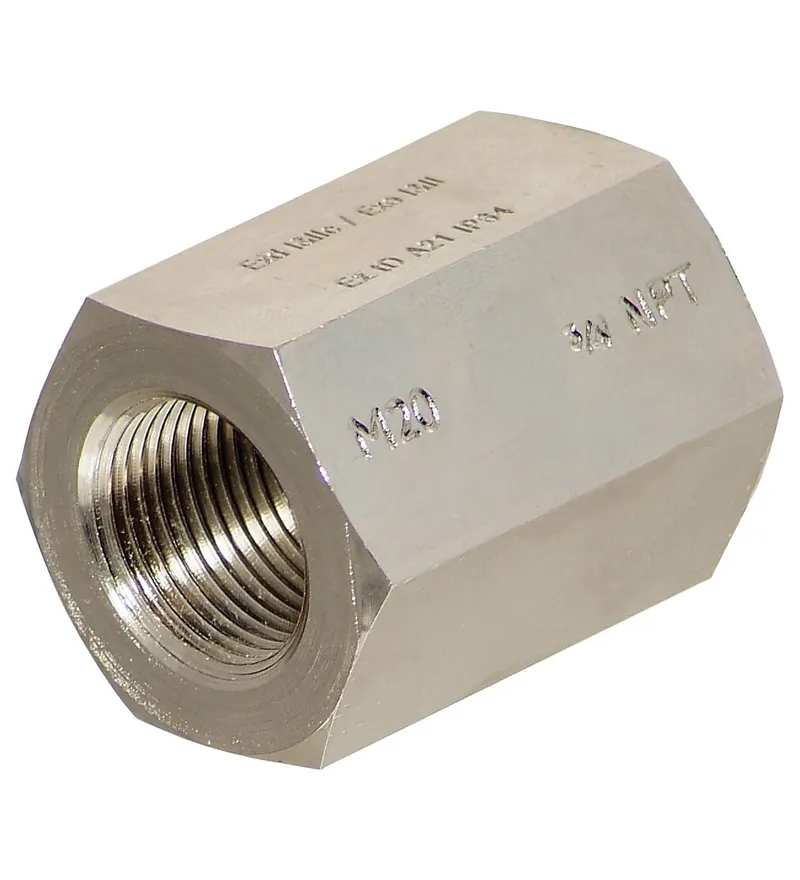

6000 Series coupler (NPT to metric). Series: 6000 Series. System: Type X Purge ; Ex pxb Purge. Ambient temperature: -60 ... 200 °C (-76 ... 392 °F). Degree of protection: IP64. Material: brass, nickel-plated. Dimensions: 40 mm long x 32 mm across the flats. EU-type examination certificate: Sira 10ATEX1225XSira 00ATEX1073UIECEx SIR 09.084UGOST TC C-GB.06.B00105INMETRO NCC 12.0764U. MarkingExd I&IIc / Exe I&II / Ex tD A21: . Marking: Exd I&IIc / Exe I&II / Ex tD A21

Specifications

General specifications

Series	6000 Series
System	Type X Purge ; Ex pxb Purge

Ambient conditions

Ambient temperature

-60 ... 200 °C (-76 ... 392 °F)

Mechanical specifications

Degree of protection	IP64
Material	brass, nickel-plated

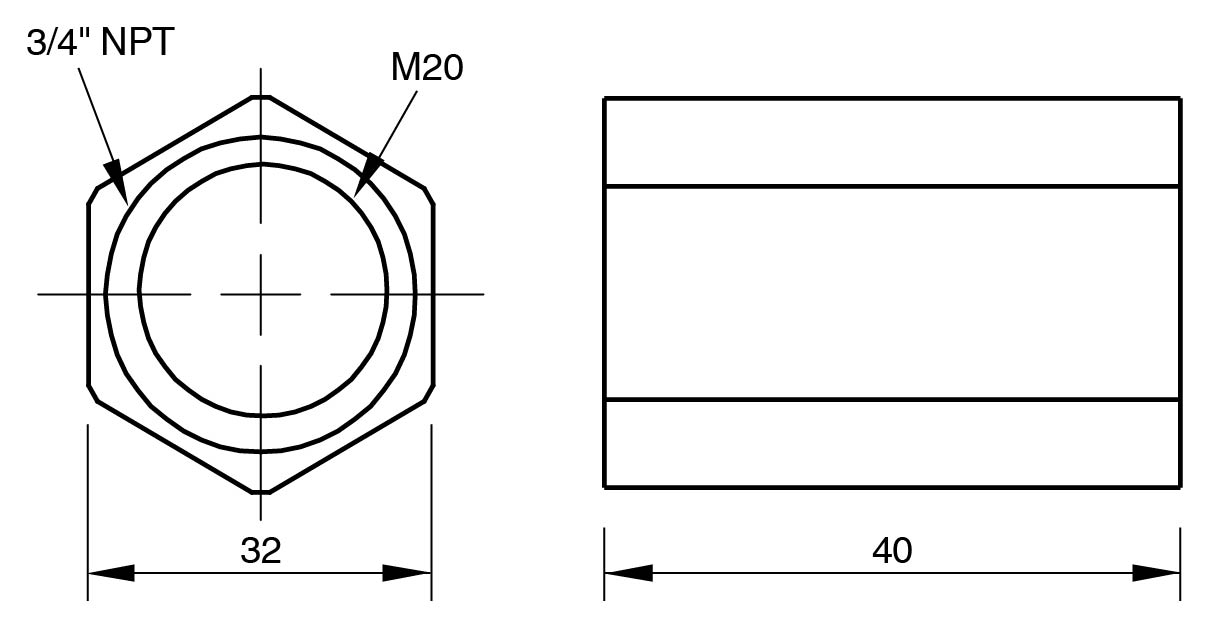

Dimensions	40 mm long x 32 mm across the flats

Data for application in connection with hazardous areas

EU-type examination certificate	Sira 10ATEX1225XSira 00ATEX1073UIECEx SIR 09.084UGOST TC C-GB.06.B00105INMETRO NCC 12.0764U
MarkingExd I&IIc / Exe I&II / Ex tD A21	Marking
Marking	Exd I&IIc / Exe I&II / Ex tD A21
