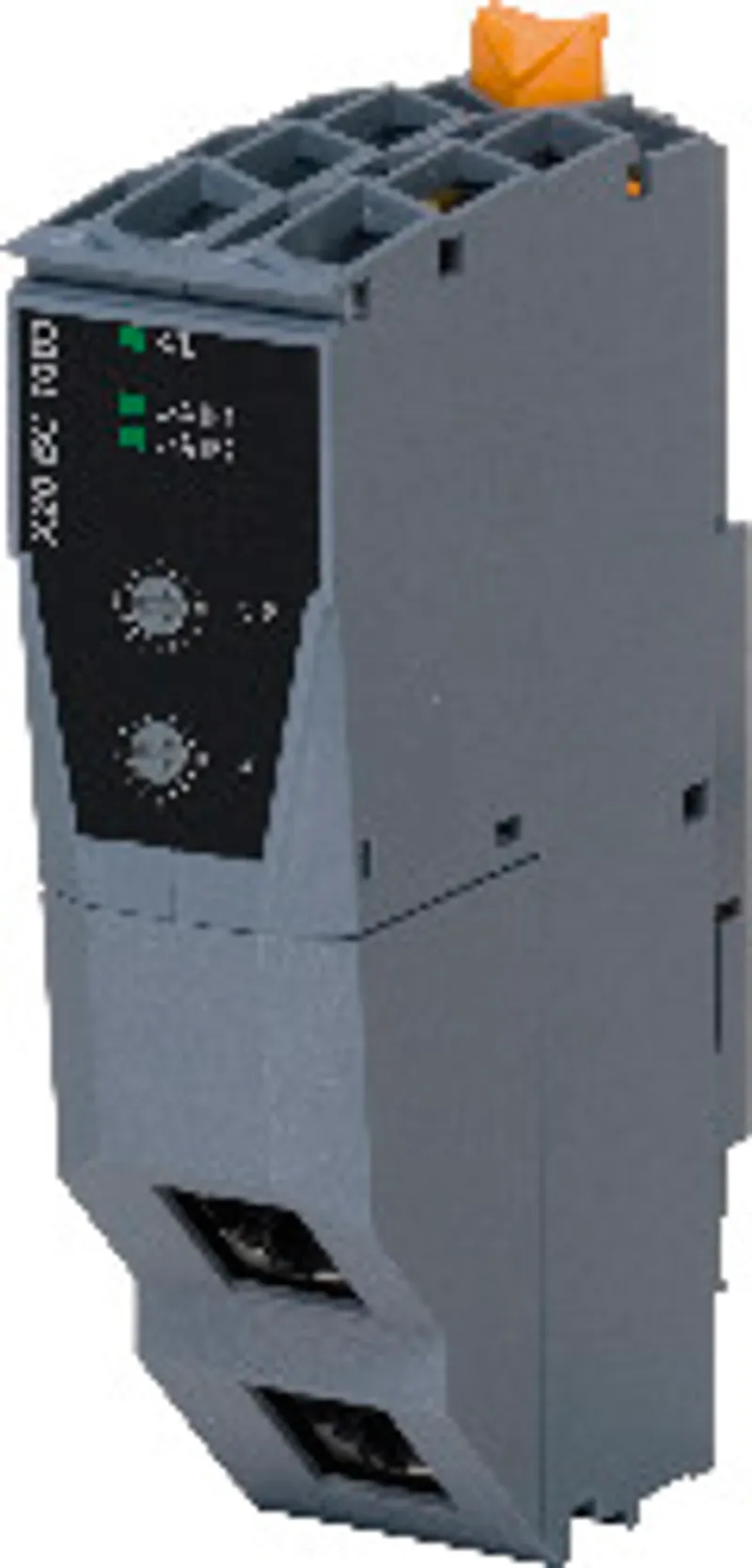

B&R X20BC1083 – Bus controller, POWERLINK (V1/V2) controlled node with up…
MPN: X20BC1083 · Brand: B&R
Price on request
Request a Quote
12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
Quick facts
| Availability | Confirmed on request |
| Category | Expandable bus controllers |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Datasheet | Manufacturer datasheet ↗ |
Shipping & availability
When can X20BC1083 be shipped?
X20BC1083 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up X20BC1083 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for X20BC1083 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for X20BC1083, subject to availability and destination.
• POWERLINK
• I/O configuration and firmware update via the fieldbus
• Integrated hub for efficient cabling
• Up to 2 slots for interface modules
The bus controller makes it possible to connect X2X Link I/O nodes to POWERLINK. It is also possible to operate the X2X Link cycle synchronously 1:1 or synchronous to POWERLINK using a prescaler.
POWERLINK is a standard protocol for Fast Ethernet equipped with hard real-time characteristics. The POWERLINK Standardization Group (EPSG) ensures that the standard remains open and is continually developed:: www.ethernet-powerlink.org .
The bus modules expanded to the left allow connection of up to 2 interface modules in addition to the bus controller.
Accessories
Required accessories (order separately)
| X20PS9402 | System modules for bus controllers — Supply for the bus controller, X2X Link and internal I/O supply; Low-cost supply module for small X20 system; Feed and bus controller / X2X… |
| X20PS9400 | System modules for bus controllers — Supply for the bus controller, X2X Link and internal I/O supply; Feed and bus controller / X2X Link supply electrically isolated; Redundanc… |
| X20BB82 | System modules for expandable bus controllers — Bus base with 2 expansion slots The bus module has 2 expansion slots. The following modules are used on this module: Base module (BC, HB, e… |
| X20BB81 | System modules for expandable bus controllers — Bus base with one expansion slot The bus module has an expansion slot. The following modules are used on this module: Base module (BC, HB,… |
| X20TB12 | Terminal blocks — Tool-free wiring with push-in technology; Simple wire release using lever; Ability to label each terminal; Plain text labeling also possibl… |
Optional accessories (14)
| X20IF1091-1 | System modules for expandable bus controllers — X2X Link connection The interface module is operated in the X20BC1083 expandable bus controller. It is equipped with an X2X Link master int… |
| X20IF10G3-1 | X20 interface module communication — EtherCAT slave; Integrated switch for efficient cabling The interface module is equipped with an EtherCAT interface. This allows the B&R sy… |
| X20IF10G1-1 | X20 interface module communication — EtherCAT master; Integrated switch for efficient cabling The interface module is equipped with an EtherCAT master interface. This allows th… |
| X20IF10E3-1 | X20 interface module communication — PROFINET IO device; Integrated switch for efficient cabling The interface module is equipped with a PROFINET IO device interface. This allo… |
| X20IF10E1-1 | X20 interface module communication — PROFINET IO controller; Integrated switch for efficient cabling The interface module is equipped with a PROFINET IO controller interface. T… |
| X20IF10D3-1 | X20 interface module communication — EtherNet/IP adapter (slave); Integrated switch for efficient cabling The interface module is equipped with an EtherNet/IP adapter interface… |
| X20IF10D1-1 | X20 interface module communication — EtherNet/IP scanner (master); Integrated switch for efficient wiring The interface module is equipped with an EtherNet/IP scanner interface… |
| X20IF10A1-1 | X20 interface module communication — ASi interface master; Electrically isolated; 4-pin bus connector The interface module is equipped with an ASi master interface. This allows… |
| X20IF1063-1 | X20 interface module communication — PROFIBUS DP V1 slave The interface module is equipped with a PROFIBUS DP V1 interface. This allows the B&R system (I/O modules, POWERLINK,… |
| X20IF1061-1 | X20 interface module communication — PROFIBUS DP V1 master The interface module is equipped with a PROFIBUS DP V1 interface. This allows third-party components to be integrated… |
| X20IF1053-1 | X20 interface module communication — DeviceNet slave (adapter); Integrated terminating resistor The interface module is equipped with a DeviceNet interface. This allows the B&R… |
| X20IF1051-1 | X20 interface module communication — DeviceNet scanner; Integrated terminating resistor The interface module is equipped with a DeviceNet scanner interface. This allows third-p… |
| X20IF1043-1 | X20 interface module communication — CANopen slave; Integrated terminating resistor The interface module is equipped with a CANopen (slave) interface. This allows the B&R syste… |
| X20IF1041-1 | X20 interface module communication — CANopen master; Integrated terminating resistor The interface module is equipped with a CANopen interface. This allows third-party componen… |
Specifications
Short description
| Bus controller | POWERLINK (V1/V2) controlled node with up to 2 slots for interface modules |
General information
| Diagnostics – Module status | Yes, using LED status indicator and software |
| Diagnostics – Bus function | Yes, using LED status indicator and software |
| Support – Dynamic node allocation (DNA) | Yes |
| Power consumption – Bus | 2 W |
| Certifications – CE | Yes |
| Certifications – UKCA | Yes |
| Certifications – CRA (Cyber Resilience Act) | In preparation |
| Certifications – ATEX | Zone 2, II 3G Ex nA nC IIA T5 Gc; IP20, Ta (see X20 user's manual); FTZÚ 09 ATEX 0083X |
| Certifications – UL | cULus E115267; Industrial control equipment |
| Certifications – HazLoc | cCSAus 244665; Process control equipment; for hazardous locations; Class I, Division 2, Groups ABCD, T5 |
| Certifications – DNV | Temperature: B (0 to 55°C); Humidity: B (up to 100%); Vibration: B (4 g); EMC: B (bridge and open deck) |
| Certifications – CCS | Yes |
| Certifications – LR | ENV1 |
| Certifications – KR | Yes |
| Certifications – ABS | Yes |
| Certifications – BV | EC33B ; Temperature: 5 - 55°C; Vibration: 4 g; EMC: Bridge and open deck |
| Certifications – KC | Yes |
| B&R ID code | 0x2268 |
| Status indicators | Module status, bus function |
| Additional power dissipation caused by actuators (resistive) [W] | - |
Interfaces
| Transfer – Physical layer | 100BASE-TX |
| Transfer – Half-duplex | Yes |
| Transfer – Full-duplex | No |
| Transfer – Autonegotiation | Yes |
| Transfer – Auto-MDI/MDIX | Yes |
| Min. cycle time " data-placement="top" data-html="true" data-container="body" data-content="The minimum cycle time specifies how far the bus cycle can be reduced without communication errors occurring."> – Fieldbus | 200 μs |
| Min. cycle time " data-placement="top" data-html="true" data-container="body" data-content="The minimum cycle time specifies how far the bus cycle can be reduced without communication errors occurring."> – X2X Link | 200 μs |
| Cyclic data – Input data | Max. 1488 bytes |
| Cyclic data – Output data | Max. 1488 bytes |
| Fieldbus | POWERLINK (V1/V2) controlled node |
| Type | Type 2 " data-placement="top" data-html="true" data-container="body" data-content="For additional information, see section "Communication / POWERLINK / General information / Hardware - CN" in Automation Help."> |
| Variant | 2x shielded RJ45 (hub) |
| Line length | Max. 100 m between 2 stations (segment length) |
| Transfer rate | 100 Mbit/s |
| Hub propagation delay | 0.96 to 1 µs |
| Synchronization between bus systems possible | Yes |
Electrical properties
| Electrical isolation | POWERLINK isolated from bus and I/O |
Operating conditions
| Mounting orientation – Horizontal | Yes |
| Mounting orientation – Vertical | Yes |
| Installation elevation above sea level – 0 to 2000 m | No limitation |
| Installation elevation above sea level – >2000 m | Reduction of ambient temperature by 0.5°C per 100 m |
| Degree of protection per EN 60529 | IP20 |
Ambient conditions
| Temperature – Horizontal mounting orientation | -25 to 60°C |
| Temperature – Vertical mounting orientation | -25 to 50°C |
| Temperature – Derating | - |
| Temperature – Storage | -40 to 85°C |
| Temperature – Transport | -40 to 85°C |
| Relative humidity – Operation | 5 to 95%, non-condensing |
| Relative humidity – Storage | 5 to 95%, non-condensing |
| Relative humidity – Transport | 5 to 95%, non-condensing |
Mechanical properties
| Pitch " data-placement="top" data-html="true" data-container="body" data-content="Pitch is based on the width of bus base X20BB81 or X20BB82. Up to 2 interface modules and 1 power supply module X20PS9400 or X20PS9402 are always required for the bus controller."> – X20BB81 | 62.5 +0.2 mm |
| Pitch " data-placement="top" data-html="true" data-container="body" data-content="Pitch is based on the width of bus base X20BB81 or X20BB82. Up to 2 interface modules and 1 power supply module X20PS9400 or X20PS9402 are always required for the bus controller."> – X20BB82 | 87.5 +0.2 mm |
| Note | Order 1x terminal block X20TB12 separately. ; Order 1x power supply module X20PS9400 or X20PS9402 separately. ; Order 1x bus base X20BB81 or X20BB82 separately. |
Downloads & documentation
Official documents from B&R, downloaded directly from the manufacturer.
Data sheets & manuals
| Data sheet X20(c)BC1083 | PDF · 1 MB · 2.61 (08/05/2025) - EN |
| POWERLINK Bus Controller User's Manual | PDF · 3 MB · 2.67 (05/07/2026) - EN |
| X20 Package leaflet ATEX/CSA | PDF · 2 MB · 1.4 (09/17/2024) |
| X20 System User´s Manual | PDF · 50 MB · 4.40 (03/10/2026) - EN |
CAD & dimension drawings
| 3D File STEP/DXF X20BC and X20IF Module | ZIP · 1 MB · 2.3 (09/19/2019) |
Certificates (15)
12-month warrantyon all new stock
3-month warrantyon used & refurbished parts
30-day returnsno restocking fee on unused parts
Global shippingFast, tracked delivery worldwide
More B&R parts
Available on requestB&R X20BC008U – Bus controller, OPC UA serverMPN: X20BC008U · B&R
Price on request
Request a quote
Available on requestB&R X20BC00E3 – Bus controller, PROFINET IO slaveMPN: X20BC00E3 · B&R
Price on request
Request a quote
Available on requestB&R X20BC00G3 – Bus controller, etherCAT slaveMPN: X20BC00G3 · B&R
Price on request
Request a quote
Available on requestB&R X20BC0143-10 – Bus controller, CANopen slaveMPN: X20BC0143-10 · B&R
Price on request
Request a quote
Available on requestB&R X20BC8083 – Bus controller, POWERLINK (V1/V2) controlled node with up…MPN: X20BC8083 · B&R
Price on request
Request a quote
Available on requestB&R X20BC8084 – Bus controller, POWERLINK (V1/V2) controlled node with…MPN: X20BC8084 · B&R
Price on request
Request a quote

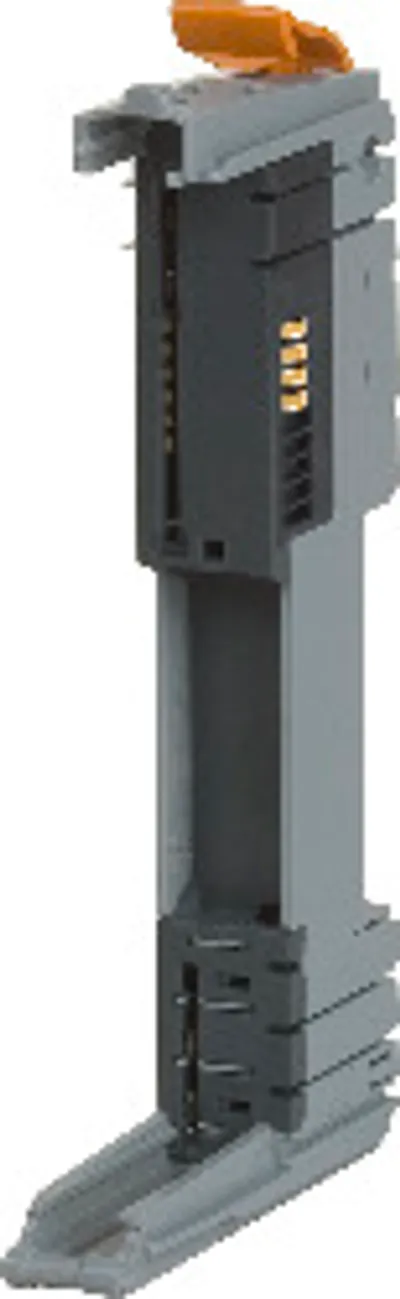

Available on requestB&R X20BM01 – Bus module, power supply bus module, 24 VDC keyedMPN: X20BM01 · B&R
Price on request
Request a quote

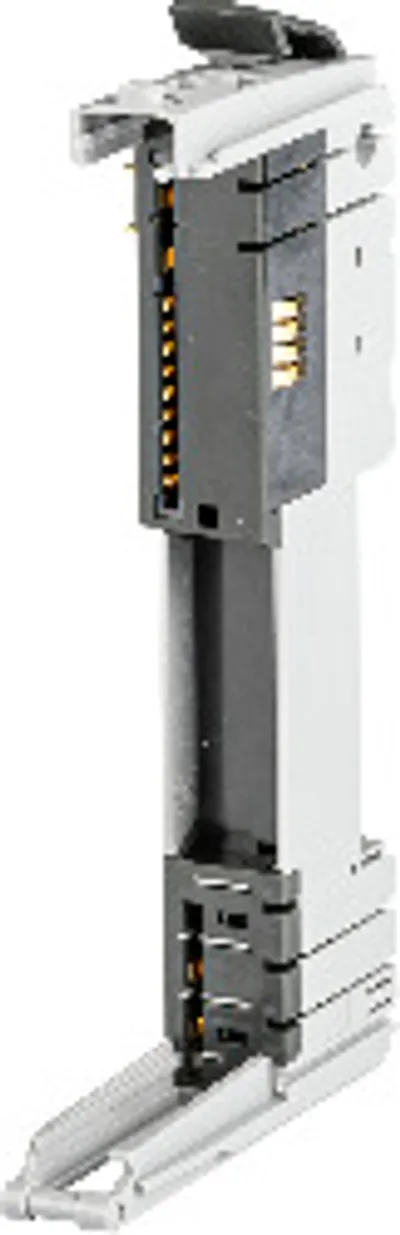

Available on requestB&R X20BM01X – Bus module, X2X+ power supply bus moduleMPN: X20BM01X · B&R
